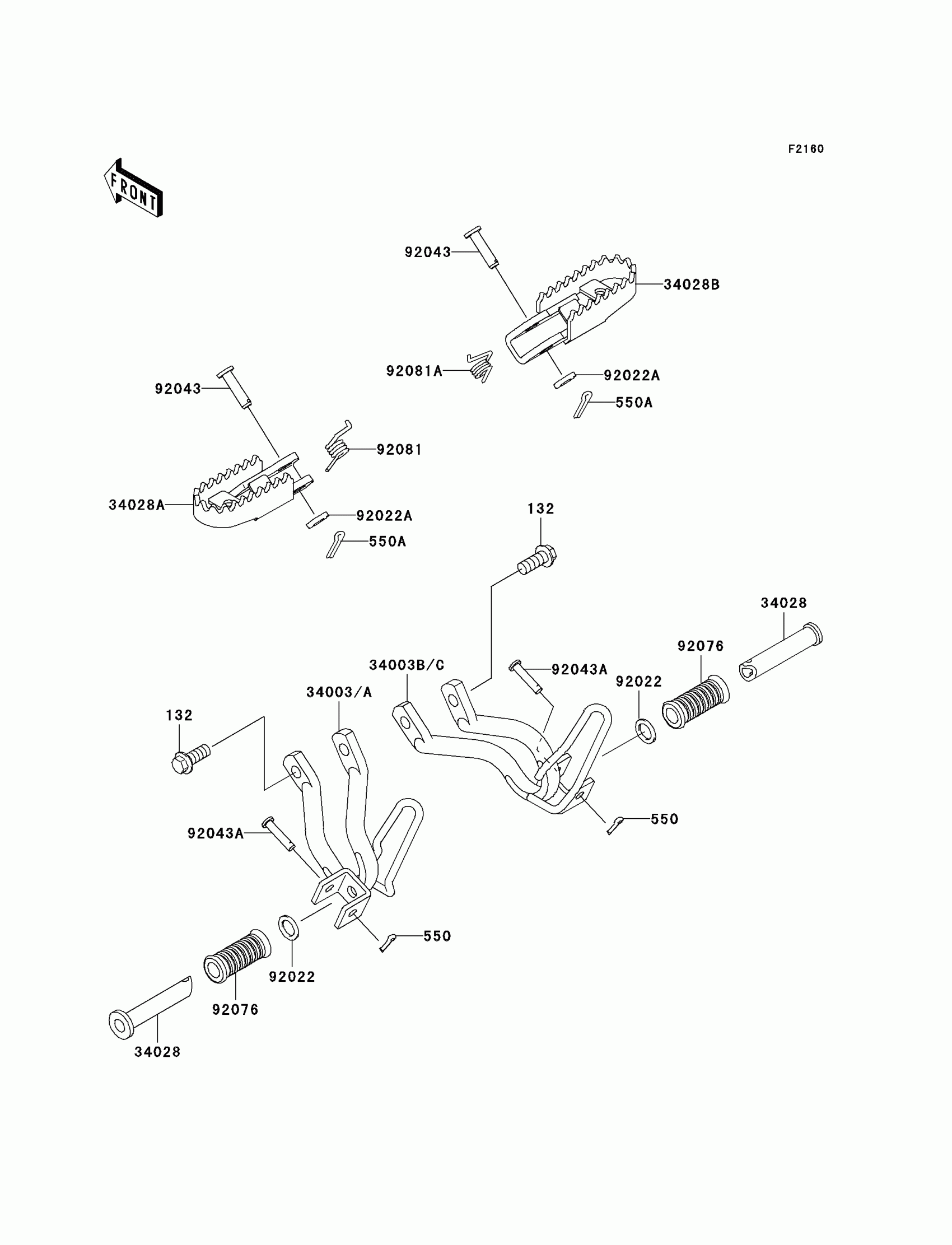

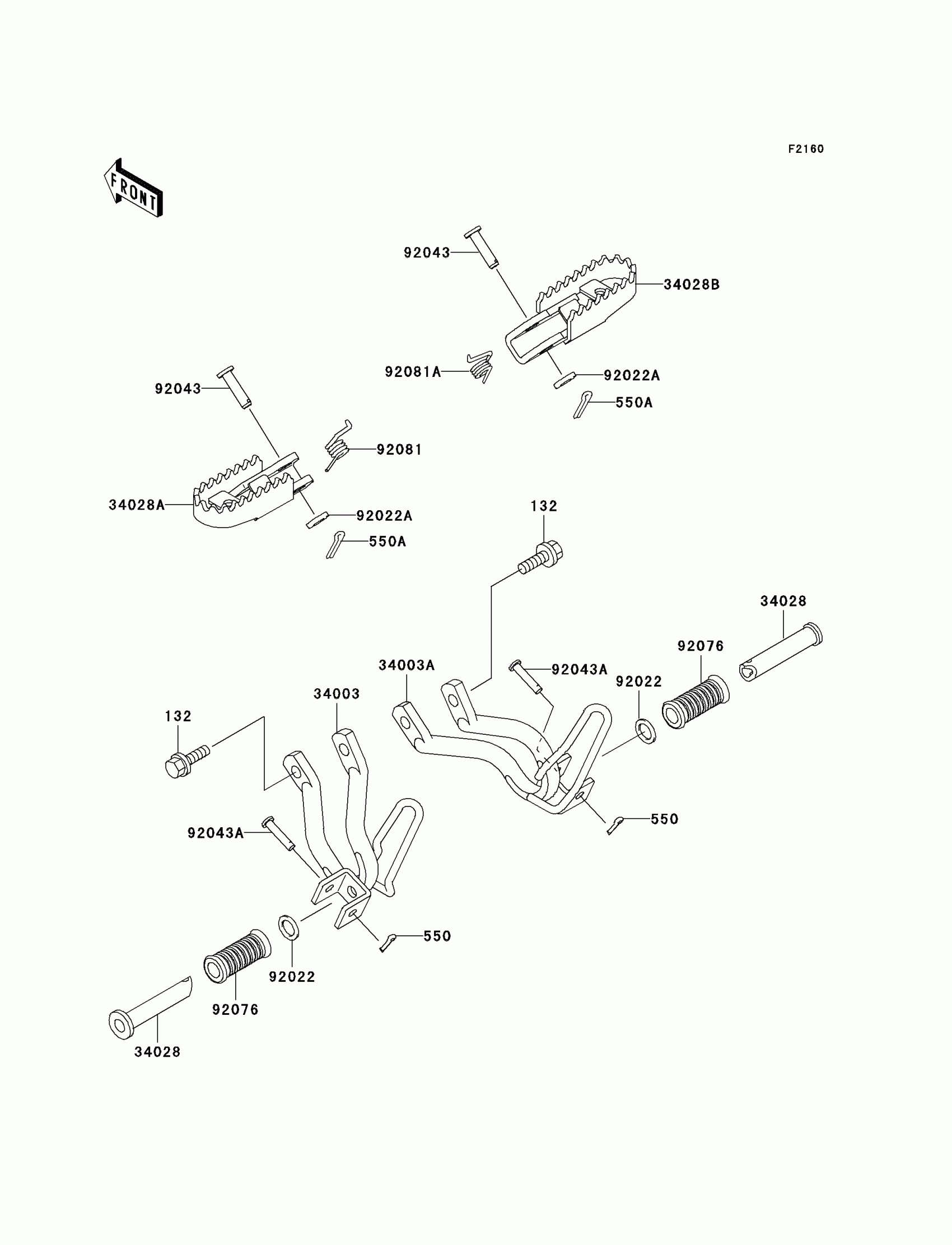

Kawasaki Super Sherpa (Canada Only) Footrests Diagram

Description

Price

132

BOLT-FLANGED-SMALL,8X20

132BB0820

$4.12

550

PIN-COTTER,2.0X15

550AA2015

$1.12

550A

PIN-COTTER,2.0X18

550AA2018

$2.51

34003A

HOLDER-STEP,RR,LH,F.S.BLACK

34003-1460-18R

$64.22

34003C

HOLDER-STEP,RR,RH,F.S.BLACK

34003-1461-18R

$64.22

34028

STEP,RR

34028-009

$26.11

34028A

STEP,FR,LH

34028-1431

$47.46

34028B

STEP,FR,RH

34028-1432

$47.46

92022

WASHER,20X30X2.3

92022-1568

$4.31

92022A

WASHER,10.5X20X1

92022-239

$3.92

92043

PIN,10X35

92043-1217

$11.39

92043A

PIN,6X28

92043-1464

$8.10

92076

DAMPER

92076-020

$24.87

92081

SPRING,STEP,LH

92081-1606

$9.82

92081A

SPRING,STEP,RH

92081-1607

$9.82
