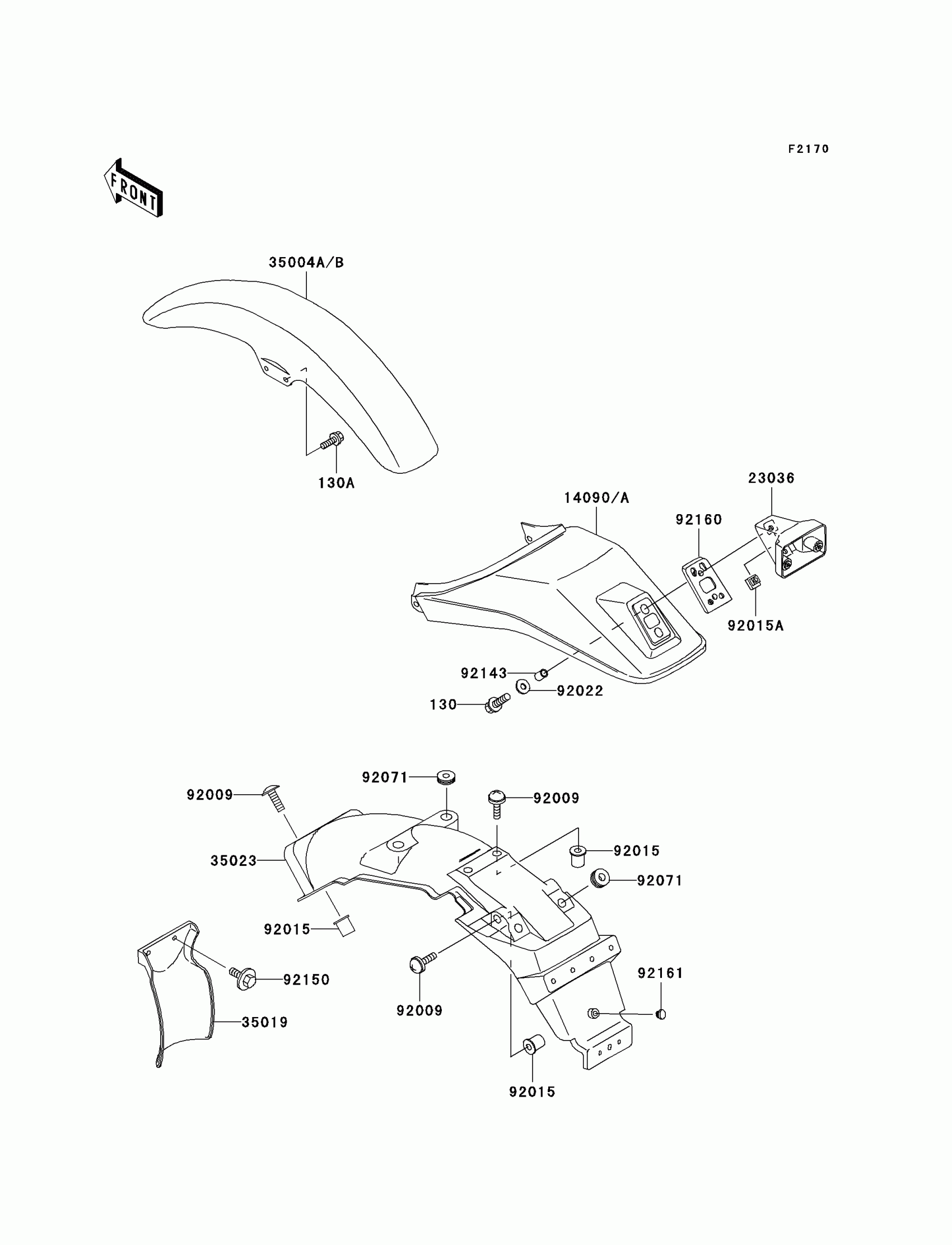

Kawasaki Super Sherpa (Canada Only) Fenders Diagram

Description

Price

130

BOLT-FLANGED,5X20

130BA0520

$0.92

130A

BOLT-FLANGED,6X16

130BA0616

$1.20

14090

COVER,SEAT,EBONY

14090-1796-6C

$113.22

23036

BRACKET-TAIL LAMP

23036-1146

$67.75

35004

FENDER-FRONT,LOW TYPE,EBONY

35004-1365-6C

$117.62

35019

FLAP,RR FENDER,FR

35019-1345

$26.45

35023

FENDER-REAR

35023-1530

$107.83

92009

SCREW,6X18

92009-1663

Unavailable

92015

NUT

92015-1700

$8.58

92015A

NUT,5MM

92015-1798

$6.57

92022

WASHER,5.2X16X1.2

92022-263

$1.66

92071

GROMMET

92071-056

$4.26

92143

COLLAR,5.6X8X9.3

92143-1984

$4.13

92153

BOLT,6X16

92153-0863

$2.15

92160

DAMPER,TAIL LAMP BRACKET

92160-1826

$9.43

92161

DAMPER

92161-1084

$2.67
