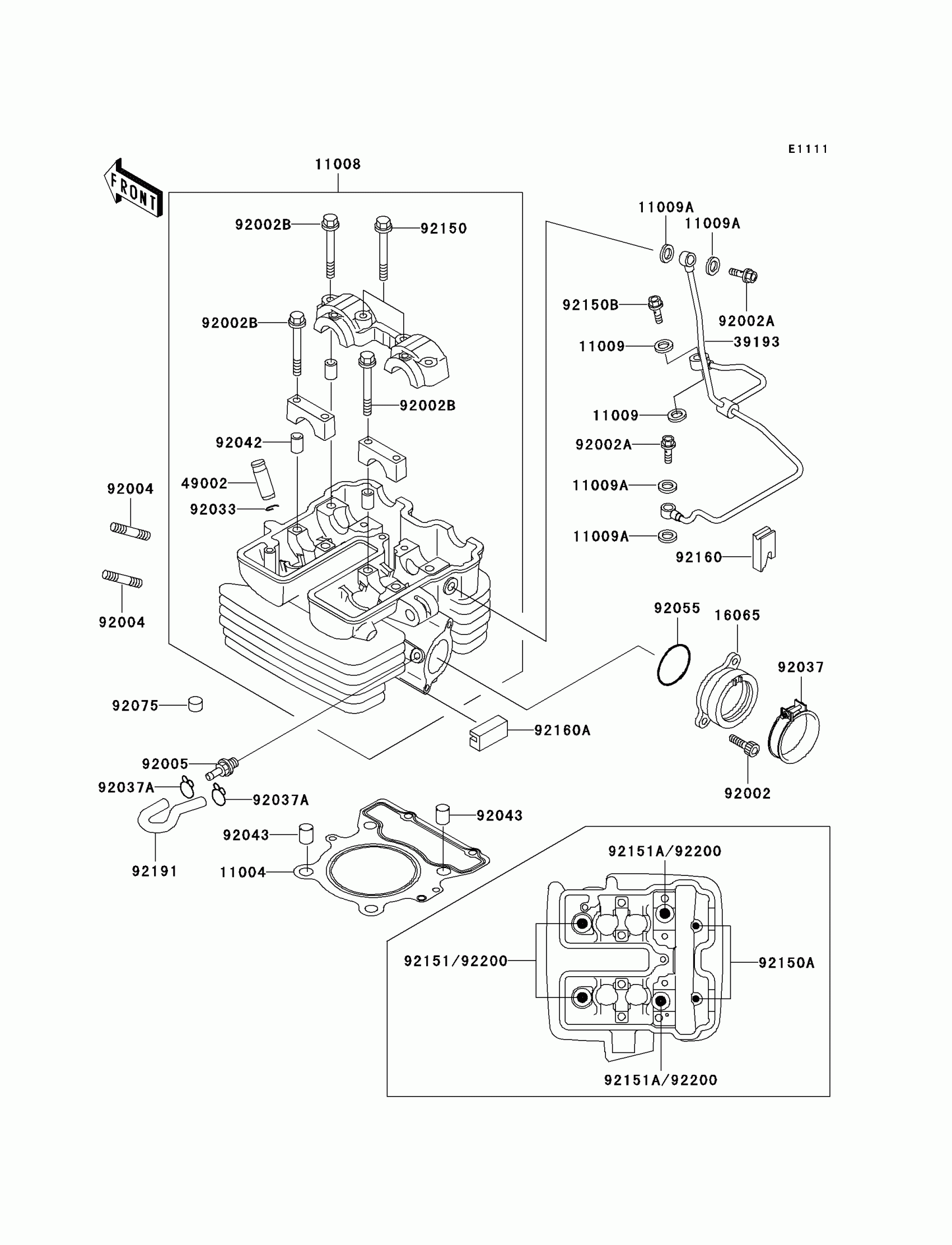

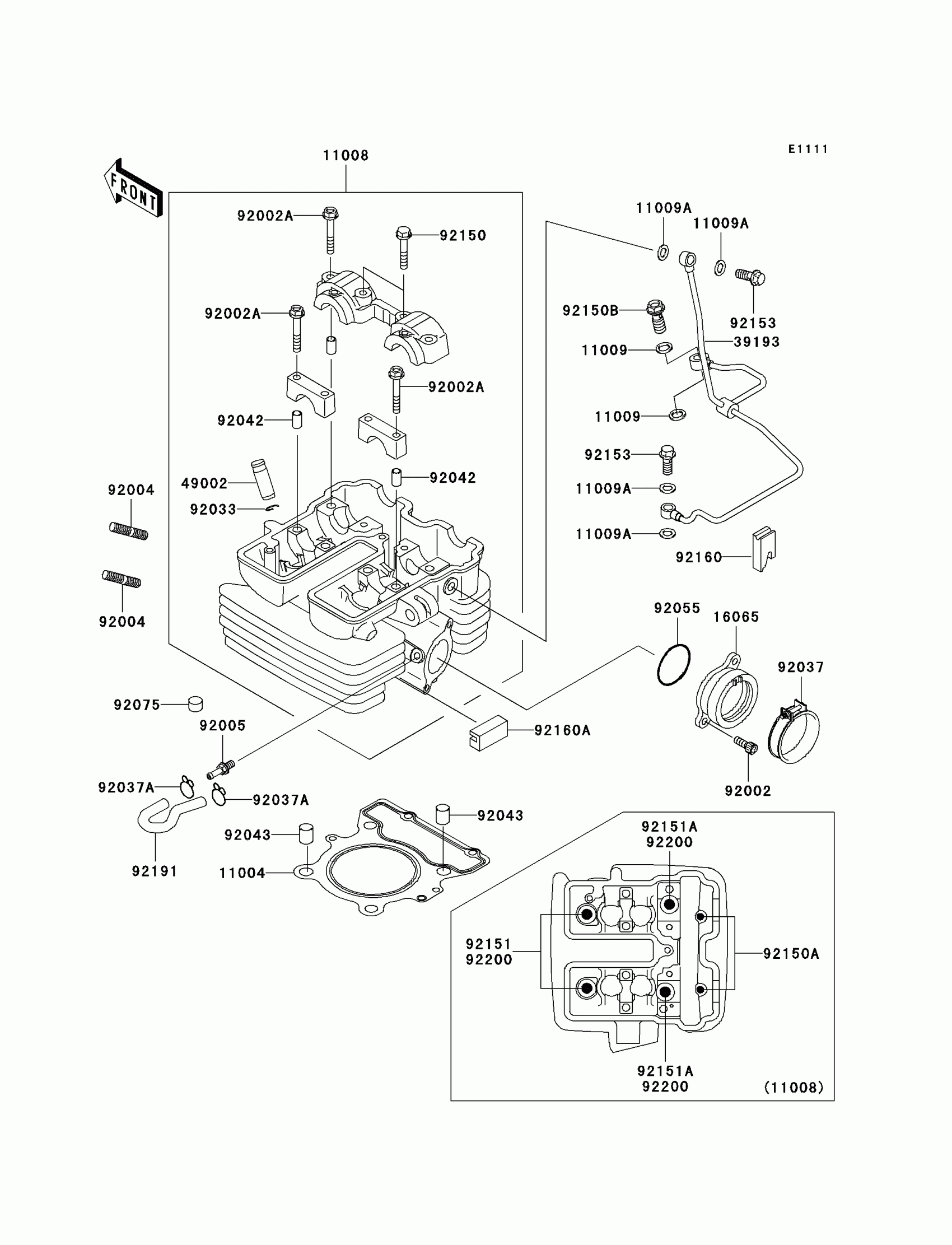

Kawasaki Super Sherpa (Canada Only) Cylinder Head Diagram

Description

Price

11004

GASKET-HEAD

11004-1328

$34.41

11008

HEAD-COMP-CYLINDER

11008-1340

$900.70

11009

GASKET,10X14.5X1.5

11009-1105

$6.51

11009A

GASKET,8.2X14X1.0

11009-1344

$3.17

16065

HOLDER-CARBURETOR

16065-1342

$48.92

39193

PIPE-OIL

39193-1032

$112.64

49002

GUIDE-VALVE

49002-1126

Unavailable

92002

BOLT,6X16

92002-1143

$3.92

92002A

BOLT,BANJO,8X20

92002-1618

$10.56

92002B

BOLT,6X40

92002-1756

$4.69

92004

STUD,8X22

92004-1217

$5.65

92005

FITTING,BLEED PIPE

92005-1337

$23.31

92033

RING-SNAP

92033-1247

$3.91

92037

CLAMP,ID=53,BLACK

92037-1304

$10.28

92037A

CLAMP

92037-1610

$2.00

92042

PIN,DOWEL,6.3X8X14

92042-007

$5.70

92043

PIN,10.1X12X14

92043-4009

$6.22

92055

RING-O,35.2X1.9

92055-520

$5.31

92075

DAMPER

92075-182

$4.31

92150

BOLT,6X35

92150-1083

$3.92

92150A

BOLT,6X135

92150-1552

$7.34

92150B

BOLT,BANJO,10X23

92150-1641

$14.23

92151

BOLT,10X158

92151-1152

$14.17

92151A

BOLT

92151-1263

$24.12

92160

DAMPER

92160-1816

$4.13

92160A

DAMPER

92160-1879

$4.87

92191

TUBE

92191-1158

Unavailable

92200

WASHER,10.5X19X2.3

92200-1339

$4.13
