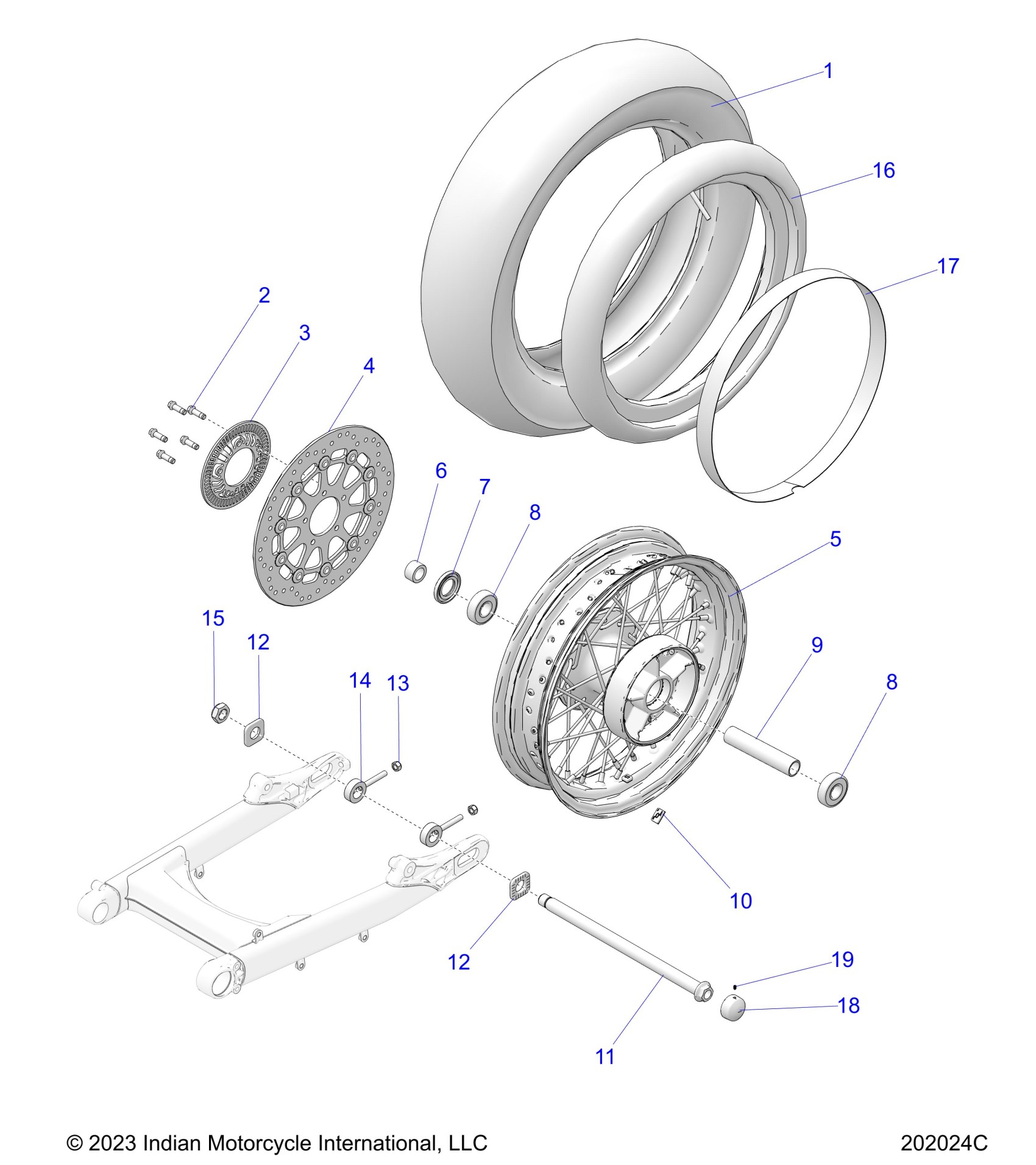

Polaris SUPER SCOUT ALL OPTIONS (R02) - N25SHD76JH/M/W/PH/M/W/XH/M/W/F76AA/H/M/W/BA/H/M/W/CA/H/M/W/EH/M/W WHEEL, REAR - N25SHD76/SHF76 (202024C) Diagram

#

Description

Price

1

TIRE-REAR,MT60RS,150/80-16

5416926

Unavailable

1

TIRE-REAR,K673,150/80-16,VT [CHINA]

5418189

Unavailable

2

SCREW-HXFLGHD,M8X1.25X25,GEOMET

7521014

$1.59

3

RING, TONE, ABS

5263961

Unavailable

4

ROTOR-BRK,FLOAT,FLAT,BLK

1912961-266

Unavailable

5

ASM-WHL,WIRE,RR,16X3.5,BLK INCLUDES 6-9

1522475-266

Unavailable

6

SPACER-BRG,RR WHEEL,LH,PM

5631479

Unavailable

7

SEAL-30X52X7

3610094

Unavailable

8

BEARING-BALL,20MMX52MMX15MM

3514405

Unavailable

8

BEARING-BALL,20MMX52MMX15MM

3514405

Unavailable

9

SPACER

5337828

Unavailable

10

WEIGHT-STEEL,5G,SLV

1525325

Unavailable

11

AXLE,REAR-FORGED,MS

5916588

Unavailable

12

PLATE, INDICATOR, ADJUSTMENT

5257889

Unavailable

12

PLATE, INDICATOR, ADJUSTMENT

5257889

Unavailable

13

NUT-NYLOCK M8X1.25-Y

7547144

$3.19

14

ADJUSTER, AXLE

5138890

Unavailable

15

NUT-FUJILOCK-M18X1.5

7547667

Unavailable

16

TUBE, TIRE, INNER

1823877

Unavailable

17

STRAP, RIM, 16 INCH

5813714

Unavailable

18

CVR-NUT,M18,CHR [INTL ONLY]

5144666-156

Unavailable

19

SCR-SET,CUP POINT M4X0.7X6,SS [INTL ONLY]

7518449

Unavailable
