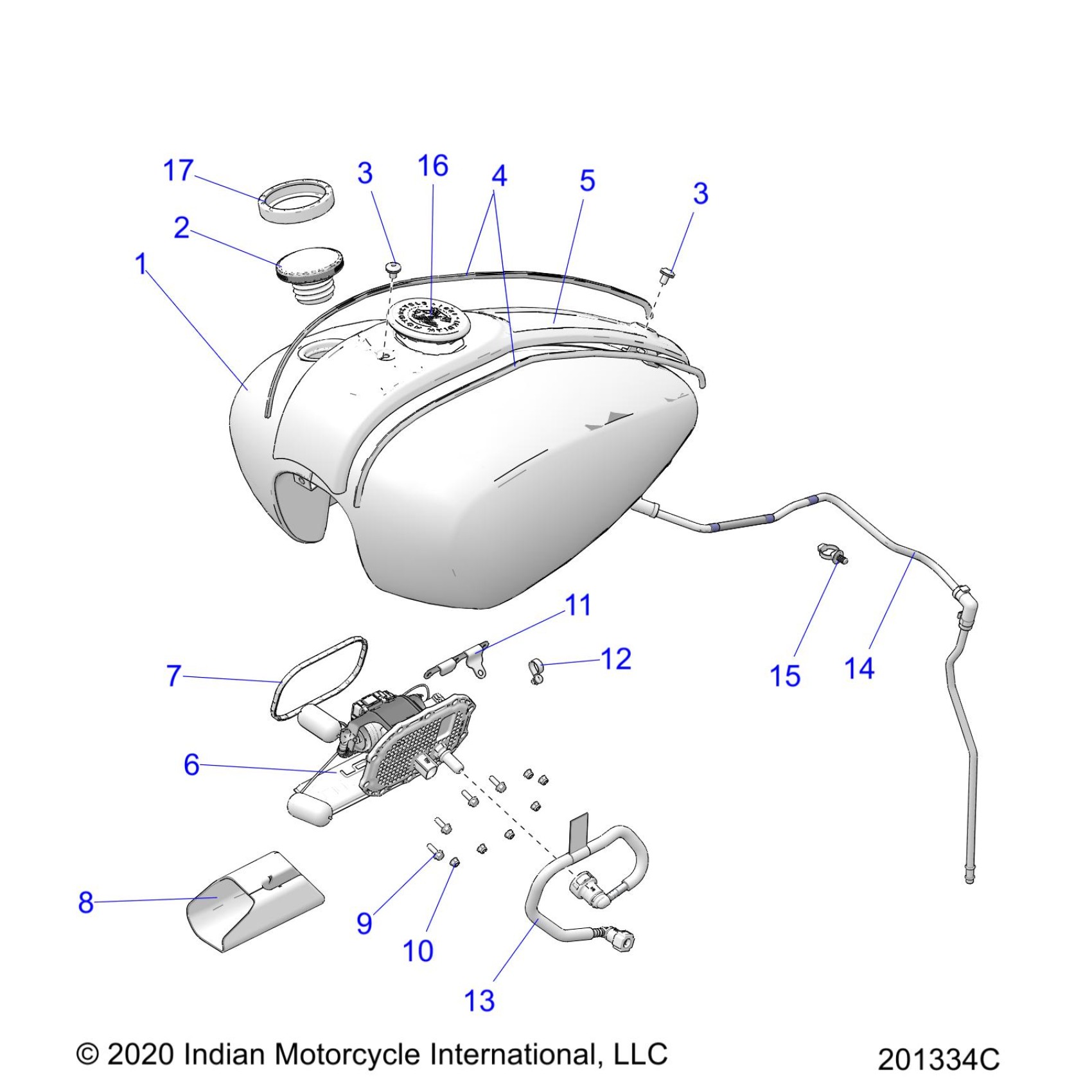

Polaris SUPER CHIEF LIMITED 116 (R06) - N22DBABHA6/A/C/B6/A/C/C6/A/C/E6/A/C/DBHP6/A/C FUEL SYSTEM, FUEL TANK ASM. - N22DBABH/DBDBH ALL OPTIONS (201279C) Diagram

#

Description

Price

1

ASM-TANK,FUEL,ONYX,BLK BLACK ONYX

1026492-800

Unavailable

1

TANK-FUEL,CSR,MAROONMET MAROON METALLIC

1026492-711

Unavailable

1

ASM-TANK,FUEL,CSR,BLUSLTMET BLUE SLATE METALLIC

1026492-820

Unavailable

2

CAP, FUEL, CHROME

2522214-156

Unavailable

2

CAP-FUEL,TETHER,CHR [CHINA ONLY]

2522281-156

Unavailable

3

SCR-HXBH-M6X1.0X12-W/WASHER

7527851

Unavailable

3

SCR-HXBH-M6X1.0X12-W/WASHER

7527851

Unavailable

4

TRIM-EDGE,CONSOLE,665MM

8360196

Unavailable

5

CONSOLE-TANK,STAMP,GPS,CHR

5270419-156

Unavailable

6

PUMP-FUEL,CSR

2522501

Unavailable

6

FILTER-FUEL,CSR,SVC

2522516

Unavailable

6

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

7

SEAL, FUEL, PFA

5414830

Unavailable

8

BAFFLE-PICKUP,FUEL

5417716

Unavailable

9

SCREW-HXFL-M5X0.80X16 8.8 ZY3

7521169

Unavailable

10

NUT-HXFL-M5X0.8 8 ZPC NYL

7547829

$3.19

11

BRKT-RETENTION,FUEL LINE,ECOAT

5269412-329

Unavailable

12

Strap, Retainer, Dart

7081461

Unavailable

13

LINE-FUEL,CSR

8450224

Unavailable

14

LINE-VENT,TANK [49 STATE]

5456336

Unavailable

15

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

16

MOUNT-CONSOLE,ANTENNA

5457808

Unavailable

17

BUMPER-CAP,FUEL [CHINA ONLY]

5417339

Unavailable
