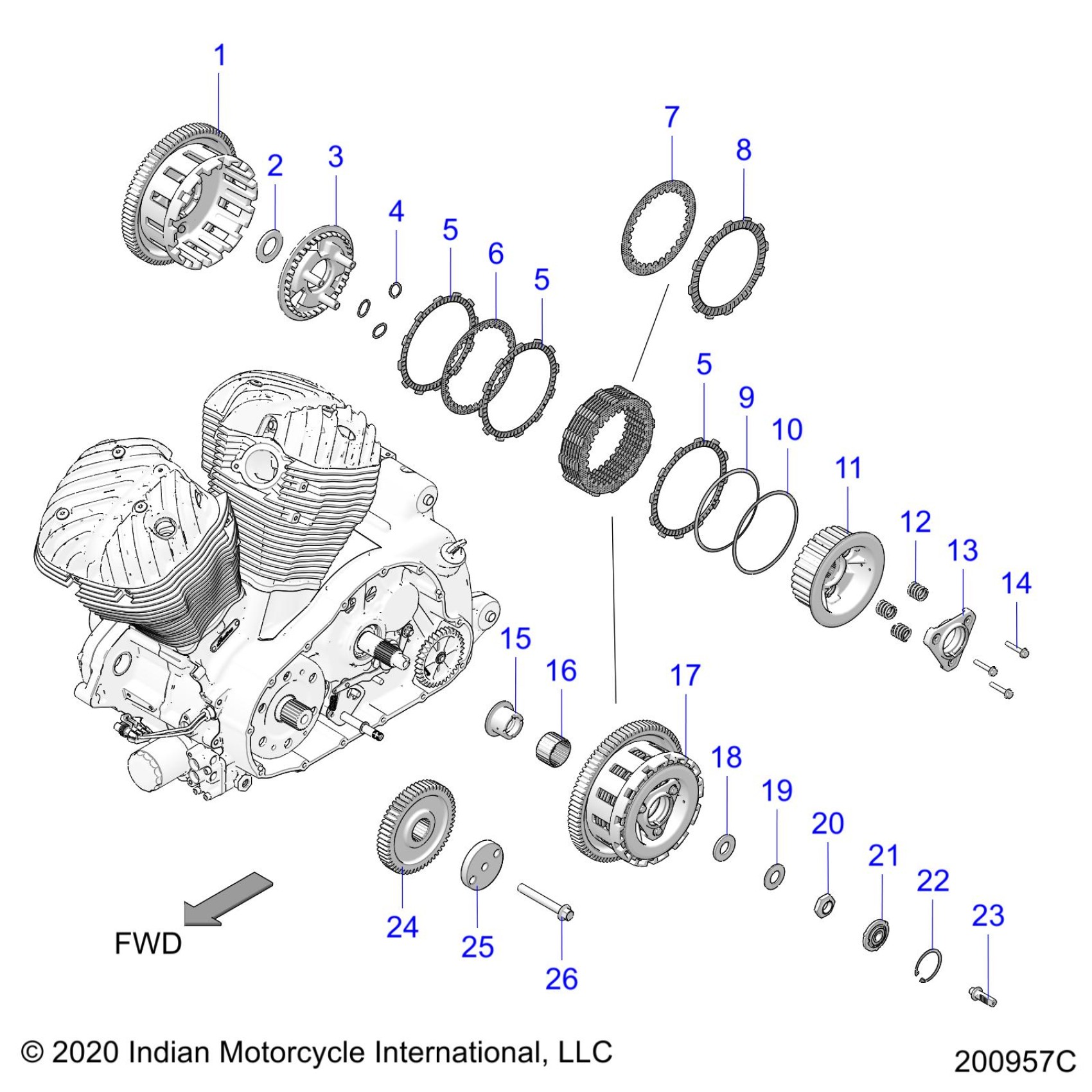

Polaris SUPER CHIEF LIMITED 116 (R06) - N22DBABHA6/A/C/B6/A/C/C6/A/C/E6/A/C/DBHP6/A/C DRIVE TRAIN, CLUTCH AND PRIMARY DRIVE - N22DBABH/DBDBH ALL OPTIONS (200957C) Diagram

#

Description
Price

-

KIT, CLUTCH PACK (INCL. 5-8)

2208847

$349.99

1

ASM, BASKET, OUTER, CLUTCH

1334558

$774.99

2

WASHER, THRUST

7556747

$42.84

3

CLUTCH PRESSURE PLATE

5140050

$142.21

4

SEAT-SPRING,CLUTCH

5262709

$8.89

5

CLUTCH-FRICTION B

1323373

$48.40

5

CLUTCH-FRICTION B

1323373

$48.40

5

CLUTCH-FRICTION B

1323373

$48.40

6

CLUTCH-SEPARATOR B

5262708

$40.46

7

PLATE-SEPERATOR,CLUTCH

5258193

$40.46

8

CLUTCH-FRICTION A

1323372

$48.40

9

SPRING, JUDDER, CLUTCH

7044118

$60.70

10

SEAT, JUDDER SPRING

5258192

$36.41

11

HUB-CLUTCH,INNER,MACH

5139886

$229.99

12

SPRING-CLUTCH,367N

7044392

$36.41

13

CLUTCH LIFT PLATE

5140051

$79.99

14

SCREW-HXFL-M6X1.0X35 8.8 ZPC

7520322

$4.03

15

COLLAR, BEARING

5138283

$125.86

16

BEARING, NEEDLE

3514791

$91.97

17

ASM-CLUTCH (INCL. 1-16)

1334557

$1,234.99

18

WASHER-FLAT,ISO7415-M20,HARD

7556518

$10.32

19

SPRING-DISC,2093A,40X20.4X2.5

7556519

$32.37

20

NUT-HEX,M20X1.5,32 A/F,STAKING

7547477

Unavailable

21

ASM., CLUTCH LIFTER

1205702

$60.70

22

RING-RETAINING,INTERNAL,1.875"

7710651

$1.59

23

CLUTCH-LIFT RACK,PUSH

6231090

$59.99

24

GEAR-PRIMARY DRIVE

6231136

$280.78

25

ADAPTER-COLD TEST,SPLINED

6231137

$96.81

26

SCR-SHXFL-M12X1.75X90 10.9 ZPC

7518705

$8.73
