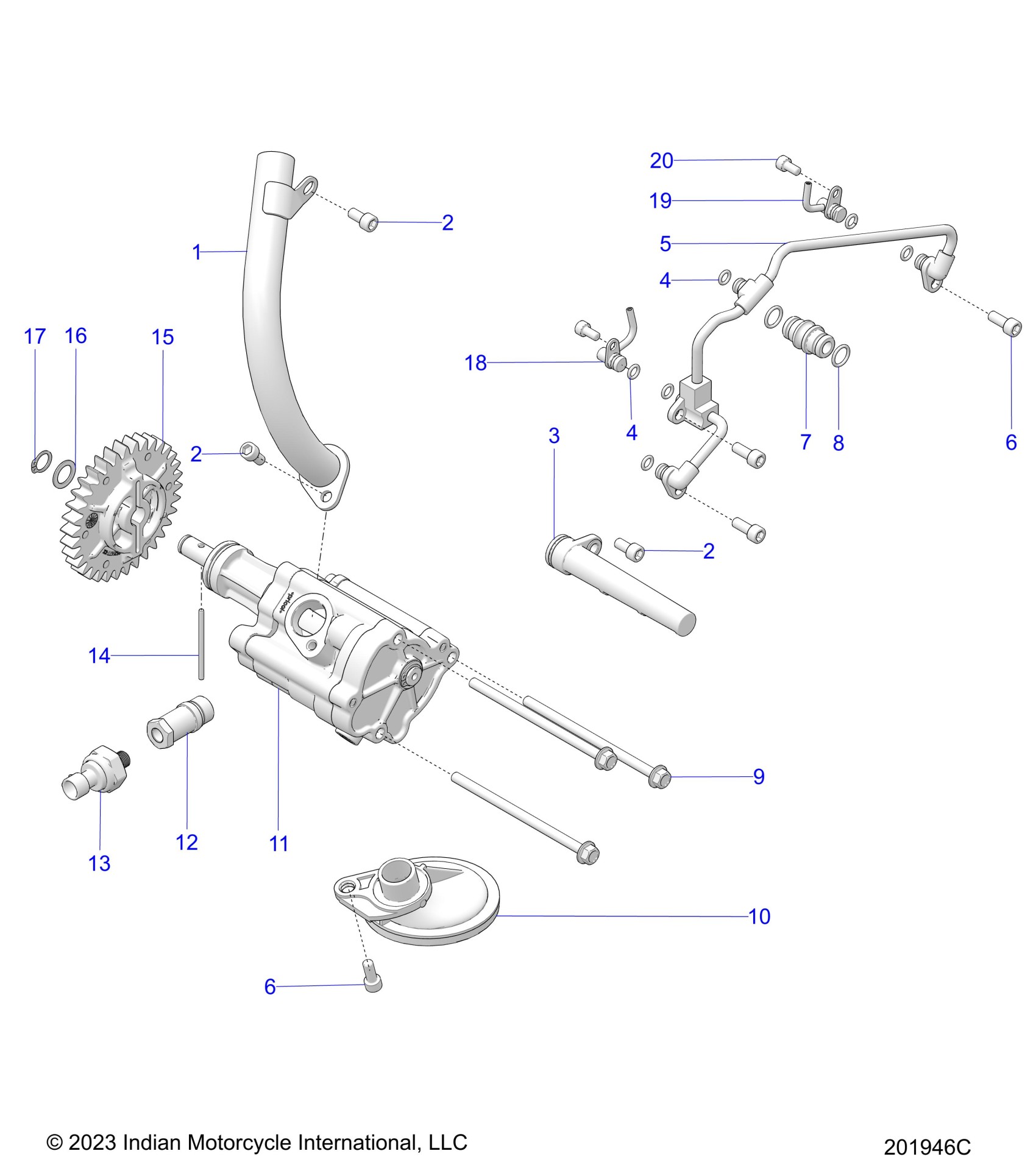

Polaris SUPER CHIEF LIMITED 116 ALL OPTIONS (R01) - N24DBABHAA/D/T/W/BA/D/T/W/CA/D/T/W/EA/B/D/T/W/JA/D/T/W/FBHPA/D/T/W ENGINE, OIL PUMP/OIL SYSTEM - N24DBABH/DBFBH ALL OPTIONS (201946C) Diagram

#

Description
Price

1

TUBE, OIL SCAVENGE

2521882

$91.97

2

SCREW-SH-M6X1.0X12 10.9 ZPB D204

7517739

$10.46

2

SCREW-SH-M6X1.0X12 10.9 ZPB D204

7517739

$10.46

2

SCREW-SH-M6X1.0X12 10.9 ZPB D204

7517739

$10.46

3

O-RING,-017

5414596

$1.98

3

SCREEN, OIL INLET, SCAVENGE

2521285

$48.56

4

O-RING .010

5414595

$1.98

4

O-RING .010

5414595

$1.98

5

PIPE-OIL FEED

2522439

$114.99

6

SCREW-SH-M6X1.0X15 10.9 ZPC

7517272

$7.84

6

SCREW-SH-M6X1.0X15 10.9 ZPC

7517272

$7.84

7

COUPLER, OIL FEED, CAM COVER

2521320

$32.37

8

O-RING,10.90X1.78,0600083(10)

5412027

$1.98

9

SCREW-HXFL-M6X1.0X110 10.9 ZPC

7521046

$4.99

10

SCREEN, OIL INLET PICKUP

2521454

$48.56

11

ASM, OIL PUMP

1205045

$419.99

12

ADAPTER,PRESSURE-SENSOR

5141978

$32.37

13

SWITCH-OIL PRESSURE MG1

4017989

$44.51

14

PIN, DOWEL

7662123

$23.81

15

GEAR, OIL PUMP DRIVE

2521477

$40.46

16

WASHER-THRUST,12.20X18.00X1.00

7555977

$7.14

17

RING-RETAINING,EXTERNAL,12MM

7710645

$1.21

18

NOZZLE-PISTON COOLING, REAR

2522136

$58.08

19

NOZZLE-PISTON COOLING, FRONT

2522135

$58.08

20

SCREW-M5X0.8X10 SOC/CP-D

7517847

$3.17
