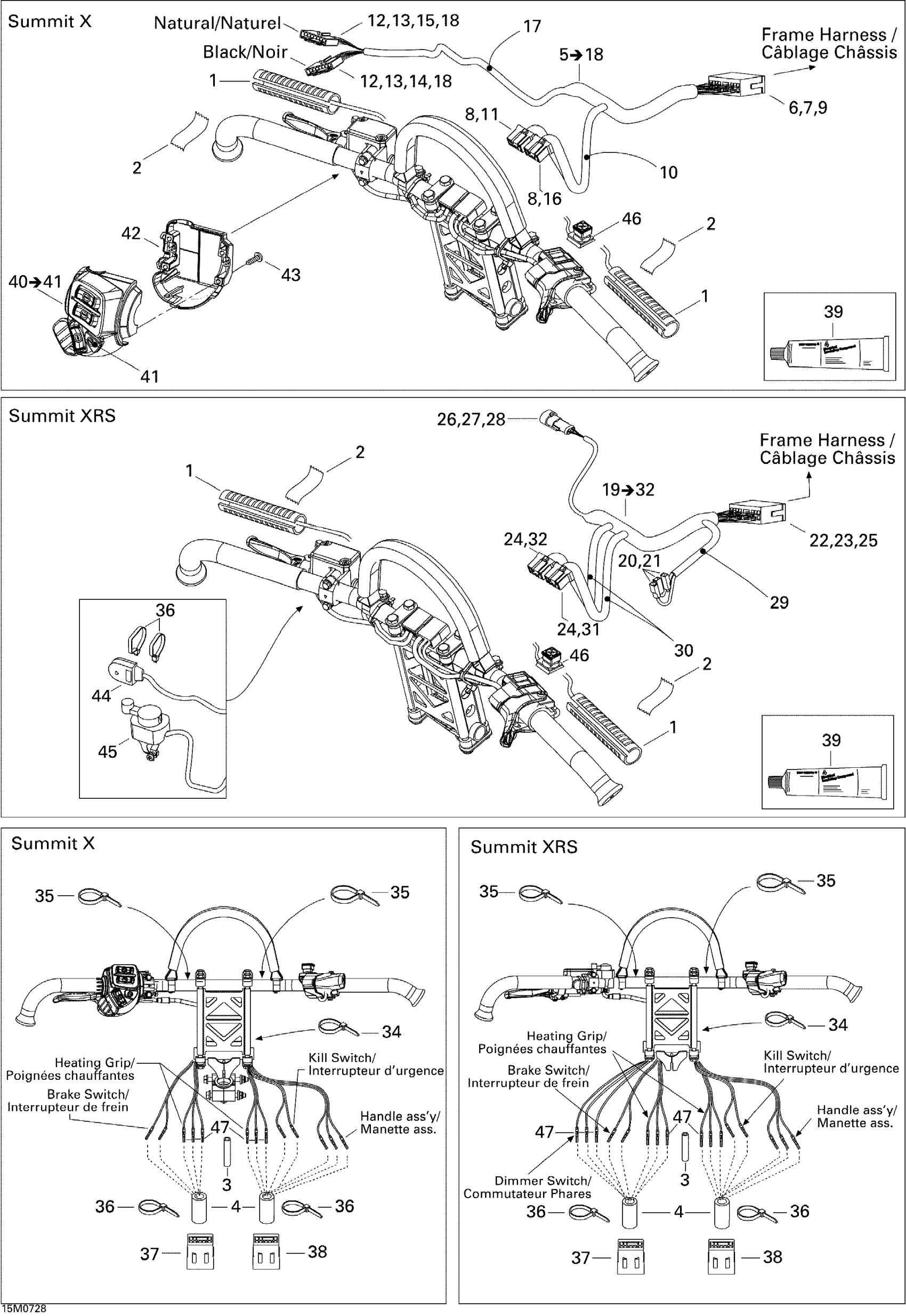

Ski-Doo Summit XRS, 2007 10- Steering Wiring Harness XRS Diagram

#

Description
Price

1

HEATER ELEMENT - Call your local BRP dealership

515176139

Unavailable

2

Tape

293740005

Unavailable

3

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

4

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

5

Not Available As Spare Parts

XXX

Unavailable

6

Not Available As Spare Parts

XXX

Unavailable

7

Not Available As Spare Parts

XXX

Unavailable

8

Not Available As Spare Parts

XXX

Unavailable

9

Not Available As Spare Parts

XXX

Unavailable

10

Not Available As Spare Parts

XXX

Unavailable

11

Not Available As Spare Parts

XXX

Unavailable

12

Not Available As Spare Parts

XXX

Unavailable

13

Not Available As Spare Parts

XXX

Unavailable

14

Not Available As Spare Parts

XXX

Unavailable

15

Not Available As Spare Parts

XXX

Unavailable

16

Not Available As Spare Parts

XXX

Unavailable

17

Not Available As Spare Parts

XXX

Unavailable

18

Not Available As Spare Parts

XXX

Unavailable

19

STEERING WIRING HARNESS - Call your local BRP dealership | 800HO, Includes 20 to 33

515176454

Unavailable

20

Female Terminal

409010100

$5.61

21

Female Terminal Housing, 1 Circuit

409010400

$7.62

22

Male Terminal

515175232

$1.58

23

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

24

Female Terminal

515175231

$4.39

25

MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175352

Unavailable

26

Male Terminal | Europe Models

409012900

$3.28

27

Male Terminal Housing, 2 Circuits

409209400

$16.86

28

Wire Seal

278001013

$3.28

29

Tubing 6 Mm 3000Mm Long

219704425

$13.75

30

Tubing 10 MM 1000MM Long

219704407

$2.79

31

Female Terminal Housing, 8 Circuits

515175819

$7.62

32

Female Terminal Housing, 8 Circuits

515175819

$7.62

34

Tie Wrap 368 mm

293750008

$1.04

35

Tie-Rap 180 mm

414115200

$0.11

36

Tie Wrap 142 mm

293750002

$1.25

37

Male Terminal Housing, 8 Circuits

515175817

$8.79

38

Male Terminal Housing, 8 Circuits

515175817

$8.79

39

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

40

Not Available As Spare Parts

XXX

Unavailable

41

Not Available As Spare Parts

XXX

Unavailable

42

Not Available As Spare Parts

XXX

Unavailable

43

Not Available As Spare Parts

XXX

Unavailable

44

Switch

515176269

Unavailable

45

DIMMER SWITCH - Call your local BRP dealership | Includes 2810A to 2810B

515177434

Unavailable

46

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

47

Male Terminal

515175232

$1.58
