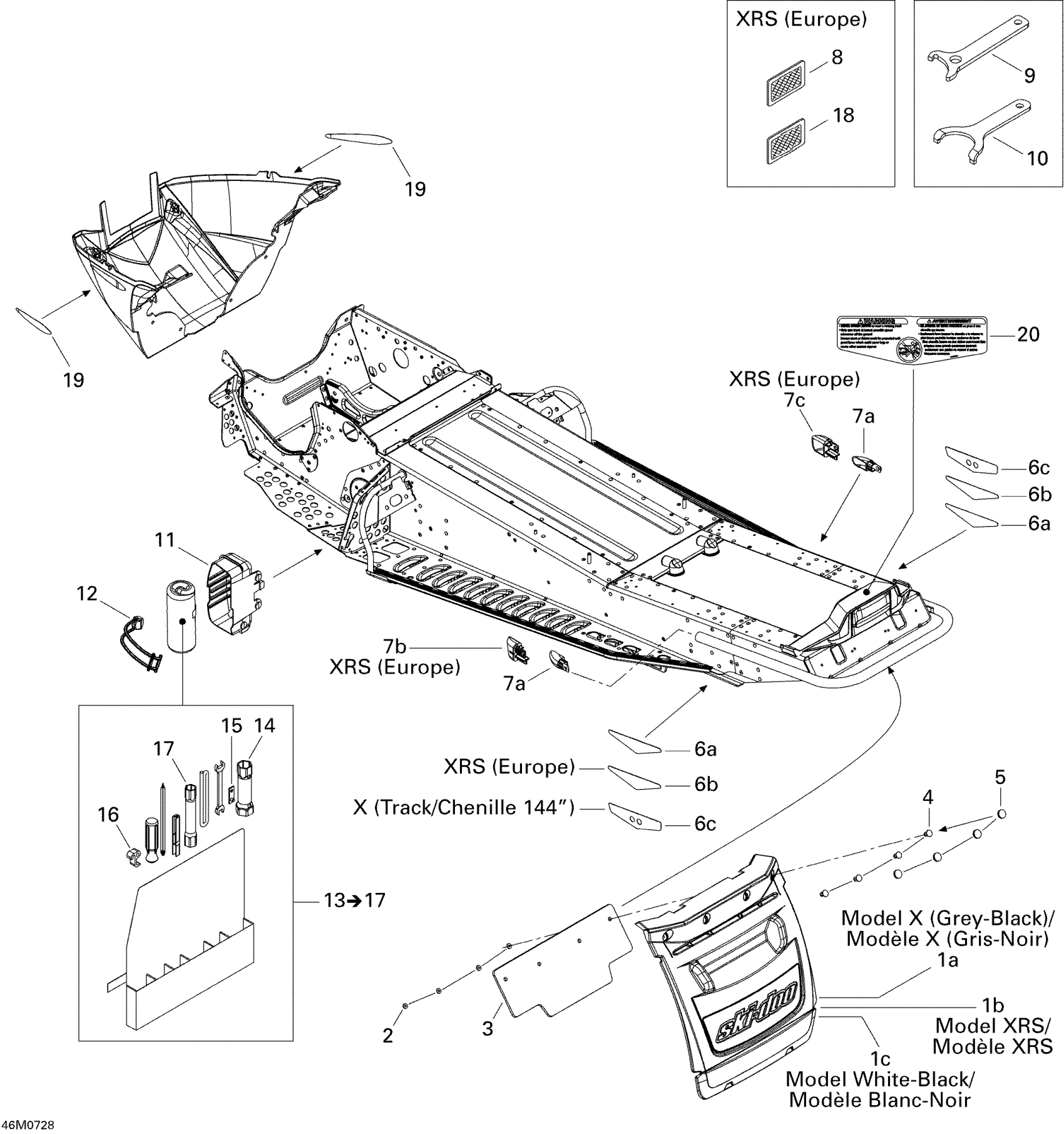

Ski-Doo Summit XRS, 2007 09- Utilities XRS Diagram

#

Description
Price

1a

Not Available As Spare Parts

XXX

Unavailable

1b

SNOW GUARD - Call your local BRP dealership

520000559

Unavailable

1c

Not Available As Spare Parts

XXX

Unavailable

2

Flat Washer

517225900

$0.18

3

SNOW GUARD REINFORCEMENT - Call your local BRP dealership

520000488

Unavailable

4

Pop Rivet 3/16”

293150087

$0.93

5

Black, Cap

277000203

$9.39

6a

REAR REFLECTOR, RED - Call your local BRP dealership

520000237

Unavailable

6b

Rear Reflector, Amber | Europe

520000311

Unavailable

6c

Not Available As Spare Parts

XXX

Unavailable

7a

CAP - Call your local BRP dealership

520000272

Unavailable

7b

LH CAP - Call your local BRP dealership | Europe

520000601

Unavailable

7c

RH Cap | Europe

520000602

Unavailable

8

Amber, Reflector

520000271

$19.99

9

Adjustment Wrench

529000035

$2.09

10

ADJUSTMENT WRENCH - Call your local BRP dealership

529035582

Unavailable

11

TRUNK - Call your local BRP dealership

520000322

Unavailable

12

Latch

520000528

$7.69

13

TOOL KIT - Call your local BRP dealership | Includes 9 to 13

529000025

Unavailable

14

Socket Wrench 21/26 mm

529014800

Unavailable

15

ROPE ADAPTOR - Call your local BRP dealership | Includes 13 to 14

529024400

Unavailable

16

Starter Grip

529000060

$14.15

17

Socket Wrench 16/18 mm

295000175

Unavailable

18

White, Reflector

415037900

$22.99

19

FRONT REFLECTOR - Call your local BRP dealership

516001336

Unavailable

20

WARNING LABEL, TRACK SECURITY - Call your local BRP dealership

516003034

Unavailable
