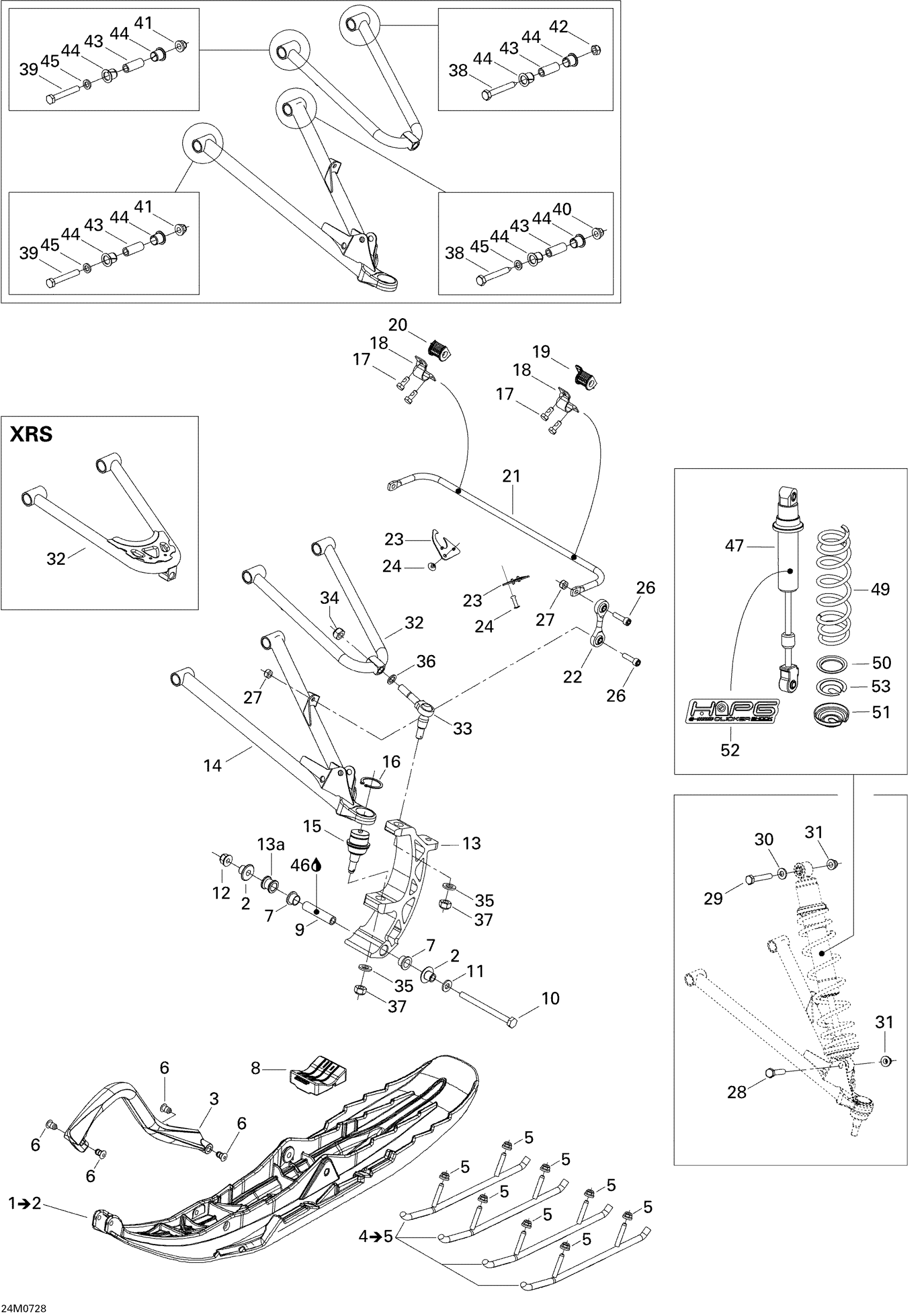

Ski-Doo Summit XRS, 2007 07- Front Suspension And Ski XRS Diagram

#

Description
Price

1

RH Pilot Ski 6.9 | XRS, Includes 1 to 2

505072051

Unavailable

1

LH Pilot Ski 6.9 | XRS, Includes 1 to 2

505072053

Unavailable

2

Ski Bushing

505071781

$16.18

3

Yellow Handle | Model-MX-Z TNT

505070917

$42.49

4

Square Carbide Runner Kit | Includes 5 to 6

860511800

Unavailable

5

Hex. Flange Elastic Nut M8

233281414

$1.47

6

Retainer 17mm long

505071812

$5.95

7

Leg Bushing

505072690

$12.49

8

Ski Stopper

505071779

$18.78

9

BUSHING - Call your local BRP dealership

505071271

Unavailable

10

Hex. Screw M10 X 130 | Model-RT STD

250000703

$9.91

11

Washer

732900049

$0.58

12

Flange Nut M10

732610084

$6.79

13

SKI LEG - Call your local BRP dealership

505071248

Unavailable

13a

SPACER - Call your local BRP dealership

505071215

Unavailable

14

RH LOWER ARM - Call your local BRP dealership

505072055

Unavailable

14

LH Lower Arm

505072056

Unavailable

15

Ball Joint

505073636

$51.99

16

Circlip

293370035

$2.64

17

Hex. Screw With Nylon

250000118

Unavailable

18

CLAMP - Call your local BRP dealership

506095800

Unavailable

19

LH BUSHING - Call your local BRP dealership

505071475

Unavailable

20

RH BUSHING - Call your local BRP dealership

505071476

Unavailable

21

STABILISATOR - Call your local BRP dealership

505071477

Unavailable

22

BALL JOINT - Call your local BRP dealership

505071479

Unavailable

23

PLUG - Call your local BRP dealership

505071253

Unavailable

24

Pop Rivet 3/16"

293150103

$0.55

26

Socket Head Screw M8 X 30

205083044

$1.15

27

Hex. Elastic Stop Nut M8

232581414

$0.56

28

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

29

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

30

Washer

503189564

$0.74

31

Hex. Flange Elastic Nut M10

233201414

$1.58

32

RH UPPER ARM - Call your local BRP dealership

505072057

Unavailable

32

LH UPPER ARM - Call your local BRP dealership

505072058

Unavailable

33

Upper Ball Joint

505072257

$17.58

34

Hex. Elastic Hex. Nut M12

250100089

$0.46

35

Flat Washer 12 mm

234021410

$0.72

36

Washer

503189276

$3.28

37

Hex. Elastic Hex. Nut M12

250100089

$0.46

38

Hex. Screw M10 X 75

250001063

$13.16

39

Hex. Screw M10 X 75

250001063

$13.16

40

Hex. Flange Elastic Nut M10

250100165

$0.85

41

Hex. Flange Elastic Nut M10

250100165

$0.85

42

Hex. Flange Elastic Nut M10

250100165

$0.85

42

Elastic Flange Nut M10

232501416

$1.48

43

Aluminium Bushing

505070960

$14.15

44

Arm Bushing

505070566

$3.28

45

Washer

503189564

$0.74

46

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

47

FRONT SHOCK - Call your local BRP dealership

505071994

Unavailable

49

SPRING - Call your local BRP dealership

505071989

Unavailable

50

GUIDE_SPRING - Call your local BRP dealership

503165100

Unavailable

51

Spring Stopper

706200881

$12.99

52

HPG DECAL - Call your local BRP dealership

505072222

Unavailable

53

Cap

706200785

$4.69
