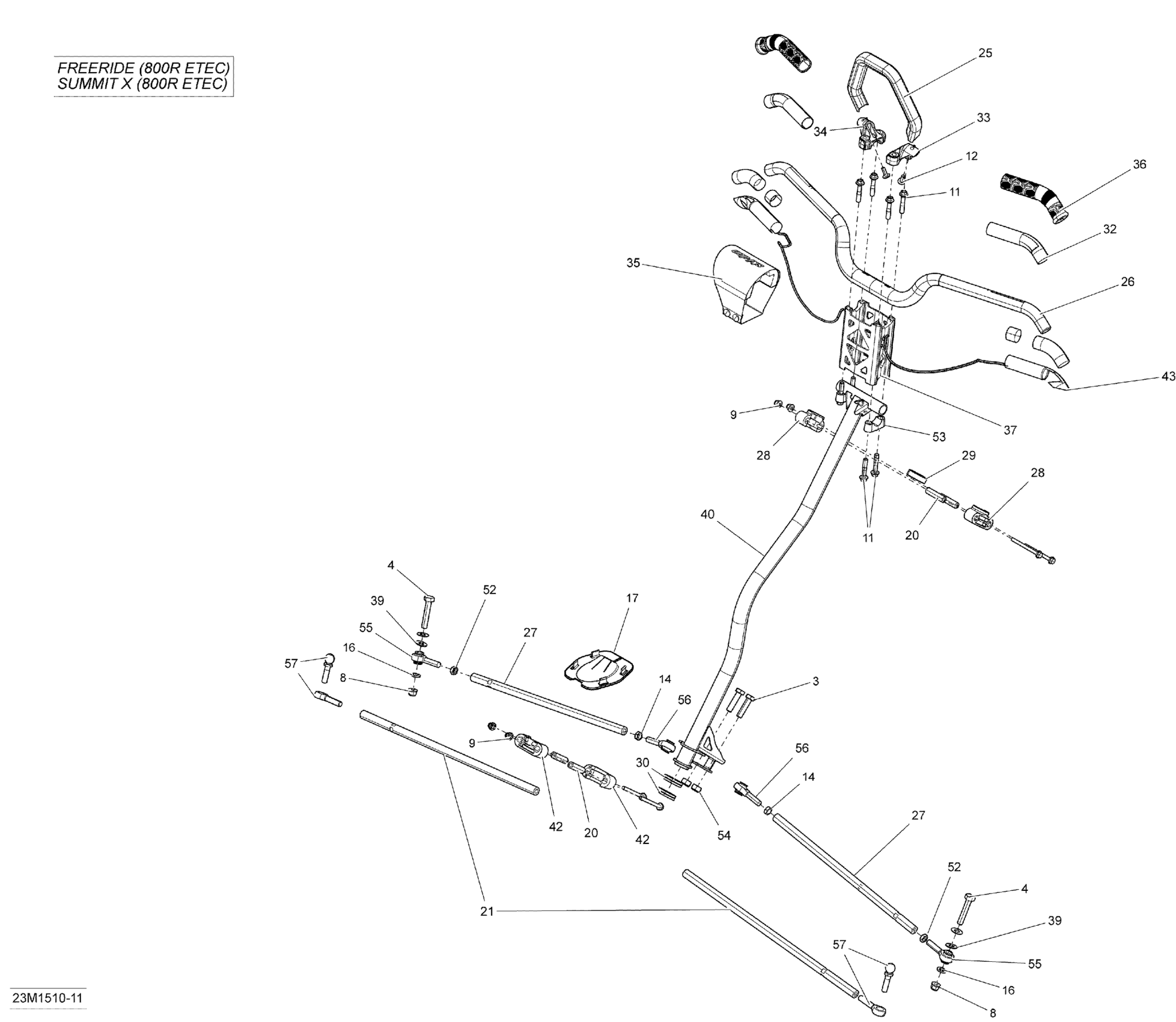

Ski-Doo Summit X 800RETEC XM T3-163, 2015 Steering _23M1511 Diagram

#

Description
Price

3

Hex. Screw M10 X 1.5 X 40

207004034

$1.74

4

Hex Screw M10 X 1.5 X 55

207005554

$6.18

5

Hex. Flange Screw M6 X 70

207667056

$3.61

8

Hex. Flange Elastic M10 x 1.5

233201464

$6.18

9

Elastic Flange Nut M6 X 1.0

233261416

$1.74

11

Hex. Flange Screw M8 X 40

250000352

$3.26

12

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

14

LH Threaded Hex. Jam Nut M10

250100016

$0.72

16

Washer

503192496

$0.75

17

Plate

506152163

$10.23

20

Housing Bushing

506152297

$10.23

21

Not Available As Spare Parts

XXX

Unavailable

25

Moulding Strap

506152460

$69.99

26

Clear Handle Bar | Package X-T3

506152708

$144.58

26

Clear Handle Bar | Package X-T3

506152708

$144.58

26

Clear Handle Bar | Package X-T3

506152708

$144.58

27

Tie-Rod

506152482

$36.89

28

Upper Half-Housing

506152508

$7.40

29

Upper Anti-Vibration Gasket

506152509

$4.52

30

Lower Vibration Ring

506152518

$4.52

32

Thermal Insulation

506153176

$5.71

33

Steering Support

506152555

$35.35

34

Steering Support

506152556

$35.35

35

Steering Pad | Package Extreme

506152717

$72.28

36

Grip 148mm

506152560

$16.12

37

Handlebar Extension | Package X-T3 (TEHA, TEHB, TEHF)

506152760

$94.58

37

WHITE HANDLEBAR EXTENSION - Call your local BRP dealership | Model-Orange-Orange

506152805

Unavailable

37

Handlebar Extension | Includes 400 to 400a

506152806

$139.97

39

Washer

506152582

$4.42

40

Steering Column

506152962

$189.20

42

Lower Half-Housing | Package XRS

506152588

$9.98

43

Heating Element 32 Watt 3 Wires

506152798

$49.20

52

RH Threaded Hex. Jam Nut M10

732610010

$0.72

53

Steering Support | Includes 40 to 40a

506152751

$10.09

54

Elastic Locking Nut M10

233601466

$1.74

55

RH Threaded Ball Joint

506152019

$39.97

56

LH Thread Ball Joint

506152081

$39.97

57

RH Threaded Ball Joint

506152684

$42.28
