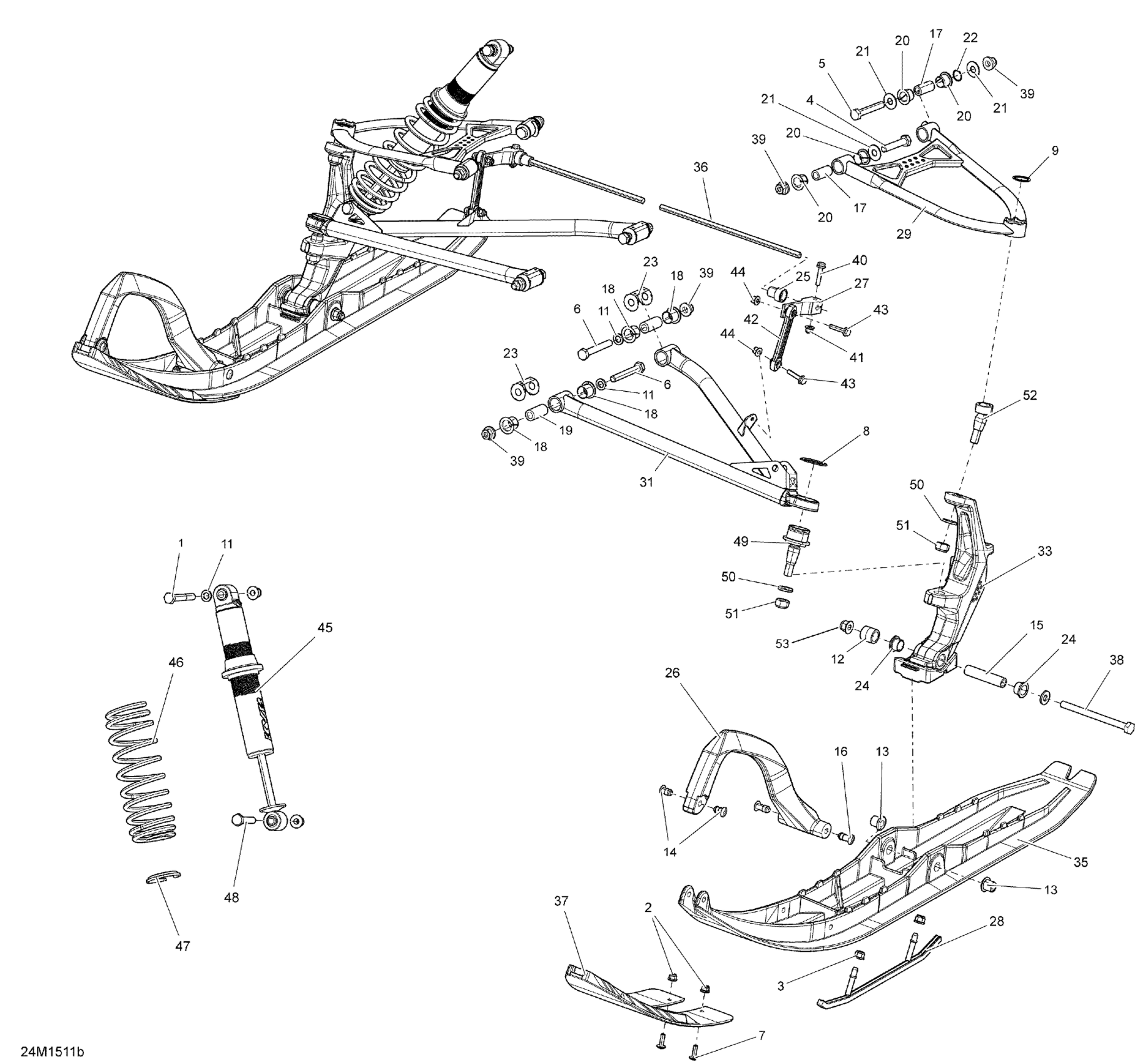

Ski-Doo Summit X 800RETEC XM T3-163, 2015 07- Front Suspension And Ski T3-163-174_24M1511b Diagram

#

Description
Price

1

Hex. Screw M10 X 1.5 X 65

207006544

$2.89

2

Hex. Flange Elastic Nut M6

233261494

$1.58

3

Hex. Flange Elastic Nut M8

233281414

$1.47

4

Screw Hex. M10 X 50

250001022

$1.69

5

Screw Hex. M10 X 60

250001023

$2.11

6

Screw Hex. M10 X 70

250001024

$2.11

7

Hex. Socket Screw M6 X 20

250000770

$2.09

8

Circlip

293370035

$2.64

9

Circlip

293370070

$8.99

11

Washer

503189564

$0.74

12

Spacer

503193651

$9.69

13

Ski Bushing

505071781

$16.18

14

Retainer 17mm long

505071812

$5.95

15

Spacer

506133300

$23.99

16

Retainer 23mm Long

505072133

$6.78

17

Sleeve

505072143

$9.00

18

Bushing

505072208

$3.28

19

Bushing

505072214

$18.89

20

Bushing

505072250

$3.28

21

Washer

505072392

$4.76

22

O-Ring

505072448

$2.32

23

Wear Plate

505072634

$6.29

24

Leg Bushing

505072690

$12.49

25

Bushing

505072786

$9.23

26

Black, Handle

505072976

$35.99

27

Stabilisator Lever

505073176

$18.73

28

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$92.99

29

Black Upper Arm LH

505073432

$204.99

29

Black, Upper Arm RH

505073435

$204.99

31

Black, LH Lower Arm 36"

505073438

$204.99

31

Black, Lower Arm RH 36"

505073441

$204.99

33

LH Ski Leg

505073443

$249.99

33

RH Ski Leg

505073444

$249.99

35

Black DS 3 Ski

505073568

$190.99

35

DS SKI - Call your local BRP dealership | Model-Yellow-Yellow

505073627

Unavailable

36

Stabilisator

505073609

$63.99

37

Ski Tip

505073784

$51.99

38

Hex. Screw M10 X 130 | Model-RT STD

250000703

$9.91

39

Hex. Flange Elastic Nut M10

250100165

$0.85

40

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.44

41

Hex. Flange Elastic Nut M6

233261466

$2.00

42

Double Ball Joint Link

505073172

$56.99

43

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.44

44

Hex. Flange Elastic Nut M6

233261466

$2.00

45

Front Shock | Package X-T3

505073572

$434.49

46

Black Spring | Package X-T3

505073783

$67.99

47

Spring Stopper

503194270

$19.99

48

Hex Screw M10 X 1.5 X 55

207005554

$7.51

49

Ball Joint

505073636

$51.99

50

Washer

503192491

$4.54

51

Hex Elastic Nut M12 X 1.25

232521464

$2.11

52

Upper Ball Joint

505072913

$72.99

53

Hex. Flange Elastic Nut M10

233201414

$1.58

54

Ski Stopper

505072594

$18.49
