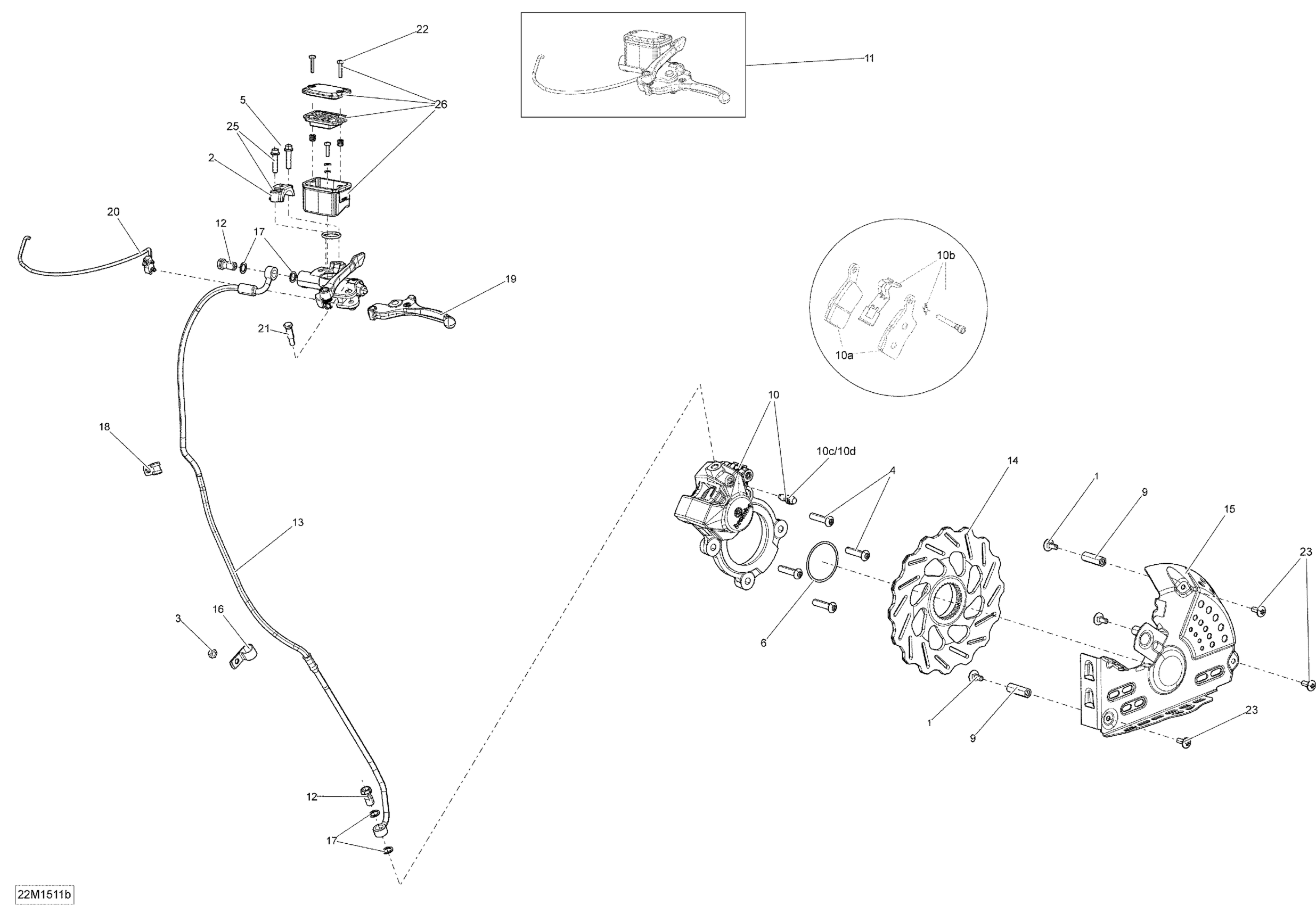

Ski-Doo Summit X 800RETEC XM T3-163, 2015 Hydraulic Brakes T3-163-174_22M1511b Diagram

#

Description
Price

1

Carriage Bolt M6 X 1.0 X 16

207761644

$1.74

2

Clamps | Includes 75a to 75b

719000049

$23.05

3

Elastic Stop Nut M6

232561434

$1.55

4

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$1.66

5

Hex. Flange Screw M6 X 25

250000447

$2.06

6

O-Ring

293300134

$2.25

9

Threaded Tube

507032497

$13.08

10

Brake Caliper | Includes 200 to 200c

507032720

$341.51

10a

Brake Pads Kit

507032473

$50.74

10b

Brake Spring Kit

507032722

$36.89

10c

Bleeder

507032475

$16.89

10d

BOOT-QTS 20 - Call your local BRP dealership

414989700

Unavailable

11

Master Cylinder Ass. | Includes 10 to 10g

507032596

$207.66

12

Banjo Bolt

507032551

$5.52

13

HOSE - Call your local BRP dealership

507032552

Unavailable

14

Disk

507032554

$216.89

15

DISK PROTECTOR - Call your local BRP dealership

507032557

Unavailable

16

Open Clamp

518321570

$6.03

17

Copper Washer

705601628

$4.34

18

Clamp

293650256

$4.36

19

Lever With Parking Lock

507032476

$101.51

20

Microswitch | Grand Touring

507032479

$96.89

21

Pin Ass'y

415030000

$17.66

22

Screw M4 X 20

415129356

$2.17

23

Torx Screw M6 X 16

250000365

$1.74

25

Clamp And Screw Kit

507032477

$22.79

26

Master Cylinder Reservoir Ass'y | Includes 10c to 10c1

507032478

$109.97
