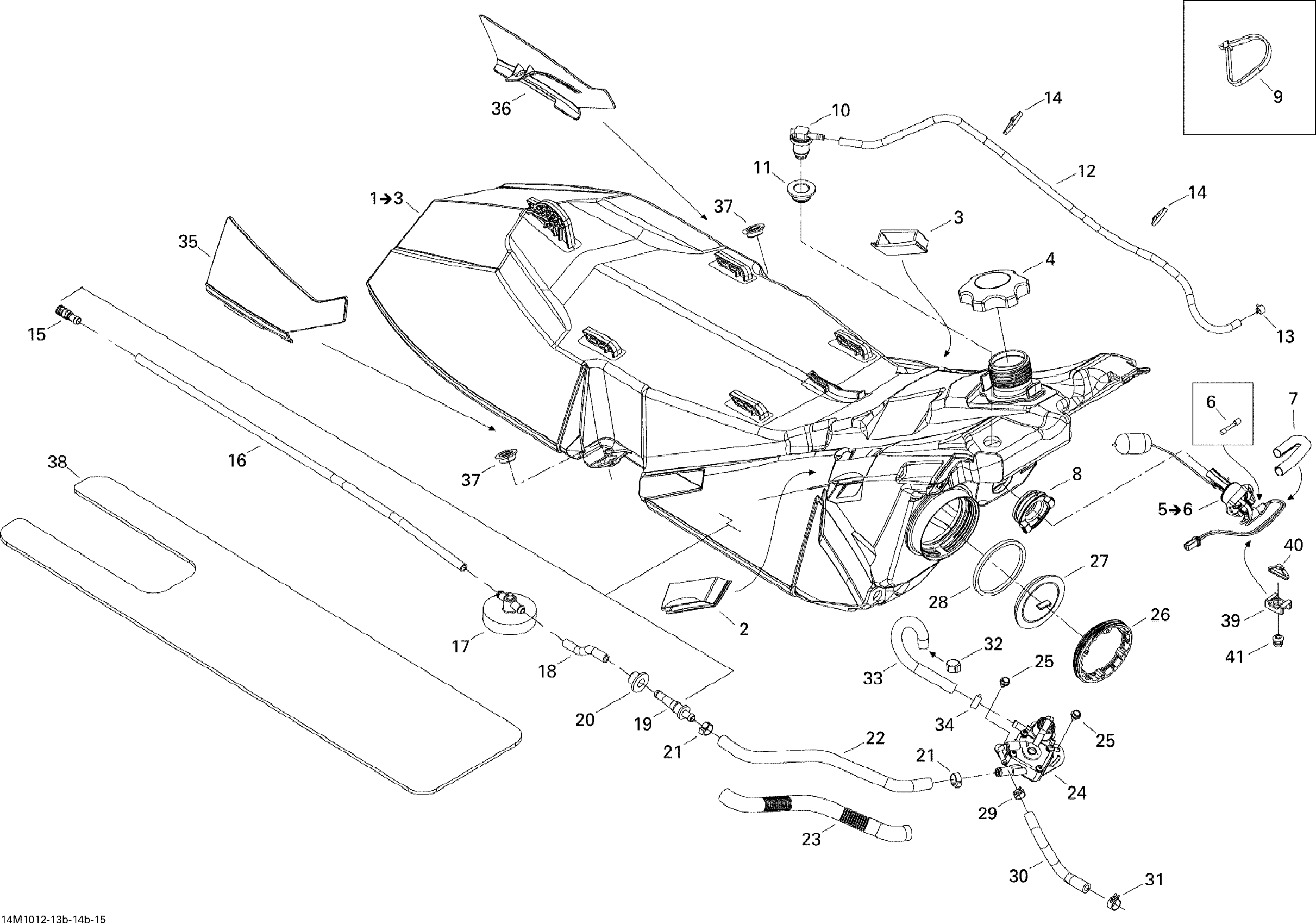

Ski-Doo Summit X 800R PTEK, 2010 Fuel System 800R PTEK Diagram

#

Description
Price

1

Fuel Tank

513033696

$304.45

2

RH Panel Clip

513033471

$5.36

3

LH Panel Clip

513033472

$5.36

4

Fuel Tank Cap 91 Octane

513033722

$22.36

5

Sensor Level Fuel | Includes 40 to 40a

513033958

$101.46

6

Fuse, 0.5 Ampère

710001995

$7.25

7

Tubing 10 MM 1000MM Long

219704407

$2.52

8

Grommet

513033606

$17.88

9

Tie Wrap 368 mm

293750008

$0.97

10

Check Valve

513033842

$32.81

11

Grommet

513033596

$17.88

12

Polyurethane Hose 10000Mm Long

219704410

$52.96

13

Spring Clamp

414554800

$0.81

14

Tie-Rap 180 mm

414115200

$0.10

15

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$11.06

16

Polyurethane Hose 1000Mm Long

219704391

Unavailable

17

Multi-Point Pick-Up

513033353

$41.01

18

Formed Hose

513033352

$17.13

19

Male Connector

414872700

Unavailable

20

Grommet

513033435

$4.28

21

Crimp Clamp

293650053

$2.78

22

Formed Hose

513033165

$28.33

23

Tubing 16 Mm 1000Mm Long

219704408

$7.15

24

Fuel Pump

513033184

$84.99

25

Hex. Flange Screw M6 X 10

210261040

$1.43

26

Ring

513033180

$17.13

27

Cap

513033591

$17.13

28

Gasket

513033334

$22.36

29

Spring Clamp

414415200

$0.81

30

Formed Hose

513033327

$23.10

31

Universal Spring Clamp

513033029

$4.96

32

Oetiker Clamp

293650125

$3.09

33

Formed Hose

513033343

$23.10

34

Spring Clamp

414655700

$0.66

35

RH Cap

513033418

$12.24

36

LH Cap

513033419

$12.24

37

Shoulder Bushing

513033326

$12.24

38

Insulating Foam

513033588

$12.24

39

Tie Rap Mount (screwable)

515176795

$4.96

40

Tie Wrap 142 mm

293750002

$1.01

41

Pop Rivet 3/16" | DS 650 X

390402000

$0.27
