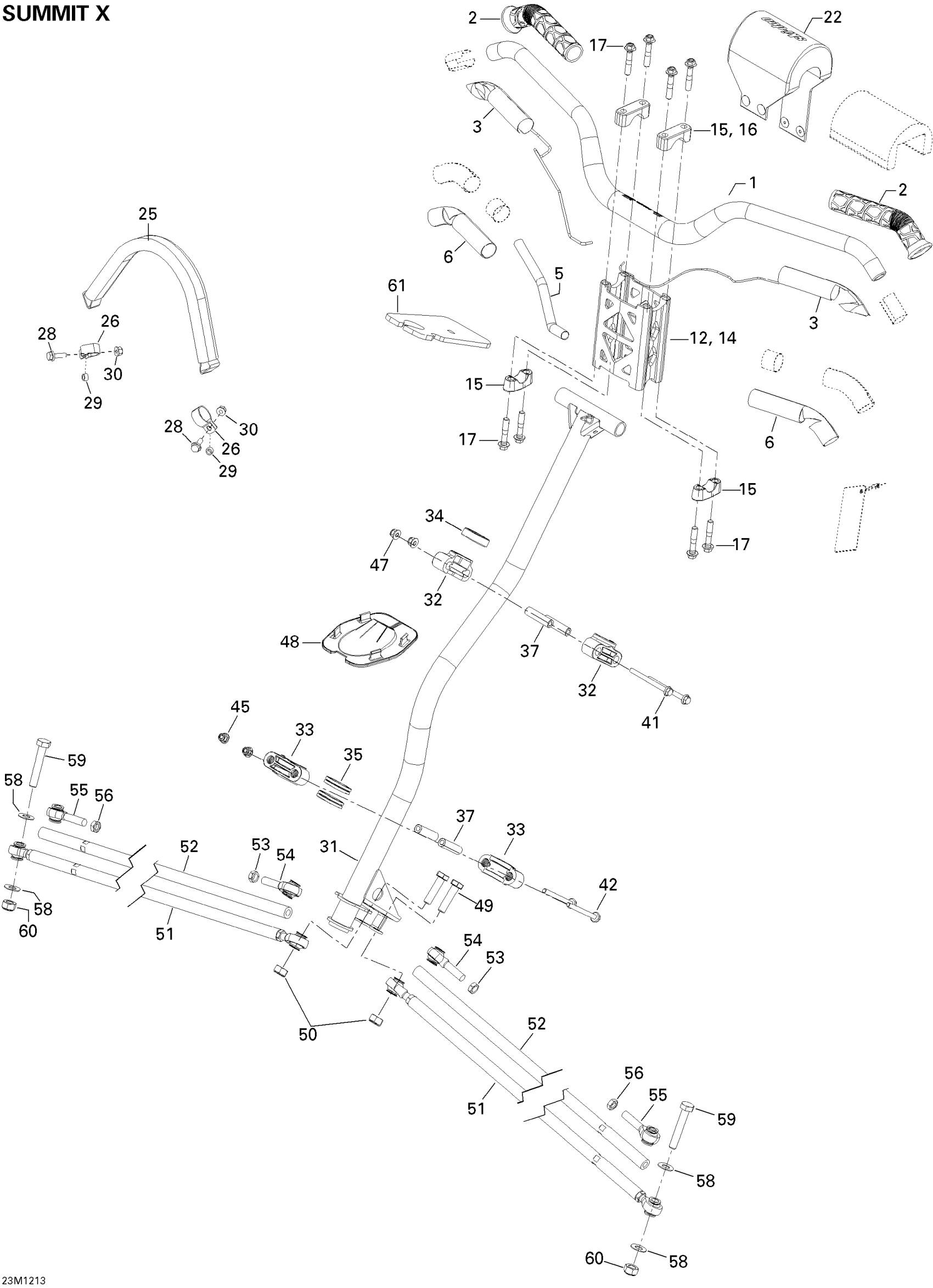

Ski-Doo Summit X 800R E-TEC, 2012 Steering Diagram

Handle Bar

506152489

$103.82

Grip

506152486

$14.71

Heating Element 28 WATT This part replaces 506152602.

506152603

$43.82

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

Isolant

506152611

$7.80

GOLD HANDLE BAR EXTENSION - Call your local BRP dealership

506152502

Unavailable

BLACK HANDLE BAR EXTENSION - Call your local BRP dealership

506152530

Unavailable

Steering Support | Includes 40 to 40a

506152751

$10.09

STEERING SUPPORT - Call your local BRP dealership

506152492

Unavailable

Hex. Flange Screw M8 X 40

250000352

$3.26

STEERING PAD - Call your local BRP dealership

506152505

Unavailable

Strap Ass'y | Package XMR

506152115

$43.05

SUPPORT PLATE - Call your local BRP dealership

506152535

Unavailable

Hex. Flange Screw M6 X 20

207662084

$0.83

Bushing | Package XMR

506152156

$5.35

Hex. Flange Elastic Nut M6

233261494

$1.26

Steering Column

506152962

$189.20

Upper Half-Housing

506152508

$7.40

Lower Half-Housing

506152217

$5.57

Upper Anti-Vibration Gasket

506152509

$4.52

Lower Vibration Ring

506152518

$4.52

Housing Bushing

506152297

$10.23

Hex. Flange Screw M6 X 70

207667056

$3.61

Hex. Flange Screw M6 X 70

207667044

$0.70

Elastic Flange Nut M6 X 1.0

233261416

$1.74

Elastic Flange Nut M6 X 1.0

233261416

$1.74

Plate

506152163

$10.23

Hex. Screw M10 X 1.5 X 40

207004034

$1.74

Elastic Stop Nut M10

232500416

$1.56

Not Available As Spare Part - Friction Washer

Unavailable

Tie-Rod

506152482

$36.89

LH Threaded Hex. Jam Nut M10

250100016

$0.72

LH Thread Ball Joint

506152081

$39.97

RH Threaded Ball Joint

506152019

$39.97

RH Threaded Hex. Jam Nut M10

732610010

$0.72

Washer

506152194

$4.42

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

Elastic Stop Nut M10

232500416

$1.56

Bushing

506152521

$13.60
