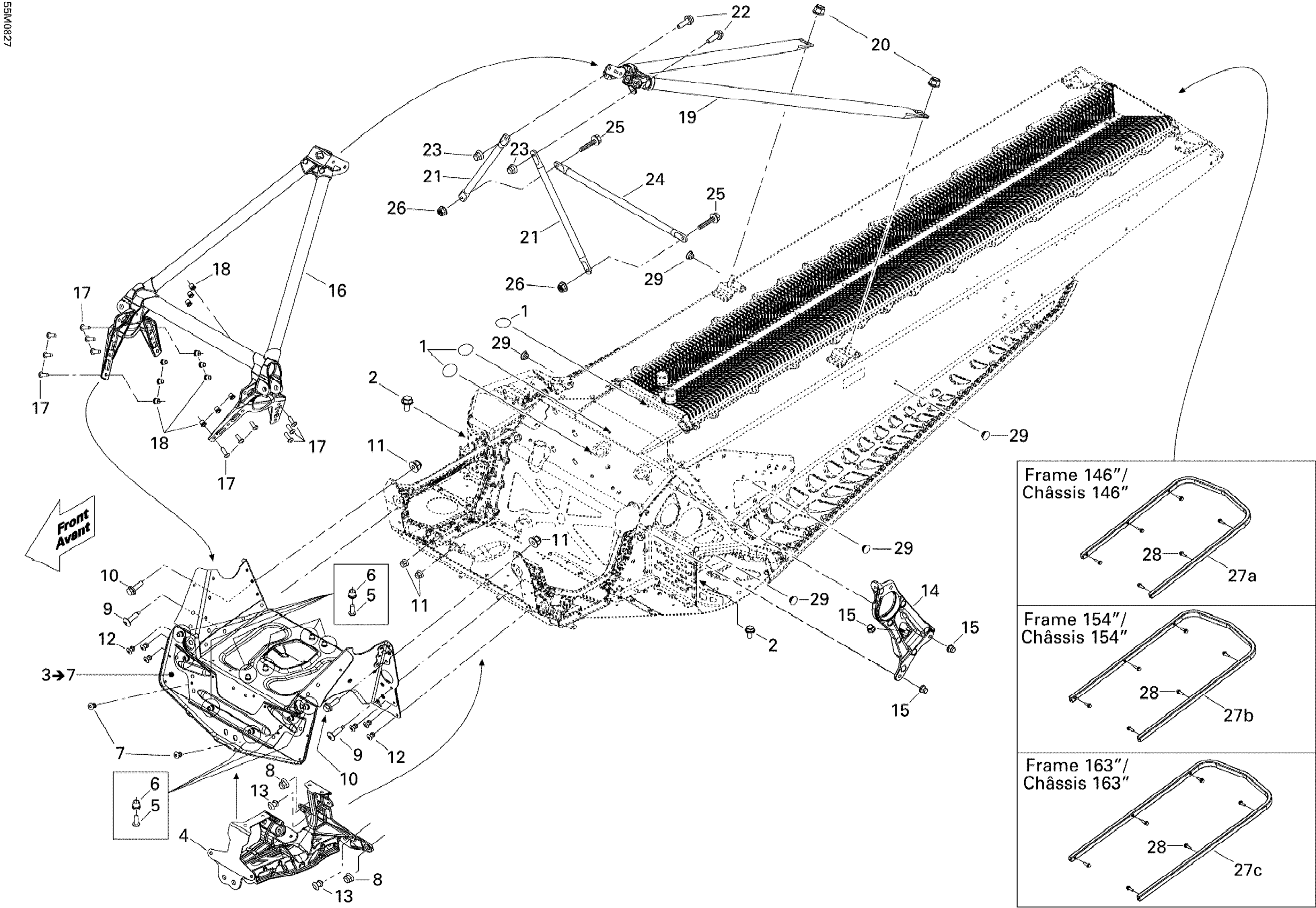

Ski-Doo Summit X 800R, 2008 09- Frame and Components Diagram

Adhesive Patch

518325560

$4.69

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

Cross Member S Module | Includes 300a to 300b

518328320

$499.99

Front Suspension Support

518327487

$289.99

Hex. Flange Screw M6 X 20

207662044

$2.00

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Stavex Rivet

293150144

$0.82

Hex. Flange Elastic Nut M8

233281414

$1.47

Hexagonal Head Screw

210262050

$2.11

Hex. Flange Screw M6 X 20

207662044

$2.00

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Stavex Rivet

293150144

$0.82

Ornit Rivet 6,5 X 14.5

293150266

$2.40

Driven Pulley Support This part replaces 518327133.

518327460

$109.99

Hex. Flange Elastic Nut M8

233281414

$1.47

Front Member

518326970

$299.99

Hex. Flange Screw M6 X 20

207662044

$2.00

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Rear Member

518326559

$264.99

Hex. Flange Elastic Nut M8

233281414

$1.47

Upper Lateral Column Support

518325114

$22.49

Hex. Flange Screw M6 X 20

207662044

$2.00

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Center Column Support

518325115

$22.49

Hex. Flange Screw M6 X 25

207662544

$0.64

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Rear Bumper, 146"

518325374

$111.49

Clear Rear Bumper, 154" | 800R PTEK 154"

518324982

$111.49

CLEAR REAR BUMPER, 163 - Call your local BRP dealership | Track 163"

518325375

Unavailable

Hex. Flange Screw M6 X 20

207662044

$2.00

Full Moon Dart 8 mm

293730041

$2.21
