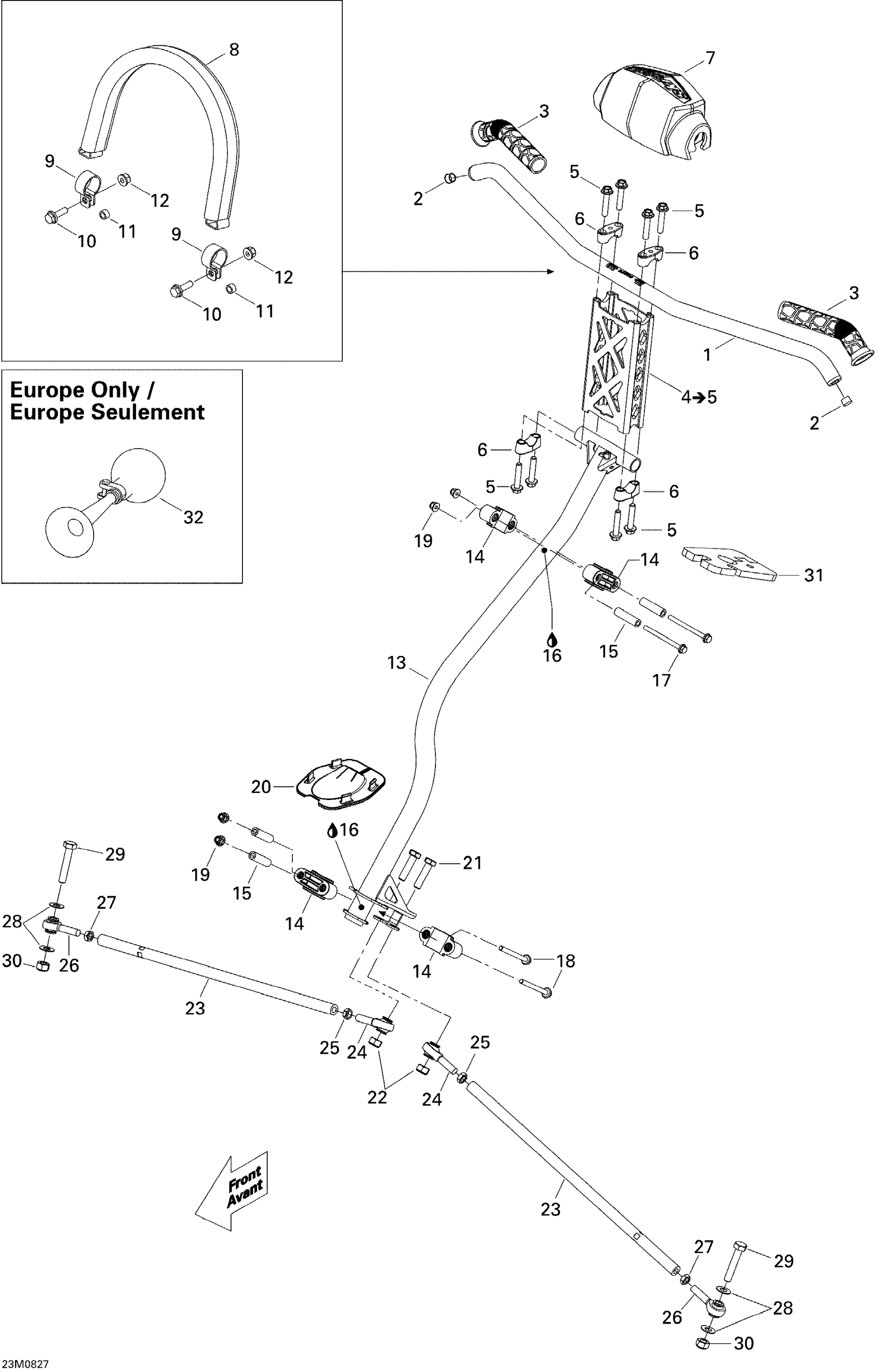

Ski-Doo Summit X 800R, 2008 Steering Diagram

#

Description
Price

1

Handle Bar, Non Dyed Clear Anodizing

506152709

$81.51

2

Cap

572051500

$5.38

3

Grip

506152486

$14.71

4

Extension Kit ( 205mm ) This part replaces 860200269.

860200821

$86.99

5

Hex. Flange Screw M8 x 40

250000285

$0.77

6

Steering Support | Includes 40 to 40a

506152751

$10.09

7

Steering Pad

506152192

$54.58

8

Strap Ass'y | Package XMR

506152115

$43.05

9

Black Support Plate

506152536

$8.60

10

Hex. Flange Screw M6 X 20

207662084

$0.83

11

Bushing | Package XMR

506152156

$5.35

12

Hex. Flange Elastic Nut M6

233261494

$1.26

13

Steering Column

506152964

$189.20

14

Half-Housing

506152293

$10.23

15

Housing Bushing

506152297

$10.23

16

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

17

Hex. Flange Screw M6 X 70

207667056

$3.61

18

HEX. FLANGED SCREW M6 X 65 - Call your local BRP dealership

207666534

Unavailable

19

Elastic Flange Nut M6 X 1.0

233261416

$1.74

20

Plate

506152163

$10.23

21

Hex. Screw M10 X 1.5 X 40

207004034

$1.74

22

Elastic Stop Nut M10

232500416

$1.56

23

Tie-Rod

506152498

$36.89

24

LH Thread Ball Joint

506152081

$39.97

25

LH Threaded Hex. Jam Nut M10

250100016

$0.72

26

RH Threaded Ball Joint

506152019

$39.97

27

RH Threaded Hex. Jam Nut M10

732610010

$0.72

28

Washer

506152194

$4.42

29

Hex. Screw M10 X 55

207005544

$1.85

30

Elastic Stop Nut M10

232500416

$1.56

31

CUSHION - Call your local BRP dealership

506152334

Unavailable

32

Horn

549011291

$35.35
