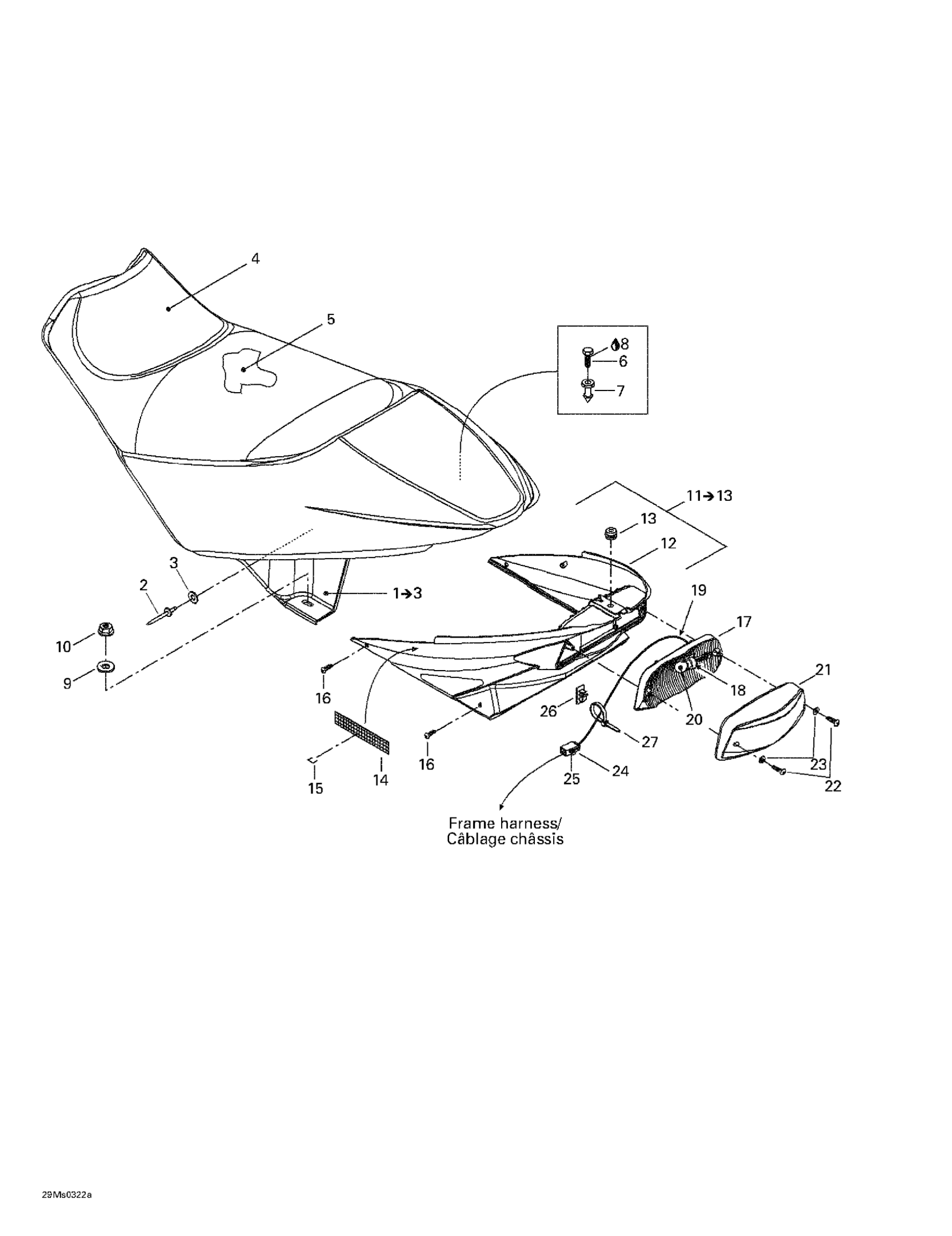

Ski-Doo Summit X 800 HO, 2003 09- Seat Diagram

#

Description
Price

1

Seat base ass'y | Includes 1 - 3.

510004164

Unavailable

2

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

3

Flat Washer

517225900

$0.18

4

Seat cover

510004166

Unavailable

5

Seat foam

510004210

Unavailable

6

Hex. Screw M5 X 14

207151444

$0.87

7

Knob

517303439

$4.55

8

Loctite 243, 10 ml

293800060

$21.49

9

Flat Washer 8 mm

234082410

$1.47

10

Hex. Elastic Stop Nut M8

232581414

$0.56

11

Trunk ass'y | Includes 11 - 13.

510004258

Unavailable

12

TRUNK - Call your local BRP dealership

510004138

Unavailable

13

Grommet

517302841

$7.89

14

VELCRO 1/2? - Call your local BRP dealership

415110900

Unavailable

15

Staple

510004183

Unavailable

16

Phillips Screw M6 X 16

250000123

Unavailable

17

REFLECTOR - Call your local BRP dealership

510004018

Unavailable

18

Rubber Damper

414979411

Unavailable

19

Fitting

515175940

Unavailable

20

Bulb

520000758

$9.10

21

Lens

511000315

$36.99

22

PHILLIPS TAPPING SCREW 3.9 X 25 - Call your local BRP dealership

209632580

Unavailable

23

Washer - Call your local BRP dealership

414516400

Unavailable

24

Male Housing, 3 Circuits

515175494

$16.18

25

Male Terminal

515175232

$1.58

26

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

27

Tie Wrap 142 mm

293750002

$1.25
