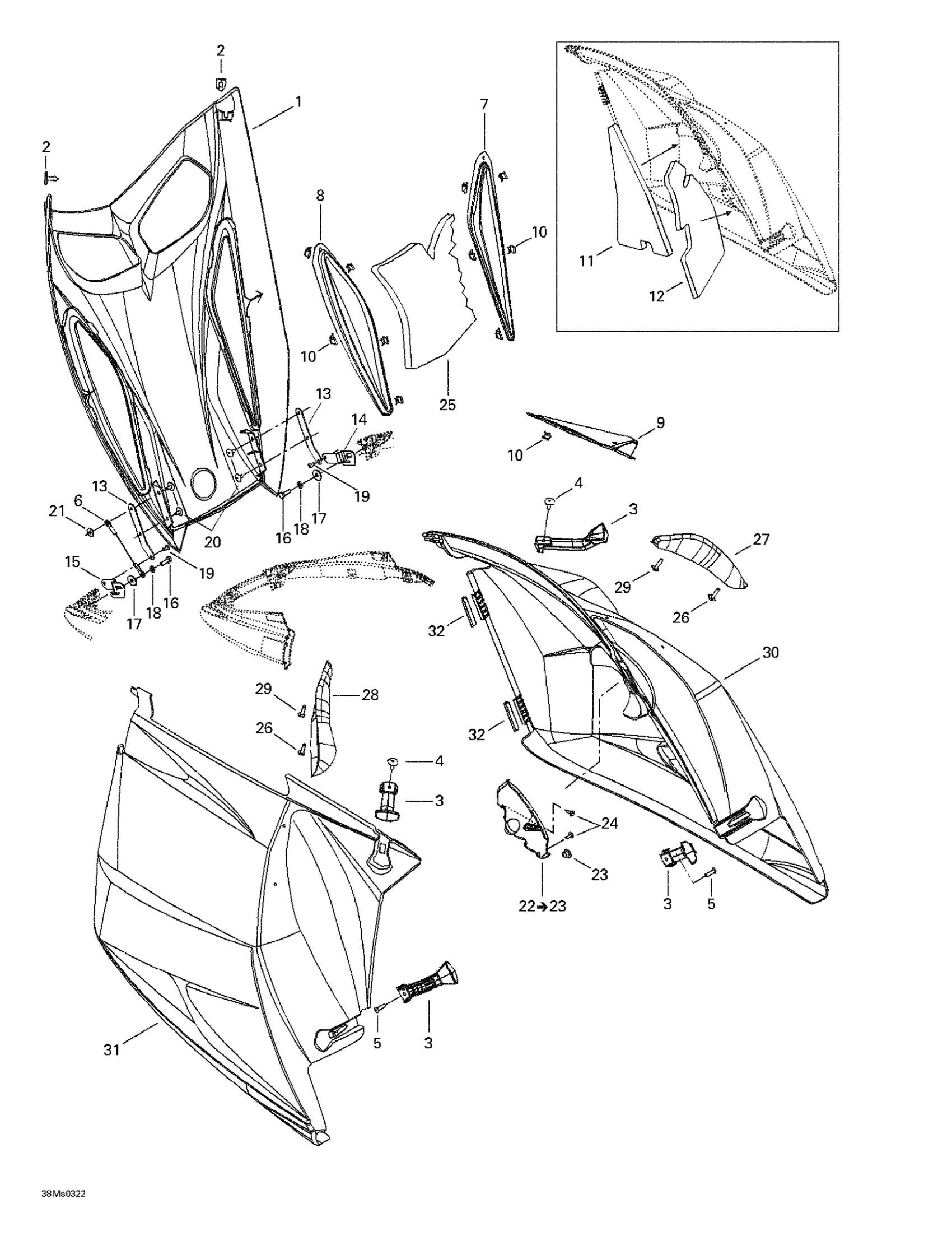

Ski-Doo Summit X 800 HO, 2003 09- Hood Diagram

#

Description
Price

1

HOOD, ORANGE, B-228 - Call your local BRP dealership

517302790

Unavailable

2

ROD_RETAINING - Call your local BRP dealership

517302543

Unavailable

3

Panel Latch

517302448

$14.99

4

Pop Rivet 3/16”

293150087

$0.93

5

Not Available As Spare Part - Friction Washer

Unavailable

6

RETAINER CABLE - Call your local BRP dealership

517302673

Unavailable

7

RH HOOD GRILL - Call your local BRP dealership

517302936

Unavailable

8

LH HOOD GRILL - Call your local BRP dealership

517302937

Unavailable

9

RH PANEL GRILL - Call your local BRP dealership

517302938

Unavailable

10

CLIP - Call your local BRP dealership

517302789

Unavailable

11

Front Foam

517302512

Unavailable

12

Rear Foam

517302513

Unavailable

13

UPPER HALF-HINGE - Call your local BRP dealership

517302544

Unavailable

14

RH HINGE ASS'Y - Call your local BRP dealership

517303668

Unavailable

15

LH Lower Half-Hinge

517302445

Unavailable

16

Hex. Screw M6 X 18

207161844

$0.76

17

Flat Washer

224061121

$0.53

18

Lock Washer M6, Black

234161471

$0.53

19

Avex Rivet

390909200

$0.30

20

Pop Rivet 3/16"

390406500

$0.88

21

Flat Washer

517225900

$0.18

22

RH Console | Includes 22 - 23.

517302552

Unavailable

23

Black, Cap

275500241

$3.49

24

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

25

Foam

517302557

Unavailable

26

Phillips Screw K40 X 16

250000723

$0.98

27

RH AIR DEFLECTOR - Call your local BRP dealership

517302800

Unavailable

28

LH AIR DEFLECTOR - Call your local BRP dealership

517302801

Unavailable

29

Plastite Screw Type K-40, M4 X 25

250000101

$3.49

30

RH Panel

517302802

Unavailable

31

LH PANEL, BLACK, B-160 - Call your local BRP dealership | Black/Black

517302803

Unavailable

32

Hinge Lock

517302823

$13.99
