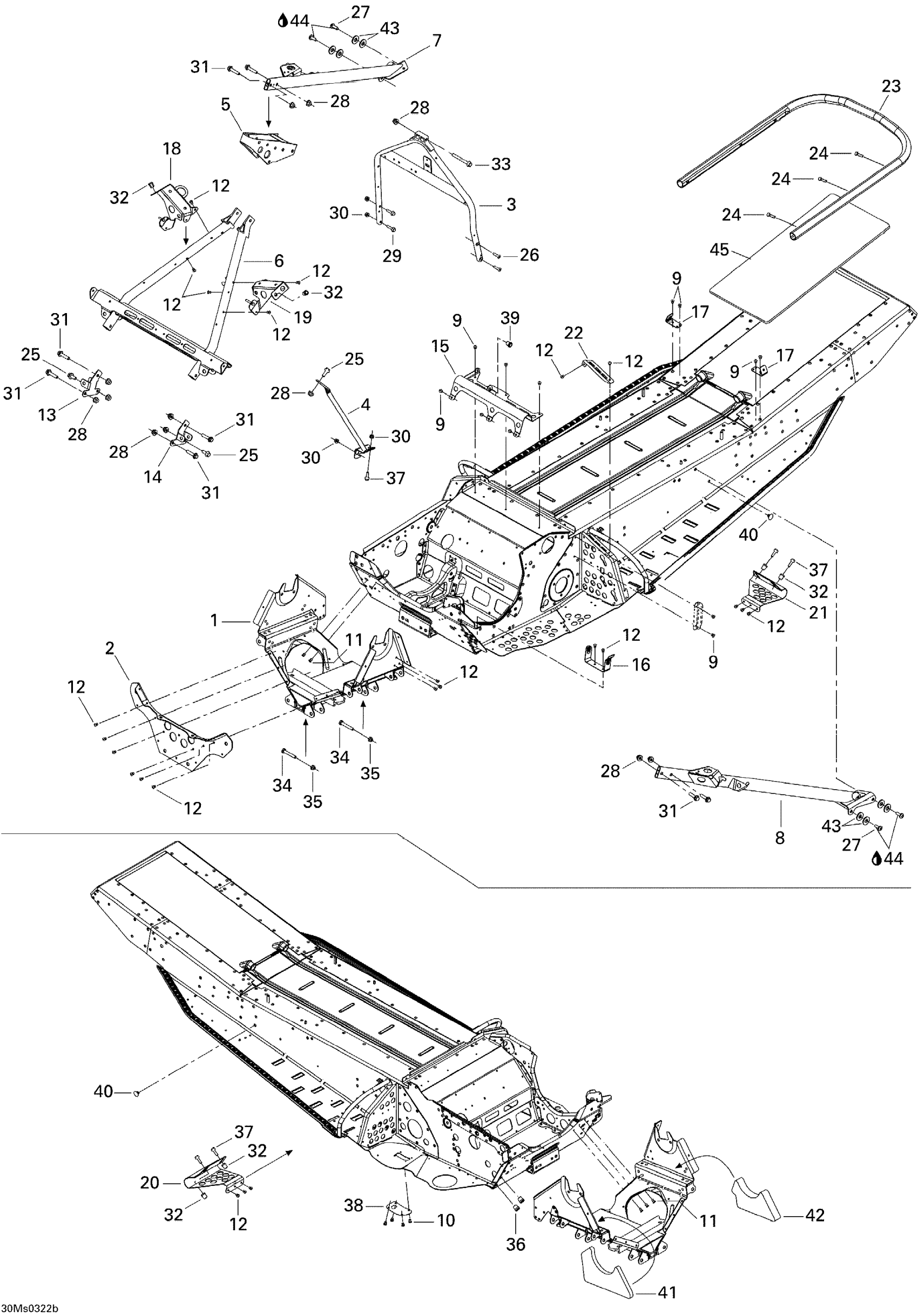

Ski-Doo Summit X 800 HO, 2003 09- Frame - Front And Rear Diagram

#

Description
Price

1

Front Cross-Member

518323246

Unavailable

2

Front Plate

518322166

Unavailable

3

Handle Support

518323394

Unavailable

4

BRACE, BLACK - Call your local BRP dealership

518323472

Unavailable

5

Bracket block

518323663

Unavailable

6

Upper Cross-Member

518323251

Unavailable

7

RH Member

518323352

Unavailable

8

LH MEMBER - Call your local BRP dealership

518323354

Unavailable

9

Pop Rivet 3/16"

390402200

$0.35

10

Pop Rivet 3/16"

390402400

$0.35

11

Avex Rivet

390909100

$0.30

12

Avex Rivet

390909200

$0.30

13

RH SHOCK BRACKET - Call your local BRP dealership

518322461

Unavailable

14

LH SHOCK BRACKET - Call your local BRP dealership

518322462

Unavailable

15

INTAKE AIR ADMISSION SUPPORT - Call your local BRP dealership

518323532

Unavailable

16

GUARD BELT BRACKET, BLACK - Call your local BRP dealership

518322726

Unavailable

17

Trunk Bracket, Black

518323274

Unavailable

18

RH Console Support

518322961

Unavailable

19

LH CONSOLE SUPPORT - Call your local BRP dealership

518322962

Unavailable

20

RH Toe Hold

518323377

Unavailable

21

LH Toe Hold

518323378

Unavailable

22

PLATE, BLACK - Call your local BRP dealership

518323105

Unavailable

23

Rear bumper | HIGHMARK & HIGHMARK X Summit 700. Summit 800 HO.

518322431

Unavailable

24

Hex. Screw M8 X 20

236282084

$1.48

25

Hex. Flange Screw M8 X 20

207682044

$1.15

26

Socket Head Screw M6 X 20, Scotch Grip

205862044

$4.12

27

Not Available As Spare Part - Friction Washer

Unavailable

28

Hex. Flange Elastic Nut M8

233281414

$1.47

29

Hex. Flange Screw M6 X 25

207662544

$0.64

30

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

31

Hex. Flange Screw M8 X 35

207683544

$1.69

32

Insert

293450275

$12.99

33

Hex. Flange Screw M8 X 70

207687044

$7.41

34

Hex. Screw M8 X 50

207085044

$1.48

35

Hex. Elastic Stop Nut M8

232581414

$0.56

36

Insert

293450166

$4.29

37

Hex. Flange Screw M6 X 20

207662044

$2.00

38

Plate

518323506

Unavailable

39

Threaded Insert M6 X 1.0

250100242

Unavailable

40

Panel Fastener

518321954

$7.69

41

RH FRONT FOAM - Call your local BRP dealership

518323453

Unavailable

42

LH FRONT FOAM - Call your local BRP dealership

518323007

Unavailable

43

Stainless Steel Flat Washer 8 mm

234081670

$0.67

44

Loctite 243, 10 ml

293800060

$21.49

45

Carpet

518324011

Unavailable
