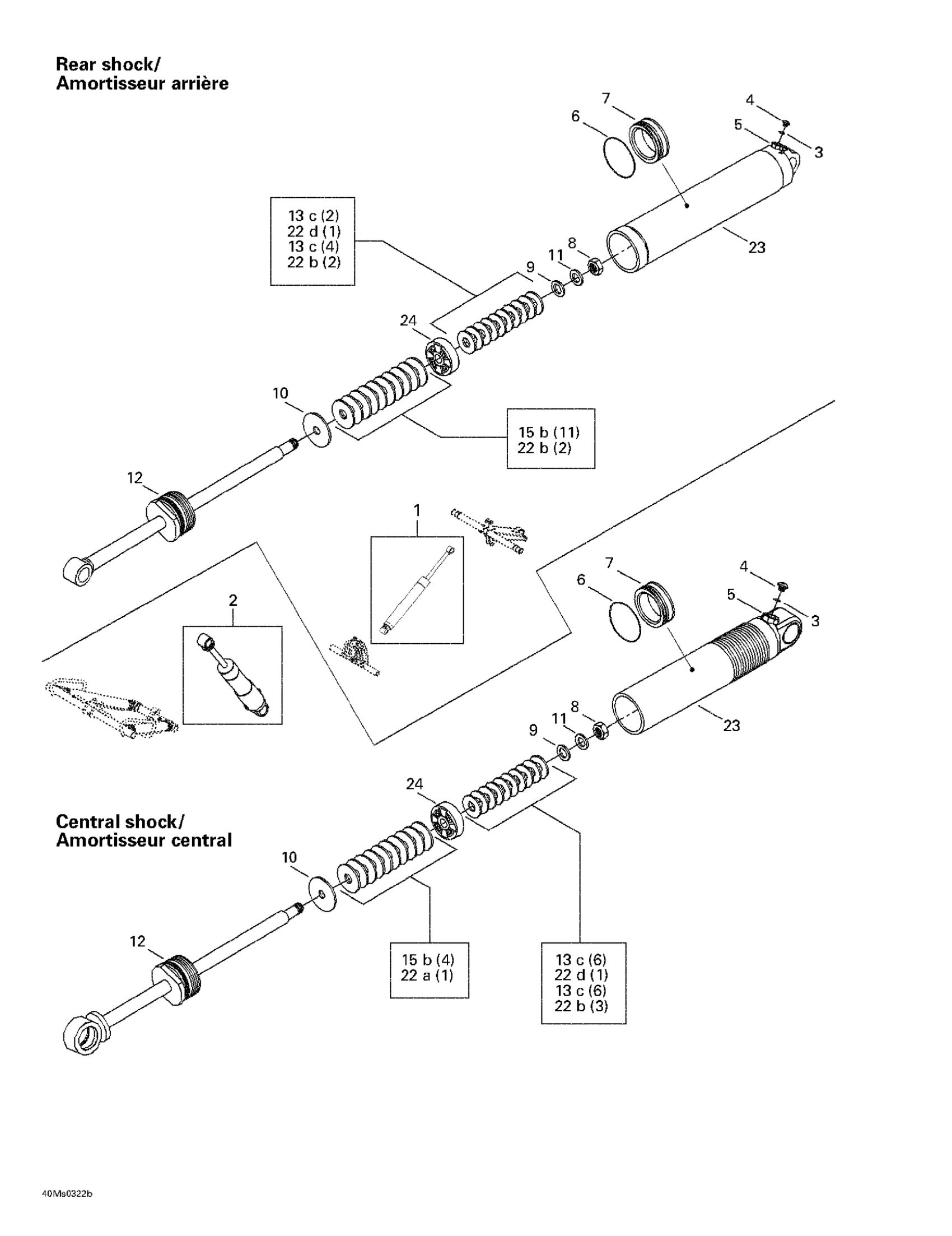

Ski-Doo Summit X 800 HO, 2003 08- Rear Take Apart Shocks Diagram
#
1
Rear shock | X & HIGHMARK X Summit 700. Summit 800.
503190024
Unavailable
2
Center shock | X & HIGHMARK X Summit 700. Summit 800.
503190017
Unavailable
7
Free Piston
415097900
Unavailable
8
Not Available As Spare Part - Friction Washer
Unavailable
9
Not Available As Spare Part - Friction Washer
Unavailable
10
Not Available As Spare Part - Friction Washer
Unavailable
11
Not Available As Spare Part - Friction Washer
Unavailable
12
Not Available As Spare Part - Friction Washer
Unavailable
13A
Leaf Valve Ø30 X 0.254 (C36)
415039100
Unavailable
13B
Leaf Valve Ø30 X 0.203 (C36)
414888318
Unavailable
13C
Leaf Valve Ø30 X 0.152 (C36)
414888319
Unavailable
14A
Leaf Valve Ø28 X 0.203 (C36)
414888320
Unavailable
14B
Leaf Valve Ø28 X 0.152 (C36)
414888321
Unavailable
15A
Leaf Valve Ø26 X 0.254 (C36)
415039000
Unavailable
16B
Leaf Valve Ø26 X 0.203 (C36)
414888322
Unavailable
15C
Leaf Valve Ø26 X 0.152 (C36)
414888323
Unavailable
16A
Leaf Valve Ø22 X 0.203 (C36)
414888324
Unavailable
16B
Leaf Valve Ø22 X 0.152 (C36)
414888325
Unavailable
17A
Leaf Valve Ø21 X 0.114 (C36)
414888340
Unavailable
17B
Not Available As Spare Part - Friction Washer
Unavailable
18A
Leaf Valve Ø20 X 0.203 (C36)
414888326
Unavailable
18B
Leaf Valve Ø20 X 0.152 (C36)
414888327
Unavailable
18C
Leaf Valve Ø20 X 0.114 (C36)
414888328
Unavailable
19A
Leaf Valve Ø18 X 0.203 (C36)
414888329
Unavailable
19B
Leaf Valve Ø18 X 0.152 (C36)
414888330
Unavailable
20A
Leaf Valve Ø16 X 0.254 (C36)
414888331
Unavailable
20B
Leaf Valve Ø16 X 0.203 (C36)
414888332
Unavailable
20C
Leaf Valve Ø16 X 0.152 (C36)
414888333
Unavailable
20D
Leaf Valve Ø16 X 0.114 (C36)
415038900
Unavailable
21A
Leaf Valve Ø16 X 0.254 (C36)
414888331
Unavailable
21B
Leaf Valve Ø16 X 0.203 (C36)
414888332
Unavailable
21C
Leaf Valve Ø16 X 0.152 (C36)
414888333
Unavailable
21D
Leaf Valve Ø16 X 0.114 (C36)
415038900
Unavailable
22A
Leaf Valve Ø12 X 0.254 (C36)
503189538
Unavailable
22B
Leaf Valve Ø12 X 0.152 (C36)
414888339
Unavailable
22C
Leaf Valve Ø12 X 0.203 (C36)
414888338
Unavailable
22D
Leaf Valve Ø12 X 0.114 (C36)
415038800
Unavailable
23
Not Available As Spare Part - Friction Washer
Unavailable
24
Not Available As Spare Part - Friction Washer
Unavailable
