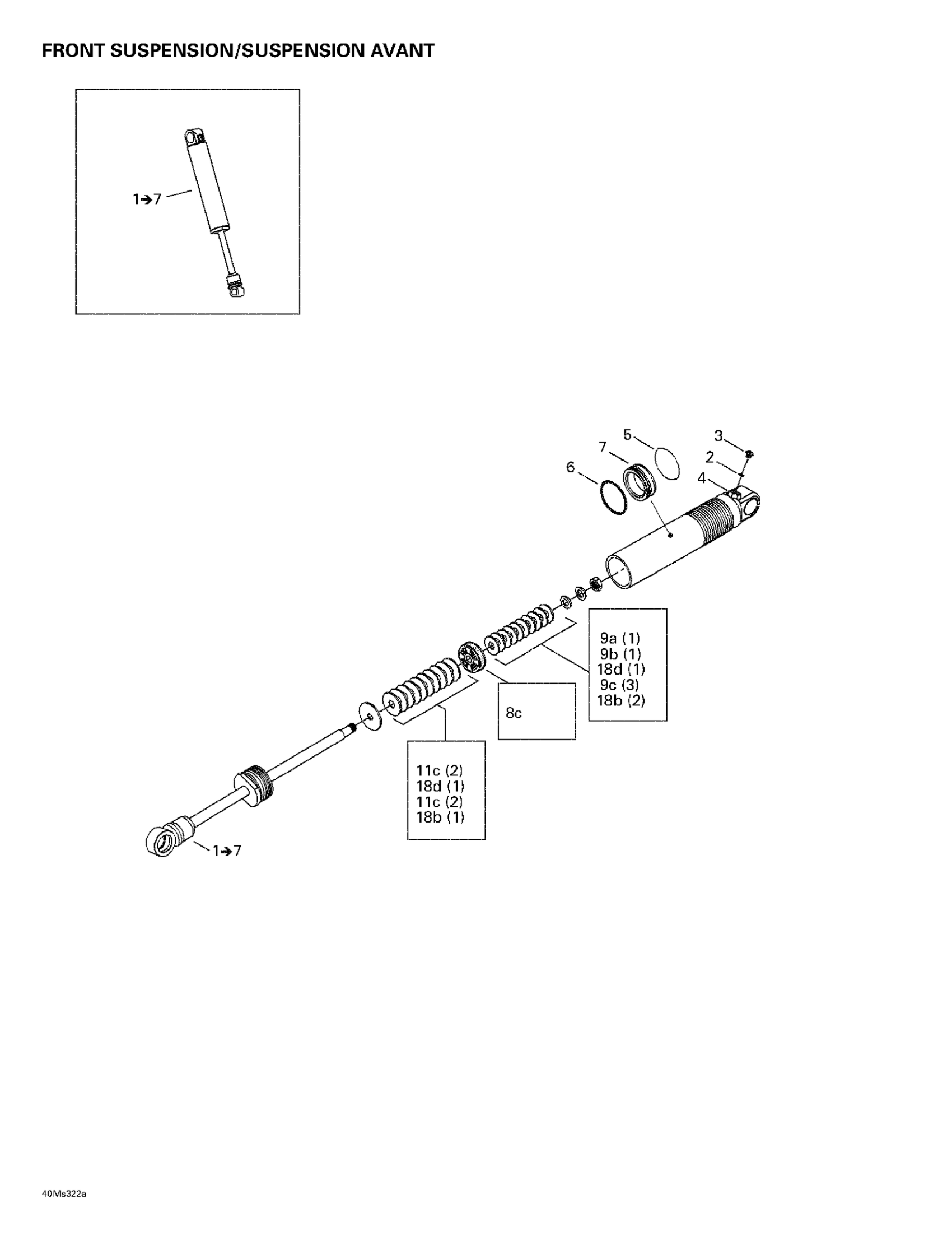

Ski-Doo Summit X 800 HO, 2003 07- Front Take Apart Shocks Diagram
#
1
Front Shock | X, Highmark X, HM Xtreme
505071135
Unavailable
7
FREE PISTON - Call your local BRP dealership
503189309
Unavailable
8A
Piston (2 X 0.3-6) (C36)
414888307
Unavailable
8B
Piston (2 X 0.3-4) (C36)
414888306
Unavailable
8C
Piston (2 X 0.3-2) (C36)
414888305
Unavailable
8D
Piston (C36)
414888304
Unavailable
9A
Leaf Valve Ø30 X 0.254 (C36)
415039100
Unavailable
9B
Leaf Valve Ø30 X 0.203 (C36)
414888318
Unavailable
9C
Leaf Valve Ø30 X 0.152 (C36)
414888319
Unavailable
10A
Leaf Valve Ø28 X 0.203 (C36)
414888320
Unavailable
10B
Leaf Valve Ø28 X 0.152 (C36)
414888321
Unavailable
11A
Leaf Valve Ø26 X 0.254 (C36)
415039000
Unavailable
11B
Leaf Valve Ø26 X 0.203 (C36)
414888322
Unavailable
11C
Leaf Valve Ø26 X 0.152 (C36)
414888323
Unavailable
12A
Leaf Valve Ø22 X 0.203 (C36)
414888324
Unavailable
12B
Leaf Valve Ø22 X 0.152 (C36)
414888325
Unavailable
13A
Leaf Valve Ø21 X 0.114 (C36)
414888340
Unavailable
14A
Leaf Valve Ø20 X 0.203 (C36)
414888326
Unavailable
14B
Leaf Valve Ø20 X 0.152 (C36)
414888327
Unavailable
14C
Leaf Valve Ø20 X 0.114 (C36)
414888328
Unavailable
15A
Leaf Valve Ø18 X 0.203 (C36)
414888329
Unavailable
15B
Leaf Valve Ø18 X 0.152 (C36)
414888330
Unavailable
16A
Leaf Valve Ø16 X 0.254 (C36)
414888331
Unavailable
16B
Leaf Valve Ø16 X 0.203 (C36)
414888332
Unavailable
16C
Leaf Valve Ø16 X 0.152 (C36)
414888333
Unavailable
16D
Leaf Valve Ø16 X 0.114 (C36)
415083900
Unavailable
17A
Leaf Valve Ø15 X 0.254 (C36)
414888334
Unavailable
17B
Leaf Valve Ø15 X 0.203 (C36)
414888335
Unavailable
17C
Leaf Valve Ø15 X 0.152 (C36)
414888336
Unavailable
17D
Leaf Valve Ø15 X 0.114 (C36)
414888337
Unavailable
18A
Leaf Valve Ø12 X 0.254 (C36)
503189538
Unavailable
18B
Leaf Valve Ø12 X 0.203 (C36)
414888338
Unavailable
18C
Leaf Valve Ø12 X 0.152 (C36)
414888339
Unavailable
18D
Leaf Valve Ø12 X 0.114 (C36)
415038800
Unavailable
