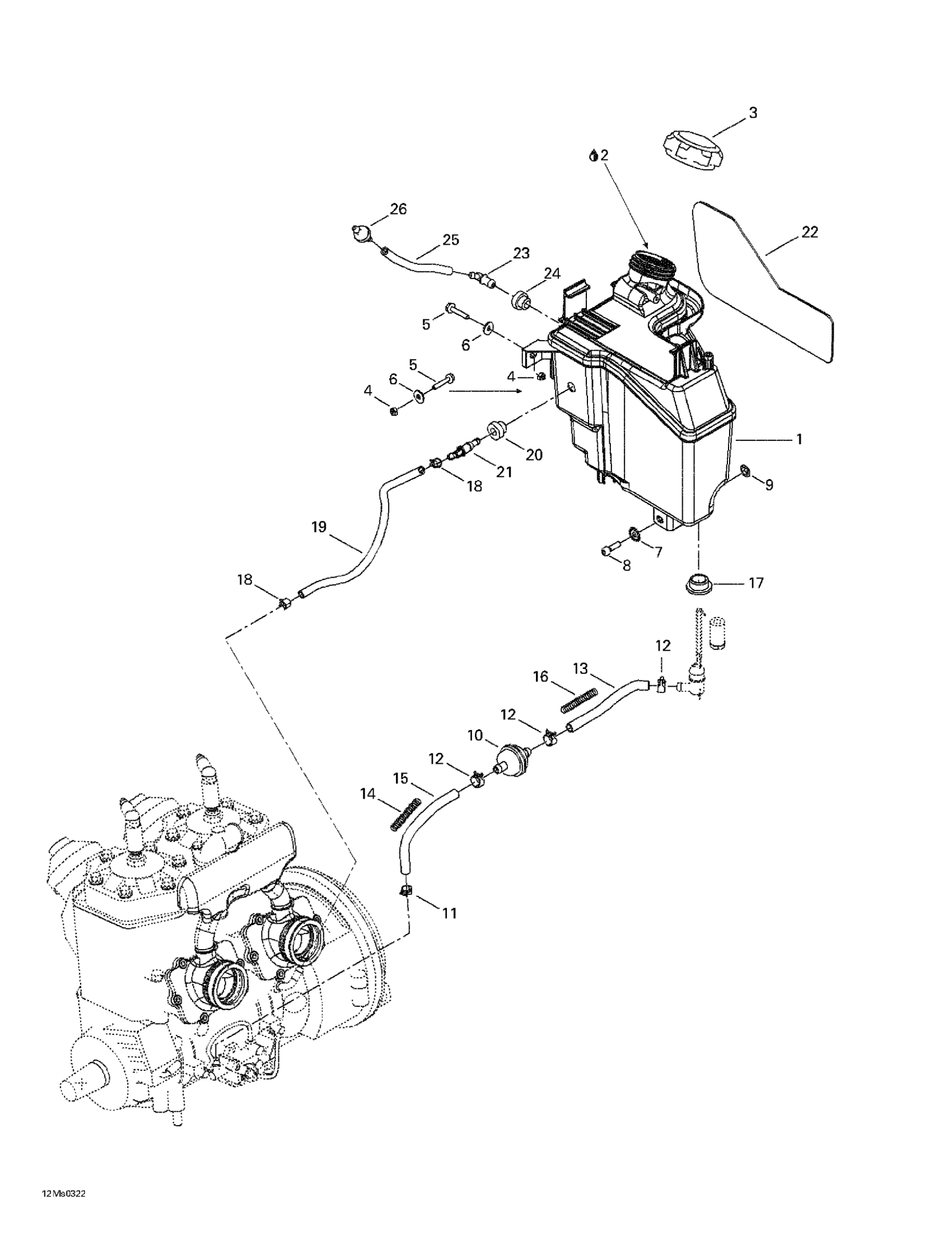

Ski-Doo Summit X 800 HO, 2003 Oil Tank Diagram

#

Description
Price

1

OIL TANK - Call your local BRP dealership

519000067

Unavailable

2

OIL PRE-MIX 12 X 500ML - Call your local BRP dealership This part replaces 413803100.

293600120

Unavailable

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

Unavailable

2T Snowmobile Premium Mineral Oil This part replaces 413803000.

779120

Unavailable

OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.

779123

Unavailable

OIL 2T 3X1G SYNTH - Call your local BRP dealership This part replaces 293600046.

293600133

Unavailable

OIL 2T E-TEC SYNTHETIC 55 GAL/205L This part replaces 293600047.

779130

Unavailable

OIL 2T 12X1 SYNTH - Call your local BRP dealership This part replaces 293600045.

293600132

Unavailable

3

CAP - Call your local BRP dealership

519000033

Unavailable

4

Elastic Stop Nut M6

232561414

Unavailable

5

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

6

Flat Washer

250200082

Unavailable

7

Lock Washer Serrated M6

250200041

Unavailable

8

Socket Head Screw M6 X 20

205062044

$1.07

9

Push Nut

732610072

Unavailable

10

Filter

414536500

$3.25

11

Spring Clamp

414420700

Unavailable

12

Spring Clamp

414415200

$0.83

13

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

14

SPRING - Call your local BRP dealership

519000064

Unavailable

15

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

16

SPRING - Call your local BRP dealership

519000065

Unavailable

17

Insulating Ring

570023000

Unavailable

18

Spring Clamp

414554800

$0.83

19

Polyurethane Hose 10000Mm Long

219704410

Unavailable

20

Grommet

709200285

$8.38

21

Male Connector

414580700

Unavailable

22

REFLECTIVE SHEET - Call your local BRP dealership

519000054

Unavailable

23

Male Connector

414580700

Unavailable

24

Grommet

513032908

$8.74

25

Polyurethane Hose 10000Mm Long

219704410

Unavailable

26

Check Valve

275500398

Unavailable
