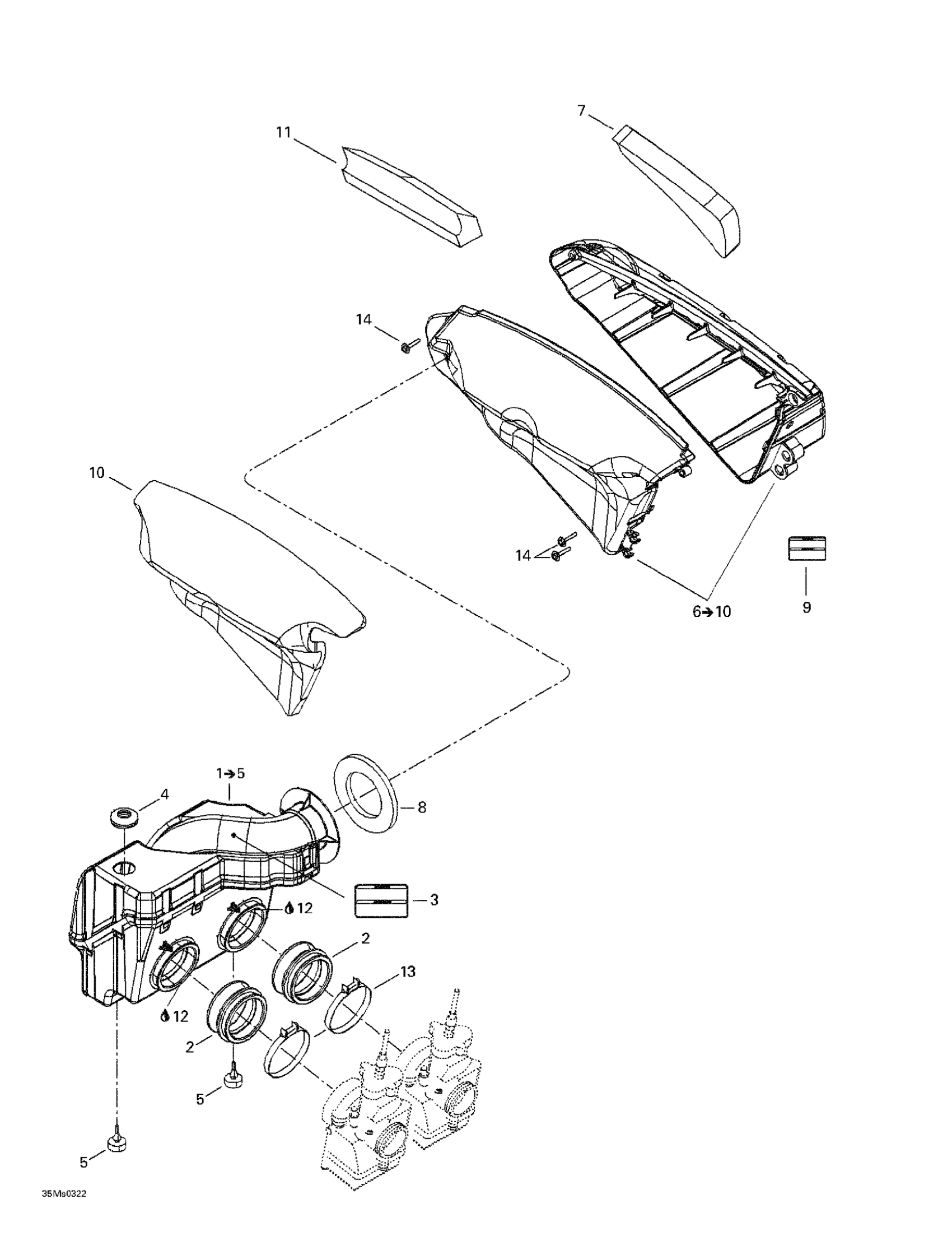

Ski-Doo Summit X 800 HO, 2003 Air Intake System Diagram

#

Description
Price

1

Chamber ass'y | Includes 1 - 5.

508000333

Unavailable

2

Air Intake Adaptor

508000132

Unavailable

3

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

4

GROMMET - Call your local BRP dealership

570065500

Unavailable

5

Rubber Stopper

708000759

$4.19

6

Chamber Ass’Y | Includes 4 - 8.

508000302

Unavailable

7

Inner Foam

508000145

Unavailable

8

OUTER FOAM - Call your local BRP dealership

508000199

Unavailable

9

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

10

OUTER FOAM - Call your local BRP dealership

508000310

Unavailable

11

Air Filter

508000394

$51.99

12

OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.

779123

Unavailable

13

Gemi Clamp

508000346

$10.33

14

Plastite Screw Type K-40, M4 X 25

250000101

$3.49
