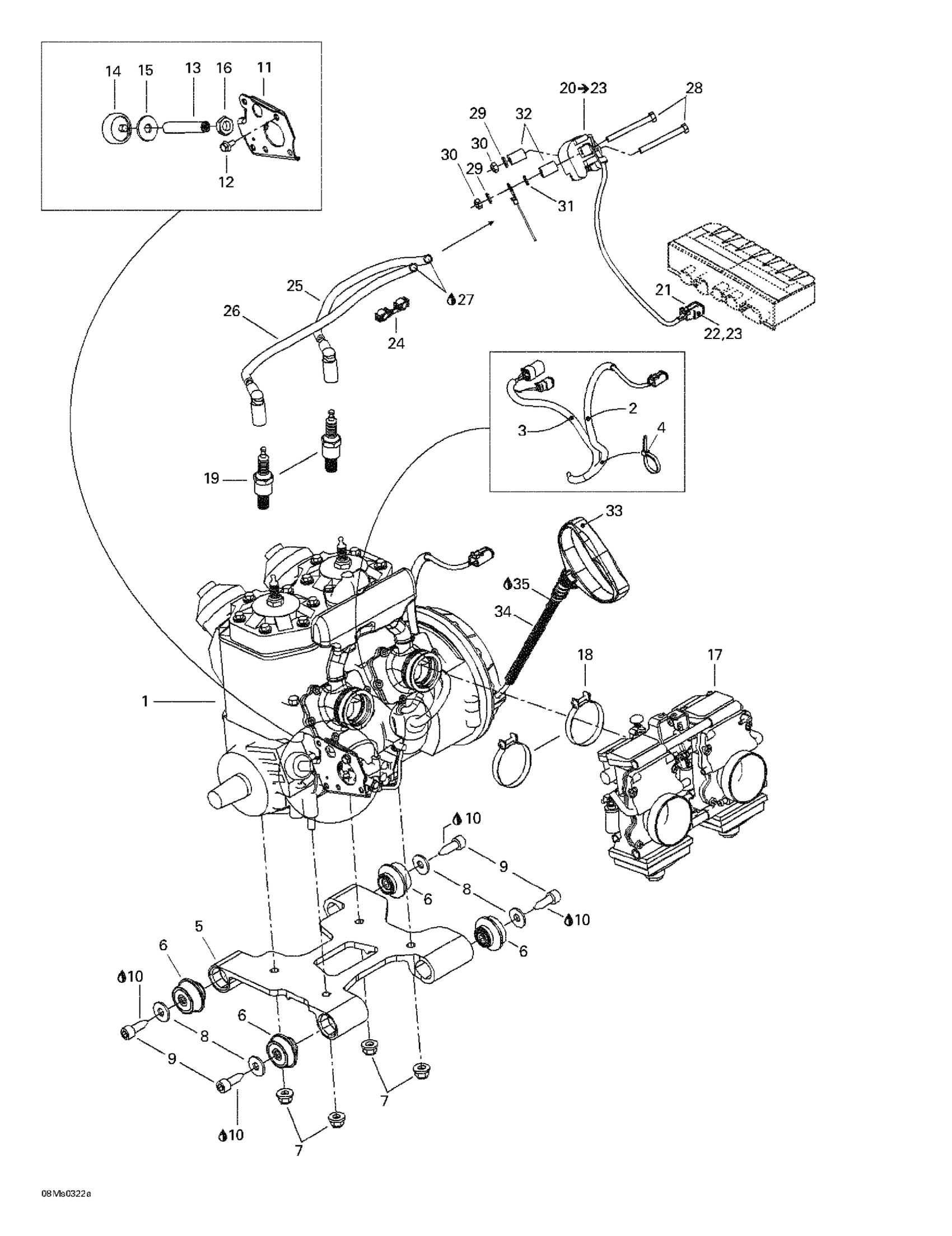

Ski-Doo Summit X 800 HO, 2003 01- Engine 1 Diagram

<<793>> engine (RER)

400702620

Unavailable

<<793>> engine (STD)

400702621

Unavailable

Was 409901800 Tubing (13 mm)

219704400

$14.49

Tubing 10 MM 1000MM Long

219704407

$2.79

Tie Wrap 142 mm

293750002

$1.25

Engine Support

512059754

Unavailable

Rubber Mount

512059691

$47.99

Hex. Flange Elastic Nut M10

233201414

$1.58

Flat Washer M10 | 4X4

250200014

$1.49

Screw M10 X 30

250000094

$24.49

Sealant LOCTITE 222MS - Call your local BRP dealership

413703400

Unavailable

Plate

512059747

Unavailable

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

STOPPER SCREW - Call your local BRP dealership

250500007

Unavailable

STOPPER - Call your local BRP dealership

512059610

Unavailable

WASHER - Call your local BRP dealership

512059057

Unavailable

Hex. Jam Nut M14

232170411

$1.48

Carburetor kit XTM40-136

403138757

Unavailable

Gemi Clamp

512059835

$11.60

Spark Plug NGK BR9ECS-5

512059552

$10.59

IGNITION COIL - Call your local BRP dealership | Includes 23 to 26 / 500 SS & 600 H.O.

512059564

Unavailable

Female Terminal Housing, 2 Circuits

515175670

$8.39

Female Lock, 2 Circuits

515175707

Unavailable

Female Terminal

278000632

$2.09

Plastic Clip, Spark Plug Wire

410914600

$5.61

CABLE ASSY, 300 MM - Call your local BRP dealership

512059695

$57.99

Cable Ass’y, 375 mm

512059696

$80.99

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

Hex. Screw M6 X 60

207066044

$0.67

Flat Washer 6 mm

234061410

$1.36

Elastic Stop Nut M6

232561414

$0.55

EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership

394001900

Unavailable

Spacer

517203200

$16.18

Starter Grip

572084400

$14.83

ROPE GUIDE - Call your local BRP dealership

512059535

Unavailable

Injection oil (205 liter)

403803200

Unavailable
