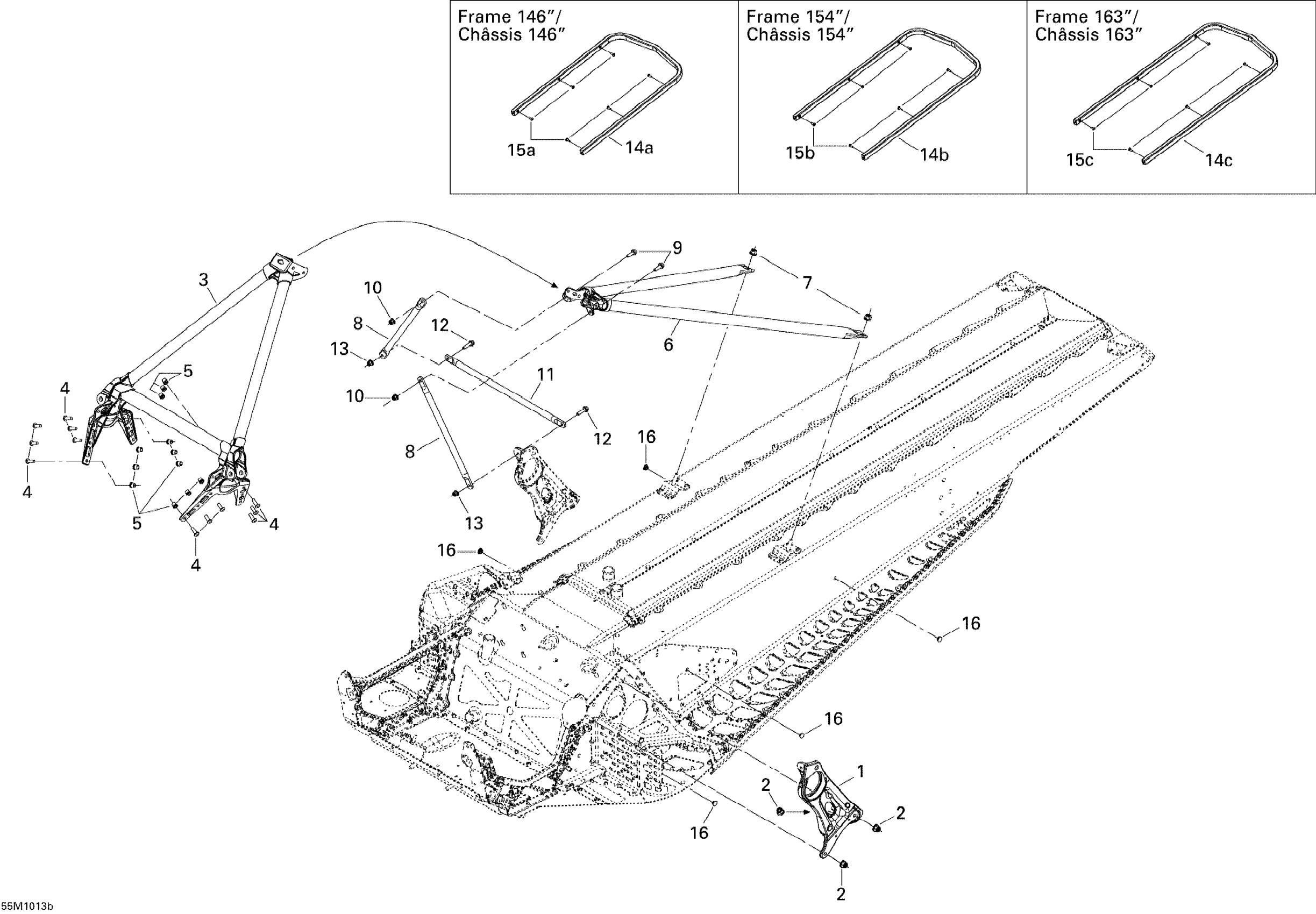

Ski-Doo Summit X 600HO ETEC, 2010 09- Frame and Components 2 Diagram

#

Description
Price

1

Driven Pulley Support This part replaces 518327133.

518327460

$109.99

2

Hex. Flange Elastic Nut M8

233281414

$1.47

3

Front Member

518326970

$299.99

4

Hex. Flange Screw M6 X 20

207662044

$2.00

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

6

Rear Member

518326559

$264.99

7

Hex. Flange Elastic Nut M8

233281414

$1.47

8

Upper Lateral Column Support

518325114

$22.49

9

Hex. Flange Screw M6 X 20

207662044

$2.00

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

11

Center Column Support

518325115

$22.49

12

Hex. Flange Screw M6 X 25

207662544

$0.64

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

14a

TITAN GRAY REAR BUMPER, 146 - Call your local BRP dealership

518326270

Unavailable

14b

TITAN GRAY REAR BUMPER, 154 - Call your local BRP dealership

518326271

Unavailable

14c

TITAN GRAY REAR BUMPER, 163 - Call your local BRP dealership

518326272

Unavailable

15a

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

15b

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

15c

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

16

Full Moon Dart 8 mm

293730041

$2.21

16

Black, Dart 8 mm

293730047

$2.21
