Description

Price

1

Rear Shock | X

503192208

Unavailable

2

FREE PISTON - Call your local BRP dealership

503189309

Unavailable

3

O-Ring

414888312

$17.29

4

Piston Ring

503189308

$79.49

5

Air Valve

505070398

$20.99

6

Screw | Not Shown

505070399

$4.12

7

O-Ring

505070400

$4.54

8

CENTER SHOCK - Call your local BRP dealership | X

503192210

Unavailable

9

FREE PISTON - Call your local BRP dealership

503189309

Unavailable

10

O-Ring

414888312

$17.29

11

Piston Ring

503189308

$79.49

12

Air Valve

505070398

$20.99

13

Screw | Not Shown

505070399

$4.12

14

O-Ring

505070400

$4.54

15

SPRING COLLAR - Call your local BRP dealership | MX-Z 552 Europe

414888316

Unavailable

16

Black, Spring | Except 600 ACE

503191343

$62.49

17

Black, Spring

503192279

$67.99

18

Spring Stopper

503194270

$19.99

19

Urethane Bushing

503189117

$8.19

20

Bushing | Includes 240d to 240d1

503189282

$4.34

21

Bushing

503189271

$13.99

22

Spring Spacer

503191281

$8.89

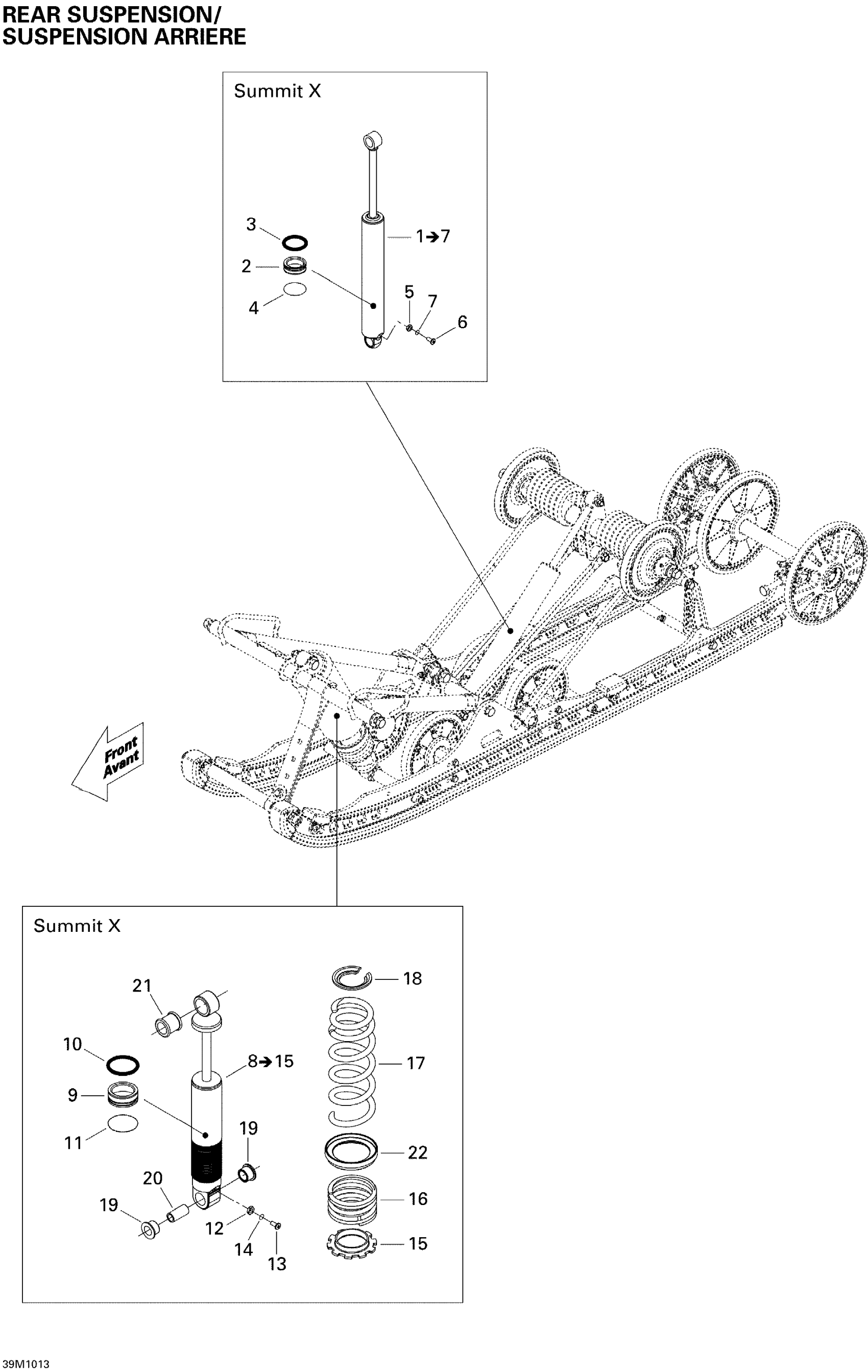

Ski-Doo Summit X 600HO ETEC, 2010 Rear Suspension Shocks Diagram

Rear Shock | X

FREE PISTON - Call your local BRP dealership

O-Ring

Piston Ring

Air Valve

Screw | Not Shown

O-Ring

CENTER SHOCK - Call your local BRP dealership | X

FREE PISTON - Call your local BRP dealership

O-Ring

Piston Ring

Air Valve

Screw | Not Shown

O-Ring

SPRING COLLAR - Call your local BRP dealership | MX-Z 552 Europe

Black, Spring | Except 600 ACE

Black, Spring

Spring Stopper

Urethane Bushing

Bushing | Includes 240d to 240d1

Bushing

Spring Spacer
