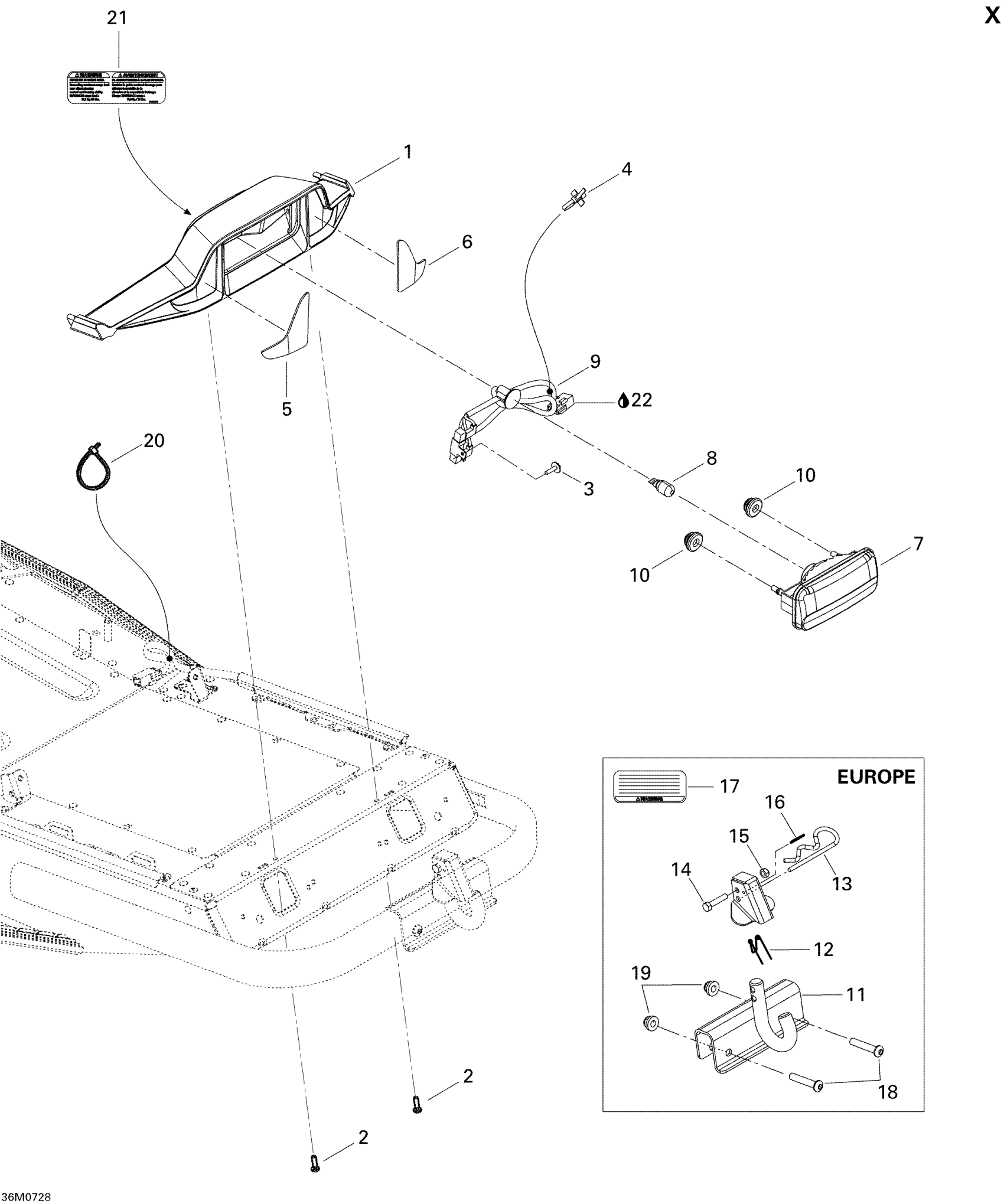

Ski-Doo Summit X, 2007 09- Luggage Rack Diagram

#

Description
Price

1

LIGHT SUPPORT - Call your local BRP dealership

511000510

Unavailable

2

Torx Screw K50 X 16

250000720

$1.69

3

Screw M4 X 16

250000725

$3.49

4

Tie-Rap 173 mm

293750009

$1.04

5

REAR REFLECTOR - Call your local BRP dealership

511000459

Unavailable

6

REAR REFLECTOR - Call your local BRP dealership

511000460

Unavailable

7

Rear Lens Box | MX Z X 600RS

710000652

Unavailable

8

BULB - Call your local BRP dealership | MX Z X 600RS

710000653

Unavailable

9

WIRING HARNESS - Call your local BRP dealership | MX Z X 600RS

511000508

Unavailable

10

Stopper Rubber

705014429

$5.95

11

Support | Europe

511000518

Unavailable

12

SPRING - Call your local BRP dealership | Europe

517152800

Unavailable

13

Hair Pin

114045200

$11.11

14

Hex. Flange Screw M6 X 35

207063544

$1.37

15

Elastic Stop Nut M6

232561414

$0.55

16

SPRING PIN M3 X 24 - Call your local BRP dealership | Europe

732804000

Unavailable

17

WARNING DECAL-SECURITY-ENGLISH - Call your local BRP dealership

516003037

Unavailable

18

Socket Head Screw M8 X 45 | Traxter XT.

205484546

$8.01

19

Hex. Flange Elastic Nut M8

233281414

$1.47

20

Tie Wrap 142 mm

293750002

$1.25

21

WARNING DECAL, MAXIMUM CARGO LOAD - Call your local BRP dealership

516002960

Unavailable

22

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99
