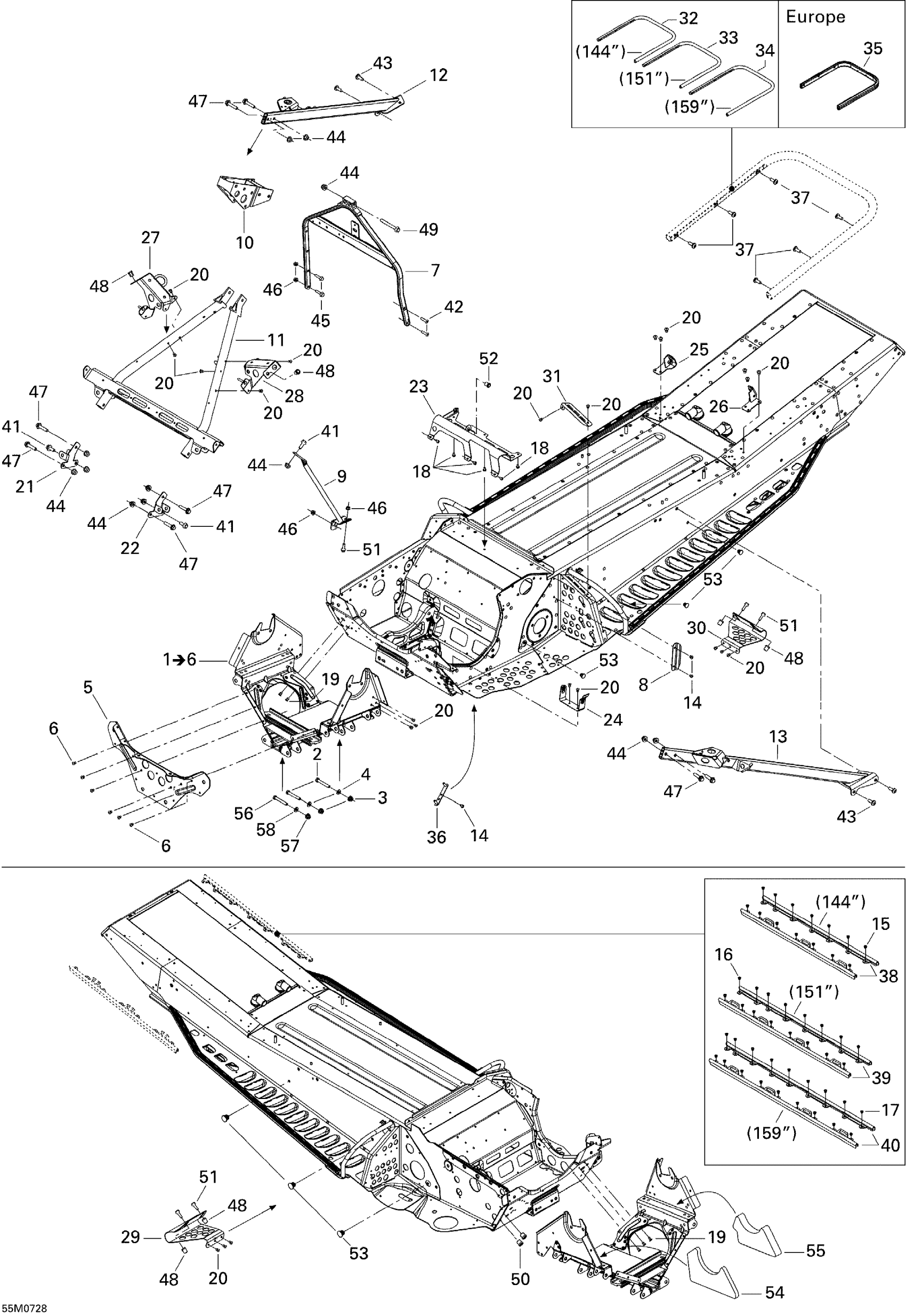

Ski-Doo Summit X, 2007 09- Frame and Components Diagram

#

Description
Price

1

Cross Member | Includes 1 to 6

518325423

$529.99

2

Hex. Screw M8 X 55

207085544

$1.68

3

Hex. Flange Elastic Nut M8

233281414

$1.47

4

Flat Washer 8 mm

234081410

$0.83

5

FRONT PLATE - Call your local BRP dealership

518325422

Unavailable

6

Avex Rivet

390909100

$0.30

7

HANDLE SUPPORT - Call your local BRP dealership

518323979

Unavailable

8

CABLE PROTECTOR - Call your local BRP dealership

518317504

Unavailable

9

BRACE, BLACK - Call your local BRP dealership

518323472

Unavailable

10

BRACKET BLOCK - Call your local BRP dealership

518323854

Unavailable

11

UPPER CROSS MEMBER - Call your local BRP dealership

518324739

Unavailable

12

RH MEMBER - Call your local BRP dealership

518324182

Unavailable

13

LH Member

518324183

Unavailable

14

Pop Rivet 3/16"

390402200

$0.35

15

Pop Rivet 3/16"

390402400

$0.35

16

Pop Rivet 3/16"

390402400

$0.35

17

Pop Rivet 3/16"

390402400

$0.35

18

Pop Rivet 3/16"

390402400

$0.35

19

Avex Rivet

390909100

$0.30

20

Avex Rivet

390909200

$0.30

21

RH SHOCK BRACKET - Call your local BRP dealership

518322461

Unavailable

22

LH SHOCK BRACKET - Call your local BRP dealership

518322462

Unavailable

23

INTAKE AIR ADMISSION SUPPORT - Call your local BRP dealership

518323532

Unavailable

24

GUARD BELT BRACKET, BLACK - Call your local BRP dealership

518322726

Unavailable

25

RH BRACKET, BLACK - Call your local BRP dealership

518323769

Unavailable

26

LH BRACKET, BLACK - Call your local BRP dealership

518323770

Unavailable

27

RH Console Support

518323535

Unavailable

28

LH Console Support

518323536

Unavailable

29

RH TOE HOLD - Call your local BRP dealership

518324391

Unavailable

30

LH TOE HOLD - Call your local BRP dealership

518324392

Unavailable

31

PLATE, BLACK - Call your local BRP dealership

518323105

Unavailable

32

REAR BUMPER - Call your local BRP dealership | North America

518324832

Unavailable

33

REAR BUMPER - Call your local BRP dealership | North America

518324832

Unavailable

34

REAR BUMPER - Call your local BRP dealership | 151" Track

518324833

Unavailable

35

REAR BUMPER - Call your local BRP dealership | Europe

518325228

Unavailable

36

TRUNK BRACKET, BLACK - Call your local BRP dealership

518323896

Unavailable

37

Hex. Screw M8 X 20

236282084

$1.48

38

RH WIRE PROTECTOR - Call your local BRP dealership

518324970

Unavailable

38

LH Wire Protector

518324973

Unavailable

39

RH Wire Protector | Track 151"

518324971

Unavailable

39

LH WIRE PROTECTOR - Call your local BRP dealership | Track 151"

518324974

Unavailable

40

RH WIRE PROTECTOR - Call your local BRP dealership | 151" Track

518324940

Unavailable

40

LH WIRE PROTECTOR - Call your local BRP dealership | 151" Track

518324942

Unavailable

41

Hex. Flange Screw M8 X 20

207682044

$1.15

42

Socket Head Screw M6 X 20, Scotch Grip

205862044

$4.12

43

Pan Head Torx Screw M8 X 12

250000887

$1.90

44

Hex. Flange Elastic Nut M8

233281414

$1.47

45

Hex. Flange Screw M6 X 25

207662544

$0.64

46

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

47

Hex. Flange Screw M8 X 35

207683544

$1.69

48

Insert

293450275

$12.99

49

Hex. Flange Screw M8 X 70

207687044

$7.41

50

Insert

293450166

$4.29

51

Hex. Flange Screw M6 X 20

207662044

$2.00

52

Threaded Insert M6 X 1.0

250100242

Unavailable

53

Panel Fastener

518321954

$7.69

54

RH FRONT FOAM - Call your local BRP dealership

518323453

Unavailable

55

LH FRONT FOAM - Call your local BRP dealership

518323007

Unavailable

56

Hex. Screw M8 X 55

207085544

$1.68

57

Hex. Flange Elastic Nut M8

233281414

$1.47

58

Flat Washer 8 mm

234081410

$0.83
