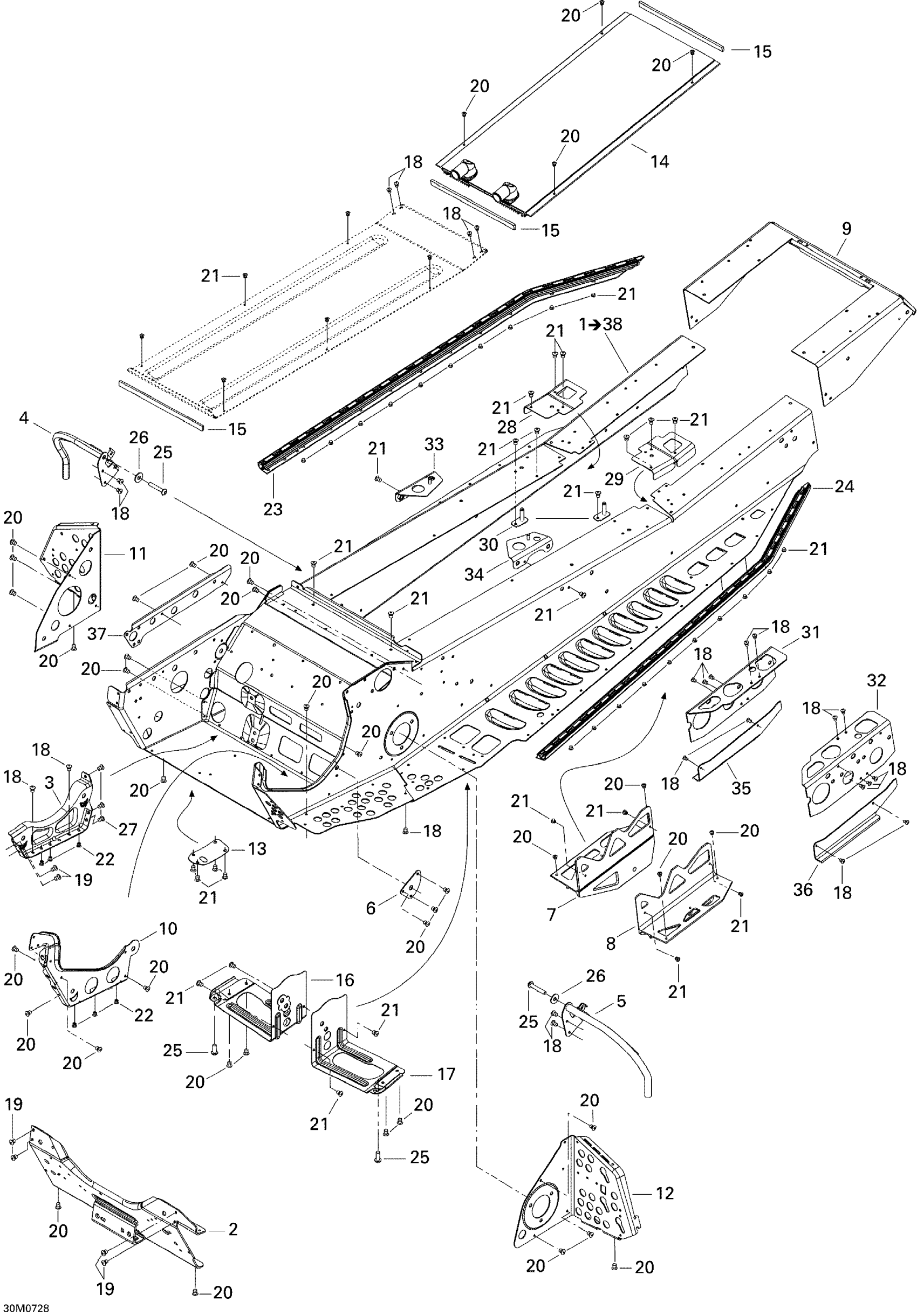

Ski-Doo Summit X, 2007 09- Frame Diagram

#

Description
Price

1

Frame Ass'y | Track 144", Includes 1 to 37

415129235

Unavailable

1

Frame Ass'y | Track 151", Includes 1 to 37

415129237

Unavailable

1

Frame Ass'y | Track 159", Includes 1 to 37

415129236

Unavailable

2

FRONT PAN - Call your local BRP dealership

518323239

Unavailable

3

ENGINE SUPPORT, BLACK - Call your local BRP dealership

518323346

Unavailable

4

RH TOE HOLD SUPPORT - Call your local BRP dealership

518324162

Unavailable

5

LH TOE HOLD SUPPORT - Call your local BRP dealership

518324163

Unavailable

6

OUTER REINFORCEMENT - Call your local BRP dealership

518323507

Unavailable

7

RH SUSPENSION BRACKET - Call your local BRP dealership

518325280

Unavailable

8

LH Suspension Bracket

518325281

Unavailable

9

REAR CAP - Call your local BRP dealership

518324965

Unavailable

9

REAR CAP - Call your local BRP dealership | Track 151"

518324966

Unavailable

9

REAR CAP - Call your local BRP dealership | Track 159"

518324967

Unavailable

10

INNER REINFORCEMENT, BLACK - Call your local BRP dealership

518323241

Unavailable

11

RH Footrest Reinforcement

518323805

Unavailable

12

LH FOOTREST REINFORCEMENT - Call your local BRP dealership

518324527

Unavailable

13

PLATE - Call your local BRP dealership

518324169

Unavailable

14

Rear Radiator

518323720

Unavailable

14

Rear Radiator | Track 151"

518323730

Unavailable

14

Rear Radiator | Track 159"

518323806

Unavailable

15

GASKET - Call your local BRP dealership

293200104

Unavailable

16

RH Reinforcement, Black

518324634

Unavailable

17

LH REINFORCEMENT, BLACK - Call your local BRP dealership

518324635

Unavailable

18

Avex Rivet

390909200

$0.30

19

Avex Rivet

390909100

$0.30

20

Pop Rivet 3/16"

390402200

$0.35

21

Pop Rivet 3/16"

390402400

$0.35

22

HENROB RIVET - Call your local BRP dealership

390910300

Unavailable

23

RH ROLLER - Call your local BRP dealership

518324957

Unavailable

24

LH ROLLER - Call your local BRP dealership

518324958

Unavailable

25

SOCKET HEAD SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership | Package Hunter

205982086

Unavailable

26

Flat Washer 8 mm

234082410

$1.47

27

Hemlock Rivet, 6.5 mm

293150096

$3.27

28

RH FRAME REINFORCEMENT - Call your local BRP dealership

518324431

Unavailable

29

LH FRAME REINFORCEMENT - Call your local BRP dealership

518324432

Unavailable

30

Tank Bracket

518322791

Unavailable

31

RH REINFORCEMENT - Call your local BRP dealership

518324959

Unavailable

32

LH Reinforcement

518324960

Unavailable

33

RH FRAME REINFORCEMENT, BLACK - Call your local BRP dealership

518324385

Unavailable

34

LH FRAME REINFORCEMENT, BLACK - Call your local BRP dealership

518324386

Unavailable

35

RH Corner, 144"

518324185

Unavailable

35

RH Corner, 151" | Track 151"

518324187

Unavailable

35

RH Corner, 159" | Track 159"

518324189

Unavailable

36

LH Corner, 144"

518324186

Unavailable

36

LH Corner, 151" | Track 151"

518324188

Unavailable

36

LH CORNER, 159 - Call your local BRP dealership | Track 159"

518324190

Unavailable

37

RH TUNNEL STIFFENER - Call your local BRP dealership

518323328

Unavailable
