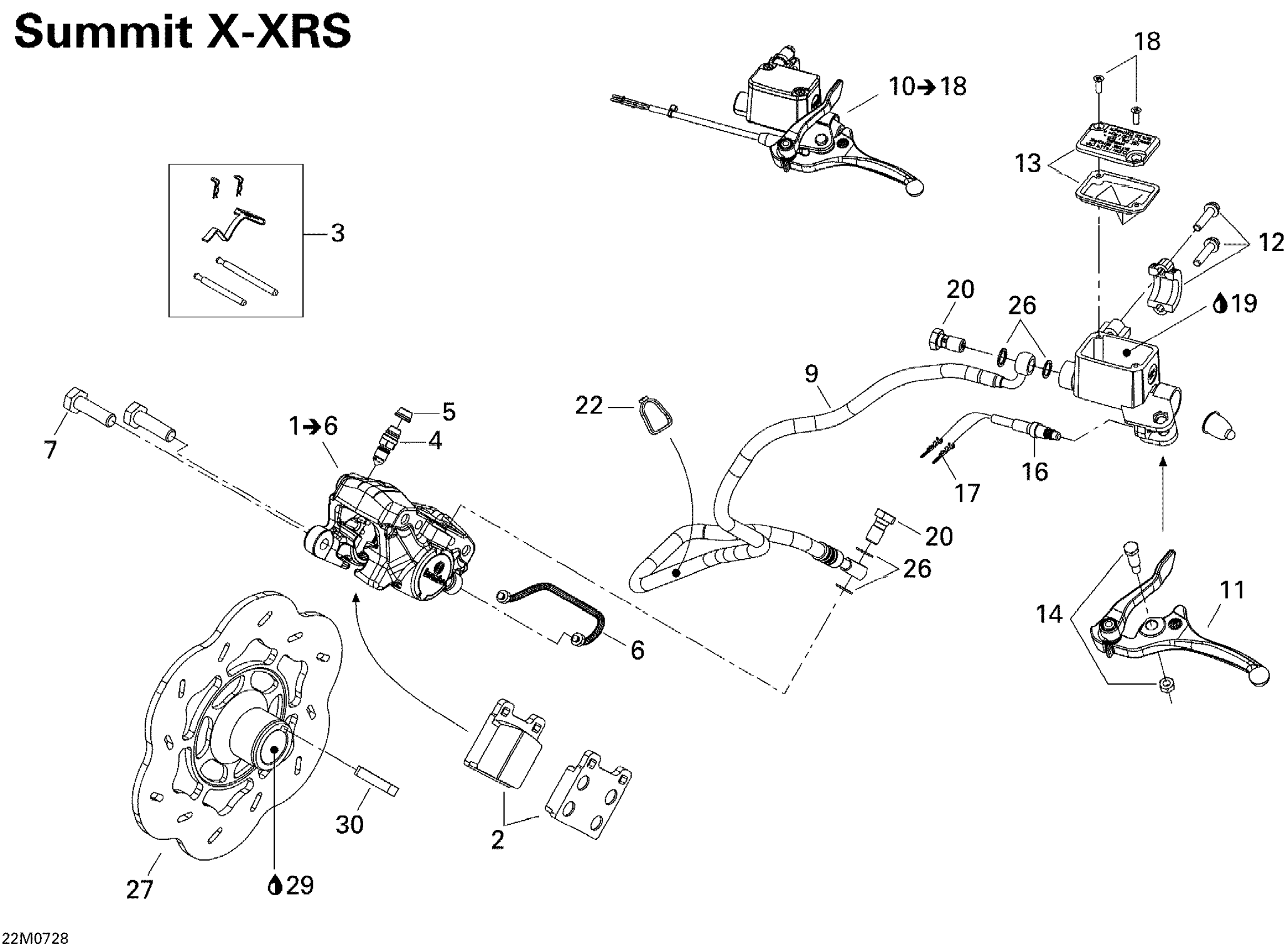

Ski-Doo Summit X, 2007 06- Hydraulic Brakes Diagram

#

Description
Price

1

Caliper | Includes 1 to 6

507032414

Unavailable

2

Brake Pad Kit

415084600

$79.49

3

KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership

415128865

Unavailable

4

BLEEDER SCREW - Call your local BRP dealership

414989800

Unavailable

5

BOOT-QTS 20 - Call your local BRP dealership

414989700

Unavailable

6

RIGID TUBING - Call your local BRP dealership

414989900

Unavailable

7

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.69

9

HOSE - Call your local BRP dealership

507032397

Unavailable

10

MASTER CYLINDER - Call your local BRP dealership

507032463

Unavailable

11

LEVER - Call your local BRP dealership

415129216

Unavailable

12

Clamp And Screw Kit

507032477

$23.99

13

Cap

415029900

$41.49

14

Pin Ass'y

415030000

$19.99

16

Microswitch

507032366

$98.99

17

Male Terminal

515175232

$1.58

18

SCREW M4 X 12 - Call your local BRP dealership

216141260

Unavailable

19

BRAKE FLUID, SRF, DOT 4 - Call your local BRP dealership

293600063

Unavailable

20

Banjo Bolt

414920500

$8.68

22

Tie Wrap 142 mm

293750002

$1.25

26

Washer

414920600

$1.90

27

BRAKE DISK - Call your local BRP dealership

507032395

Unavailable

29

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

30

KEY - Call your local BRP dealership

507021300

Unavailable
