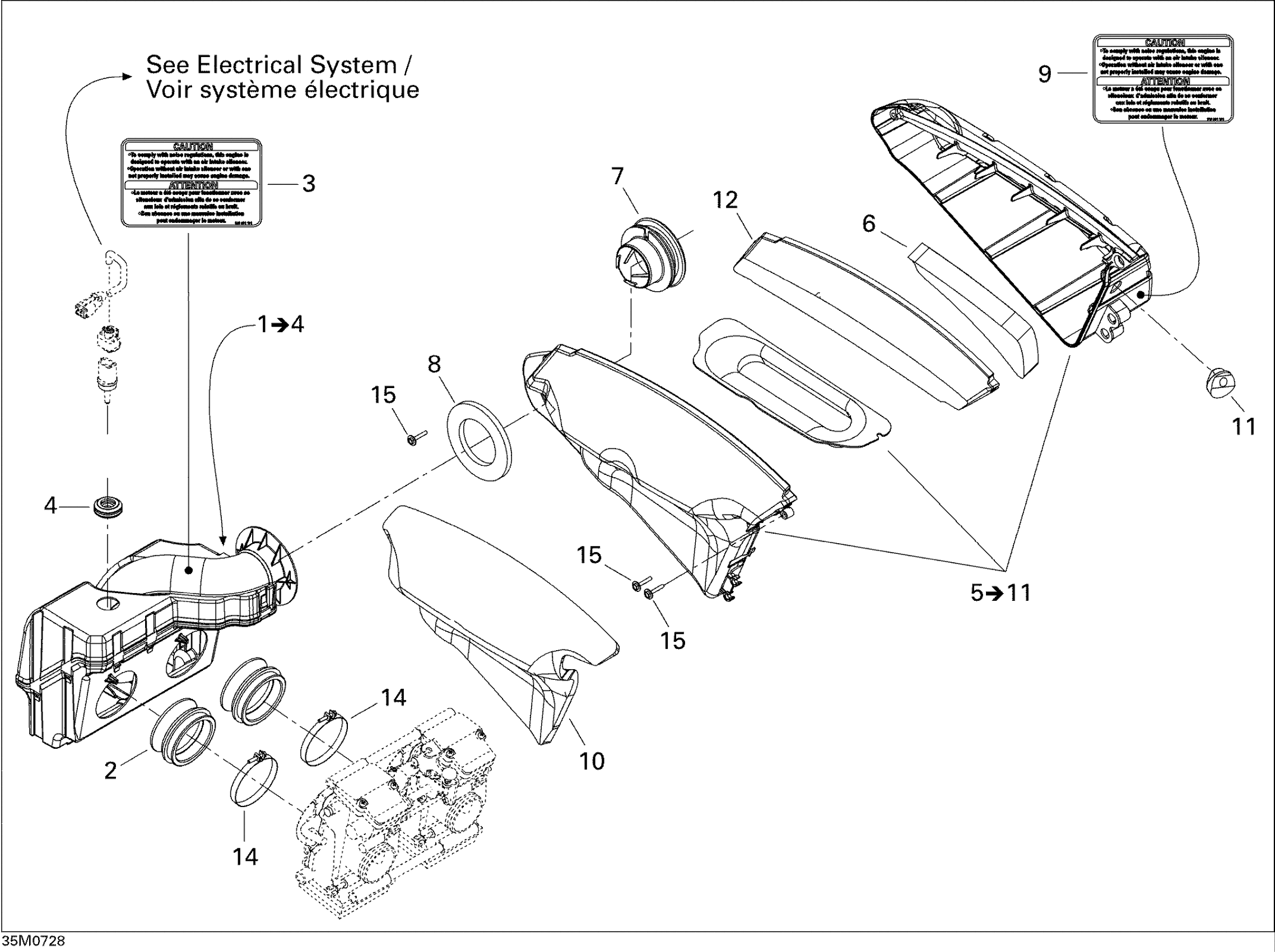

Ski-Doo Summit X, 2007 Air Intake System Diagram

#

Description
Price

1

PRIMARY CHAMBER ASSY - Call your local BRP dealership | Includes 1 to 4, 800R

508000511

Unavailable

2

Air Intake Adaptor

508000132

Unavailable

3

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

4

GROMMET - Call your local BRP dealership

570065500

Unavailable

5

SECONDARY CHAMBER ASSY - Call your local BRP dealership | Includes 5 to 11, 800R

508000512

Unavailable

6

Inner Foam

508000145

Unavailable

7

GUIDE - Call your local BRP dealership | 800R

508000516

Unavailable

8

OUTER FOAM - Call your local BRP dealership | 800R

508000517

Unavailable

9

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

10

OUTER FOAM - Call your local BRP dealership

508000310

Unavailable

11

GROMMET - Call your local BRP dealership

512059931

Unavailable

12

Air Filter

508000394

$51.99

14

Gemi Clamp

508000346

$10.33

15

Plastite Screw Type K-40, M4 X 25

250000101

$3.49
