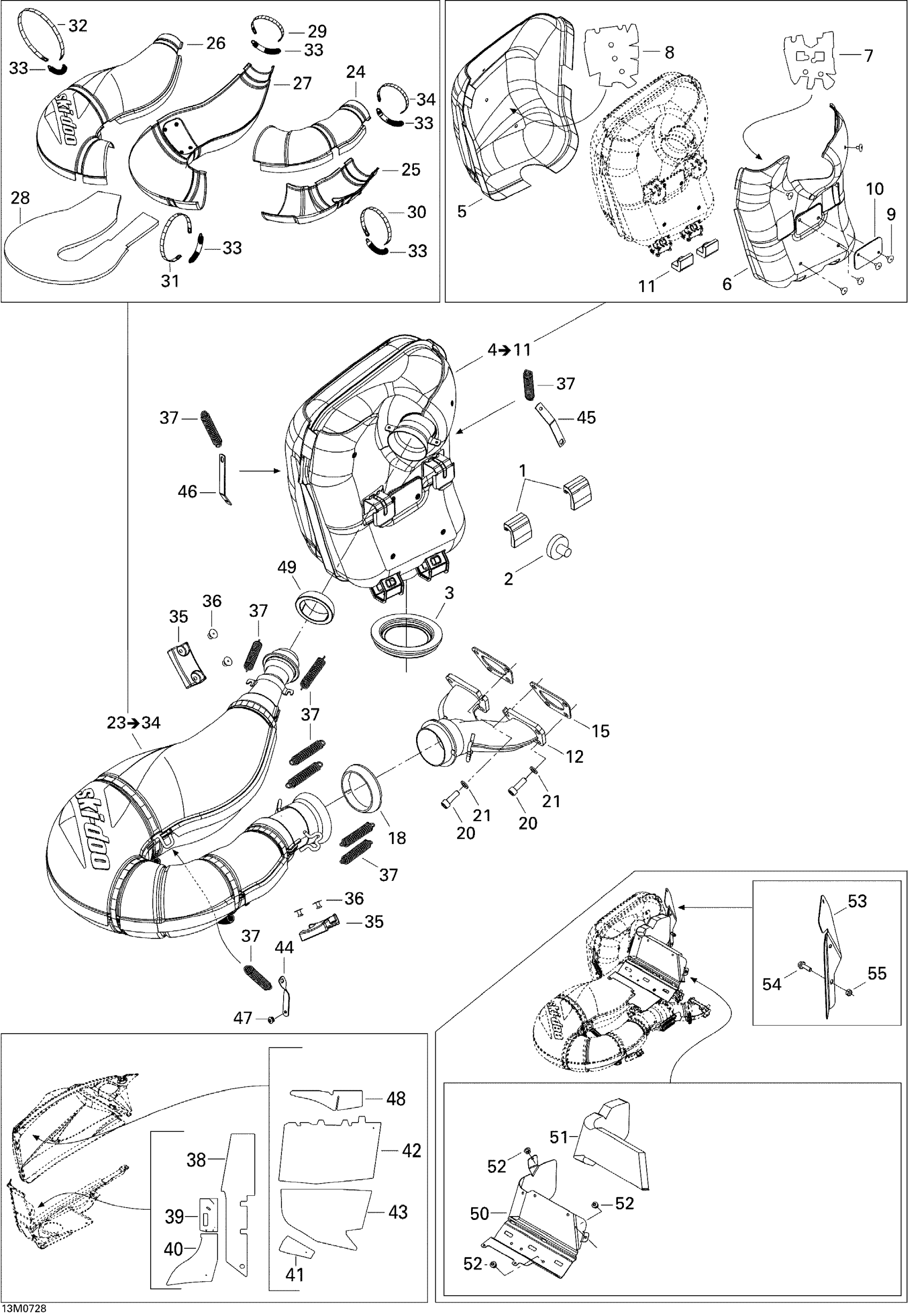

Ski-Doo Summit X, 2007 01- Exhaust System Diagram

#

Description
Price

1

UPPER STOPPER - Call your local BRP dealership

514053372

Unavailable

2

Rubber Bumper

514053654

$50.99

3

EXHAUST GROMMET - Call your local BRP dealership

514054240

Unavailable

4

Muffler Ass'y | Includes 4 to 11, 800R

514054051

Unavailable

5

RH HEAT SHIELD - Call your local BRP dealership

514054122

Unavailable

6

LH Heat Shield

514053585

Unavailable

7

LH INSULATING WOOL - Call your local BRP dealership

514053590

Unavailable

8

RH INSULATING WOOL - Call your local BRP dealership

514053589

Unavailable

9

Pop Rivet 3/16”

390910000

$0.57

10

Reinforcement

514053429

Unavailable

11

LOWER STOPPER - Call your local BRP dealership

514054223

Unavailable

12

Exhaust Manifold

420673370

Unavailable

15

Gasket

420430480

$13.75

18

Exhaust Gasket

514053487

$26.49

20

Socket Head Screw Scotch Grip M6 X 20

250001077

$2.79

21

Washer

514053953

$0.77

23

TUNED PIPE ASS'Y - Call your local BRP dealership | Includes 23 to 34, 800R

514054054

Unavailable

24

Upper Front Half Envelope

514053609

Unavailable

25

Lower Front Half Envelope

514053610

Unavailable

26

UPPER REAR HALF ENVELOPE - Call your local BRP dealership

514053612

Unavailable

27

LOWER REAR HALF ENVELOPE - Call your local BRP dealership

514053613

Unavailable

28

INSULATING WOOL - Call your local BRP dealership

514053584

Unavailable

29

RETAINING STRAP - Call your local BRP dealership

514053437

Unavailable

30

RETAINING STRAP - Call your local BRP dealership

514053500

Unavailable

31

RETAINING STRAP - Call your local BRP dealership

514053534

Unavailable

32

RETAINING STRAP - Call your local BRP dealership

514053535

Unavailable

33

Spring

514053643

$6.35

34

Retaining Strap

514053536

$15.22

35

BUMPER - Call your local BRP dealership

514053352

Unavailable

36

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

37

Spring

415107100

$6.35

38

REFLECTIVE SHEET - Call your local BRP dealership

514053560

Unavailable

39

Reflective Sheet

514053912

Unavailable

40

Reflective Sheet

514053913

Unavailable

41

Reflective Sheet

514053914

Unavailable

42

REFLECTIVE SHEET - Call your local BRP dealership

514054350

Unavailable

43

REFLECTIVE SHEET - Call your local BRP dealership

514053562

Unavailable

44

SPRING BRACKET - Call your local BRP dealership

514053955

Unavailable

45

SPRING BRACKET - Call your local BRP dealership

514053725

Unavailable

46

Spring Bracket

514053393

$14.16

47

Pop Rivet 3/16"

293150103

$0.55

48

REFLECTIVE SHEET - Call your local BRP dealership

514053673

Unavailable

49

Exhaust Gasket

514054174

$28.49

50

ACOUSTIC PLATE - Call your local BRP dealership

514053956

Unavailable

51

ACOUSTIC FOAM - Call your local BRP dealership

514053967

Unavailable

52

Pop Rivet 3/16"

390402200

$0.35

53

HEAT DEFLECTOR - Call your local BRP dealership

514053876

Unavailable

54

Hex. Flange Screw M6 X 20

207662044

$2.00

55

Elastic Stop Nut M6

232561414

$0.55
