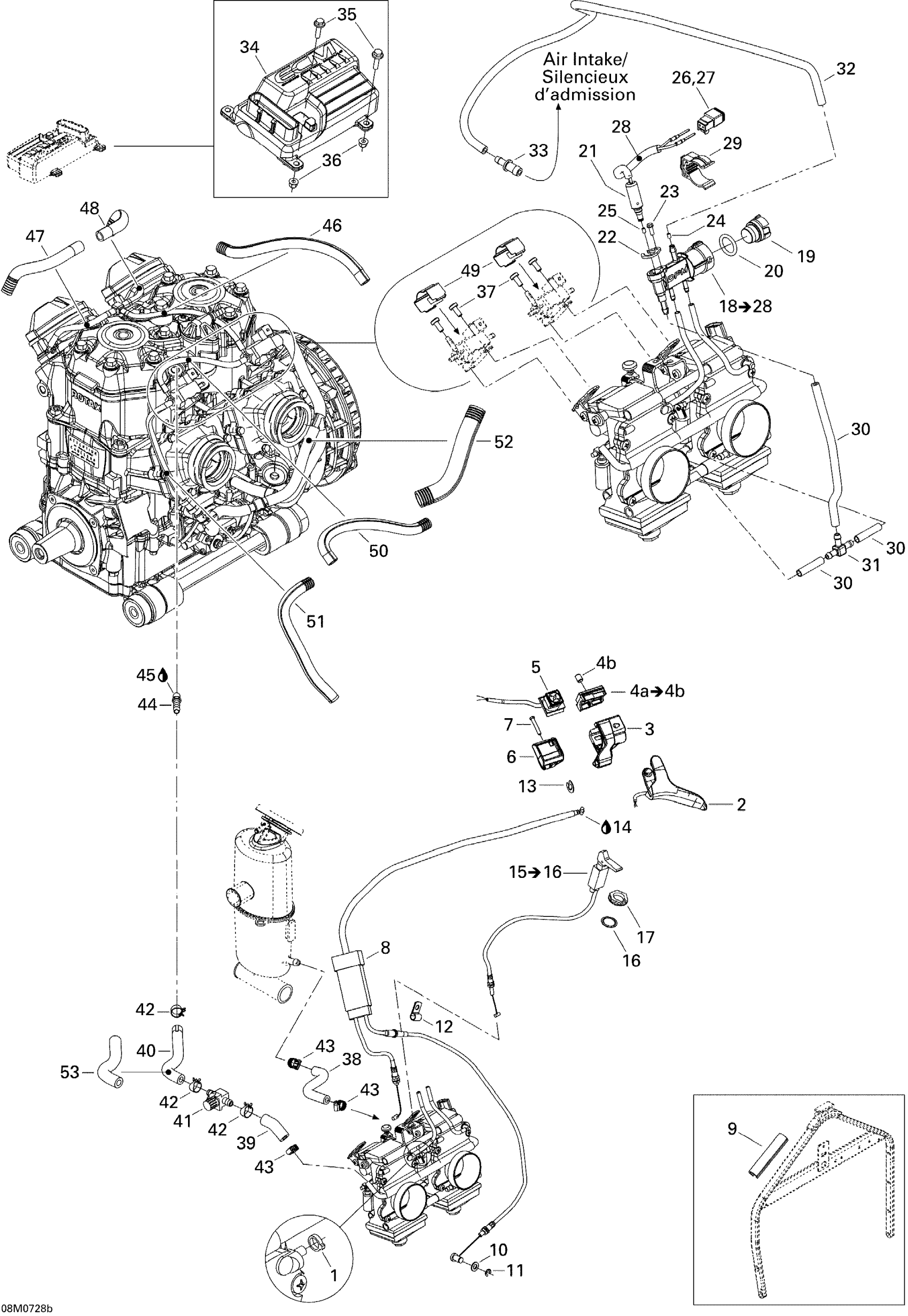

Ski-Doo Summit X, 2007 01- Engine 2 Diagram

#

Description
Price

1

Tie Wrap 94 mm | 4X4

293750001

$1.03

2

Throttle Handle Ass'y | Includes 45 to 46

512060219

Unavailable

3

LOWER HOUSING - Call your local BRP dealership

512060197

Unavailable

4a

Upper Housing Ass'y

512060198

Unavailable

4b

Socket Set Screw M8 X 10

414440800

$4.12

5

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

6

Kill Switch Support

515176825

$10.49

7

Torx Screw #8-18

250000263

$1.04

8

THROTTLE CABLE - Call your local BRP dealership

512060088

Unavailable

9

PROTECTOR - Call your local BRP dealership

512059750

Unavailable

10

Flat Washer 8 mm, Nylon

234081100

$1.39

11

Circlip

414753500

$0.71

12

TIE CLAMP - Call your local BRP dealership

293750042

Unavailable

13

Circlip

414274500

$0.90

14

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

15

CHOKE CABLE - Call your local BRP dealership | Includes 47 to 48

512059266

Unavailable

16

Lock Washer, Interior Teeth

394103300

Unavailable

17

PLASTIC NUT - Call your local BRP dealership

512059094

Unavailable

18

PRESSURE MANIFOLD ASS'Y - Call your local BRP dealership

512060002

Unavailable

19

CAP - Call your local BRP dealership

270600009

Unavailable

20

O-RING - Call your local BRP dealership

293300042

Unavailable

21

PRESSURE MANIFOLD HARNESS - Call your local BRP dealership

515175701

Unavailable

22

SOLENOID LOCK - Call your local BRP dealership

415061600

Unavailable

23

Screw K40 X 10

241140060

$1.48

24

Not Available As Spare Part - Friction Washer

Unavailable

25

STARTER JET - Call your local BRP dealership

404161825

Unavailable

26

Female Terminal Housing, 2 Circuits

515175670

$8.39

27

Female Lock, 2 Circuits

515175675

$4.55

28

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

29

SUPPORT - Call your local BRP dealership

512058919

Unavailable

30

Polyurethane Hose 10000Mm Long

219704410

$56.99

31

T-FITTING - Call your local BRP dealership | Engine 800R

414729300

Unavailable

32

Polyurethane Hose 10000Mm Long

219704410

$56.99

33

Straight Fitting

293710035

$8.89

34

CALIBRATED MODULE - Call your local BRP dealership

512060226

Unavailable

35

Hex.Flange Screw M5 X 20

207652044

$1.90

36

Hex. Flange Elastic Nut M5

233251414

$1.04

37

PHILLIPS SCREW M5 X 12 - Call your local BRP dealership

208651241

Unavailable

38

FORMED HOSE - Call your local BRP dealership

509000171

Unavailable

39

Was 509000407 Hose 8 mm

219704420

$50.99

40

FORMED HOSE - Call your local BRP dealership

512060185

Unavailable

41

Valve 5/16” | Grand Touring 500.

512059324

$44.99

42

Spring Clamp

414655700

$0.72

43

Tridon Gear Clamp

293650170

$1.99

44

Male Connector 1/8"-27 NPT

512060196

$10.33

45

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

46

Was 409901700 Tubing (9 mm)

219704399

$84.99

47

Was 409901700 Tubing (9 mm)

219704399

$84.99

48

Was 409901700 Tubing (9 mm)

219704399

$84.99

49

Heating Element Bracket

512059809

Unavailable

50

Was 409901700 Tubing (9 mm)

219704399

$84.99

51

Was 409901700 Tubing (9 mm)

219704399

$84.99

52

Was 409901800 Tubing (13 mm)

219704400

$14.49

53

Tubing 16 Mm 1000Mm Long

219704408

$7.49
