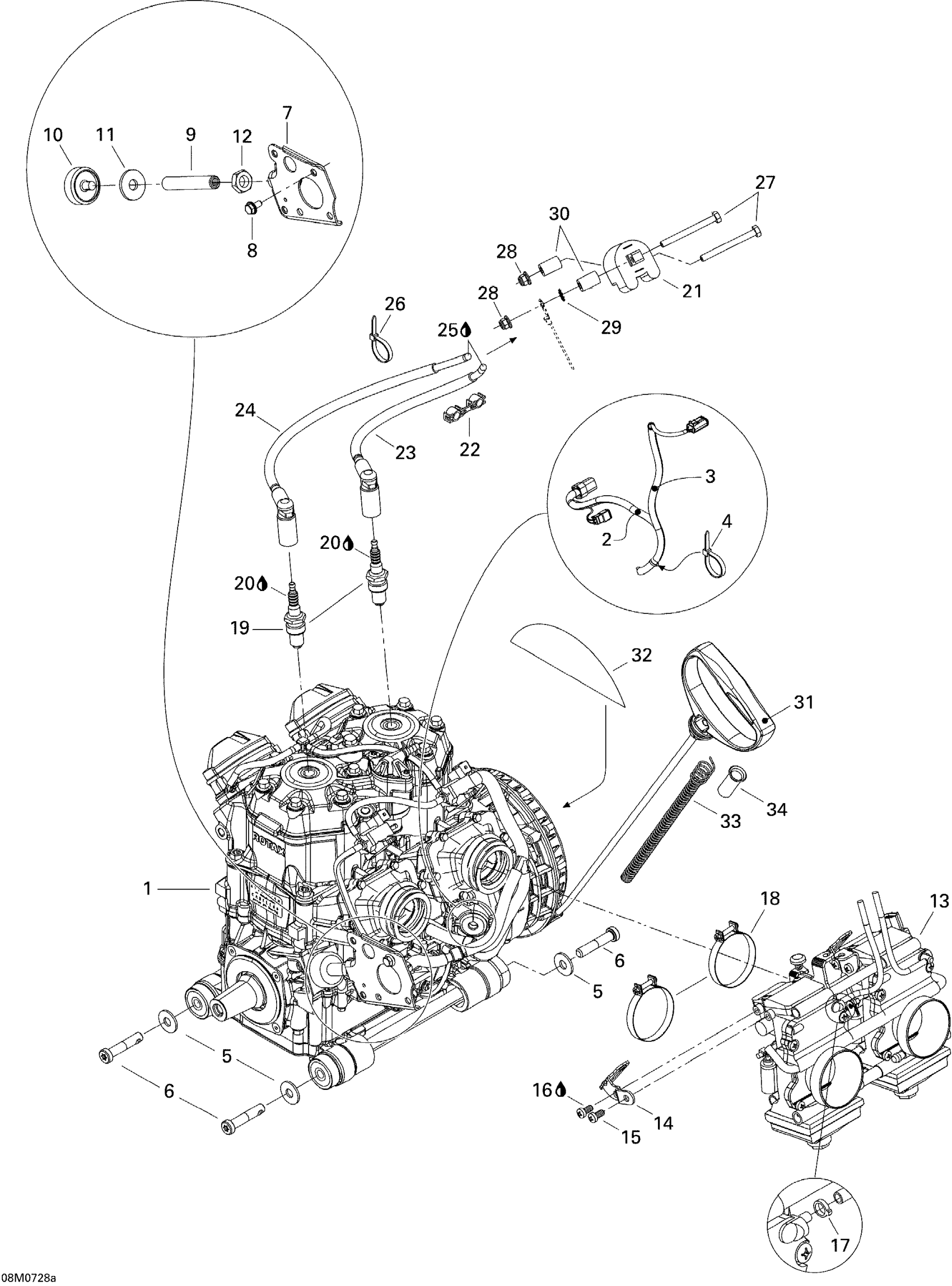

Ski-Doo Summit X, 2007 Engine 1 Diagram

#

Description
Price

1

Engine 800R PTEK (797 REV)

400702629

Unavailable

2

Was 409901800 Tubing (13 mm)

219704400

$10.79

3

Tubing 10 MM 1000MM Long

219704407

$2.52

4

Tie Wrap 142 mm

293750002

$1.01

5

Flat Washer M10 | 4X4

250200014

$1.34

6

TORX SCREW M10 X 50 - Call your local BRP dealership

250000252

Unavailable

7

PLATE - Call your local BRP dealership

512059840

Unavailable

8

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.79

9

STOPPER SCREW - Call your local BRP dealership

250500007

Unavailable

10

STOPPER - Call your local BRP dealership

512059610

Unavailable

11

WASHER - Call your local BRP dealership

512059057

Unavailable

12

Hex. Jam Nut M14

232170411

$1.43

13

CARBURETOR KIT TM40-B361 - Call your local BRP dealership

403138797

Unavailable

14

SOLENOID BRACKET - Call your local BRP dealership

512060290

Unavailable

15

PHILLIPS HEAD SCREW M5 X 8 - Call your local BRP dealership

208650841

Unavailable

16

Sealant LOCTITE 222MS - Call your local BRP dealership

413703400

Unavailable

17

Tie Wrap 94 mm | 4X4

293750001

$0.96

18

Gemi Clamp

512059835

$10.21

19

Spark Plug NGK BR9ECS

415128524

$11.13

20

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

21

Ignition Coil

512059968

$48.48

22

Plastic Clip, Spark Plug Wire

410914600

$5.30

23

CABLE ASSY, 300 MM - Call your local BRP dealership

512059695

Unavailable

24

Cable Ass’y, 375 mm

512059696

$82.06

25

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

26

Tie-Rap 180 mm

414115200

$0.10

27

Hex. Screw M6 X 60

207066044

$0.64

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

29

EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership

394001900

Unavailable

30

Spacer

517203200

$14.90

31

Starter Grip

572084400

$14.10

32

REFLECTIVE SHEET - Call your local BRP dealership

512059893

Unavailable

33

ROPE GUIDE - Call your local BRP dealership

512059535

Unavailable

34

TUBE - Call your local BRP dealership

512059536

Unavailable
