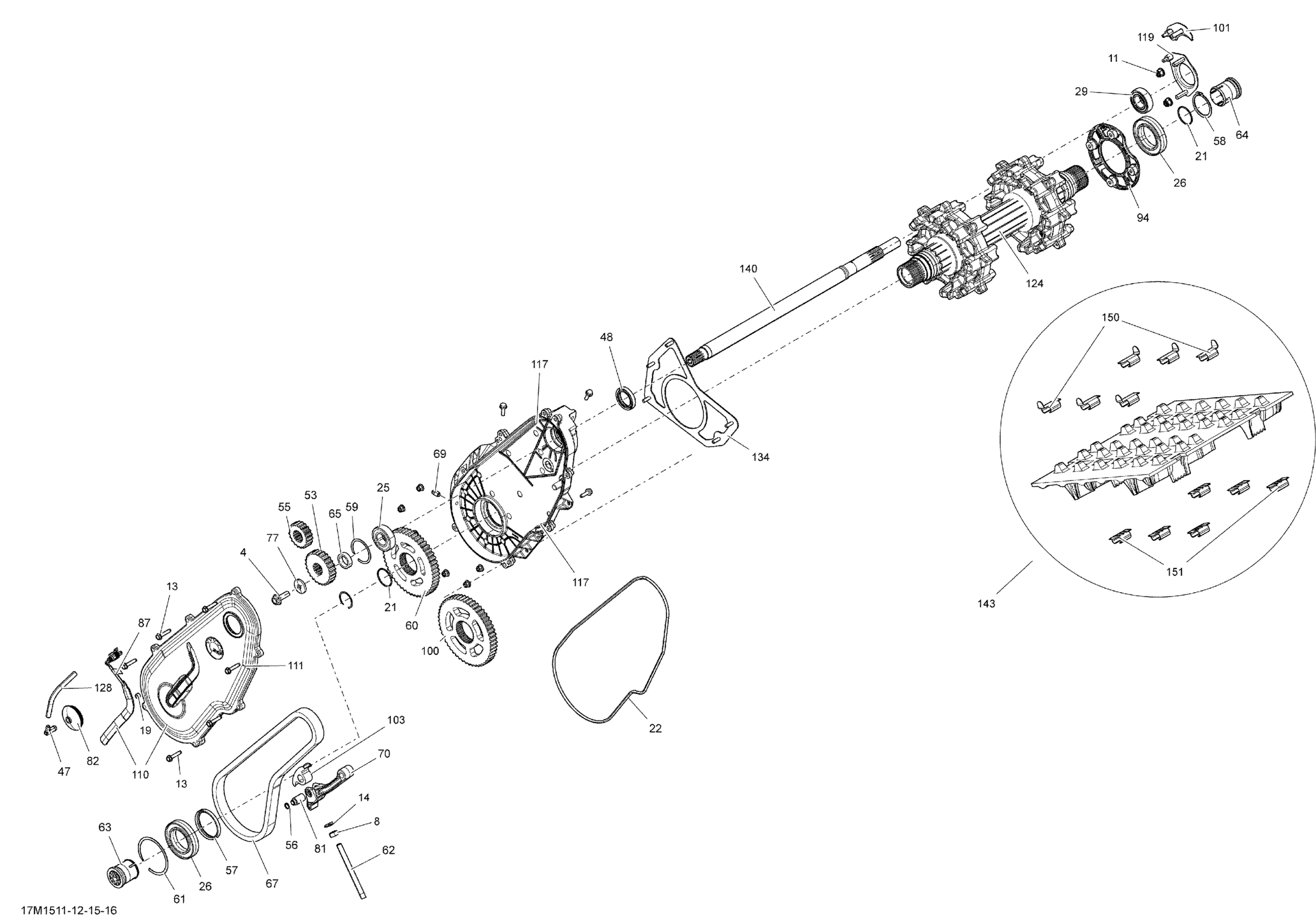

Ski-Doo Summit Sport 800RPTEK XP154, 2015 Drive System _17M1516 Diagram

#

Description
Price

4

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.46

8

Hex. Nut M10 X 1.5

232006414

$1.11

11

Hex. Flange Elastic Nut M8

233281414

$1.14

13

Hex. Flange Screw M6 X 1.0 X 30

250000360

$1.74

14

Bonded Washer

250200100

$1.74

19

Not Available As Spare Parts

XXX

Unavailable

21

O-Ring

293300122

$2.06

22

Tight Seal

293300130

$7.31

25

Ball Bearing

293350115

$11.15

26

Ball Bearing

293350059

$30.74

29

Not Available As Spare Parts

XXX

Unavailable

47

Male Connector

414580700

$3.38

48

Oil Seal

293200158

$12.52

53

Not Available As Spare Parts

XXX

Unavailable

55

Sprocket, 19 Teeth

504153783

$109.20

56

Circlip

504152282

$3.11

57

Oil Seal

293200159

$13.12

58

Circlip

504152572

$6.26

59

Circlip

504152576

$8.71

60

Kit Sprocket This part replaces 504152581.

861805539

$149.97

61

Circlip

504152582

$8.71

62

Adjustment Screw

504152602

$9.62

63

Magnetic Cap

504152619

$23.05

64

Magnetic Cap

504152619

$23.05

65

Shim

504152628

$8.40

67

Drive Chain, 104 Links

504152629

$173.82

69

Magnetic Plug 1/8 - 27 NPTF

504152636

$8.95

70

Tensioner chain

504153429

$13.77

77

Spring Washer M10

504152784

$6.26

81

Tensioner Axle

504152841

$14.65

82

Cap

504152860

$19.20

87

Rotation Sensor

504152896

$35.35

94

Retaining Ring

504153886

$18.43

100

Not Available As Spare Parts

XXX

Unavailable

101

Bearing Housing Ass'y | Includes 2500 to 2500a

504153418

$16.89

103

Slider Chain

504152739

$67.66

110

Chaincase Cover Ass'y | Includes 1700 to 1700c

504153147

$324.58

111

Casting Cover

504153151

$180.74

117

Chaincase

504153181

$324.58

119

Not Available As Spare Parts

XXX

Unavailable

124

Drive Axle Ass'y

504154054

$516.89

128

Polyurethane Hose 10000Mm Long

219704410

$46.12

134

Plate | Not Shown

518325816

$73.82

140

Not Available As Spare Parts

XXX

Unavailable

143

Track Ass'y 16" X 154" X 2.2"PSH | Model N°: CBGA

504153223

$1,239.99

150

Track Guide | Track Width 16''

415129528

$3.12

151

Cleat

504152651

$8.22
