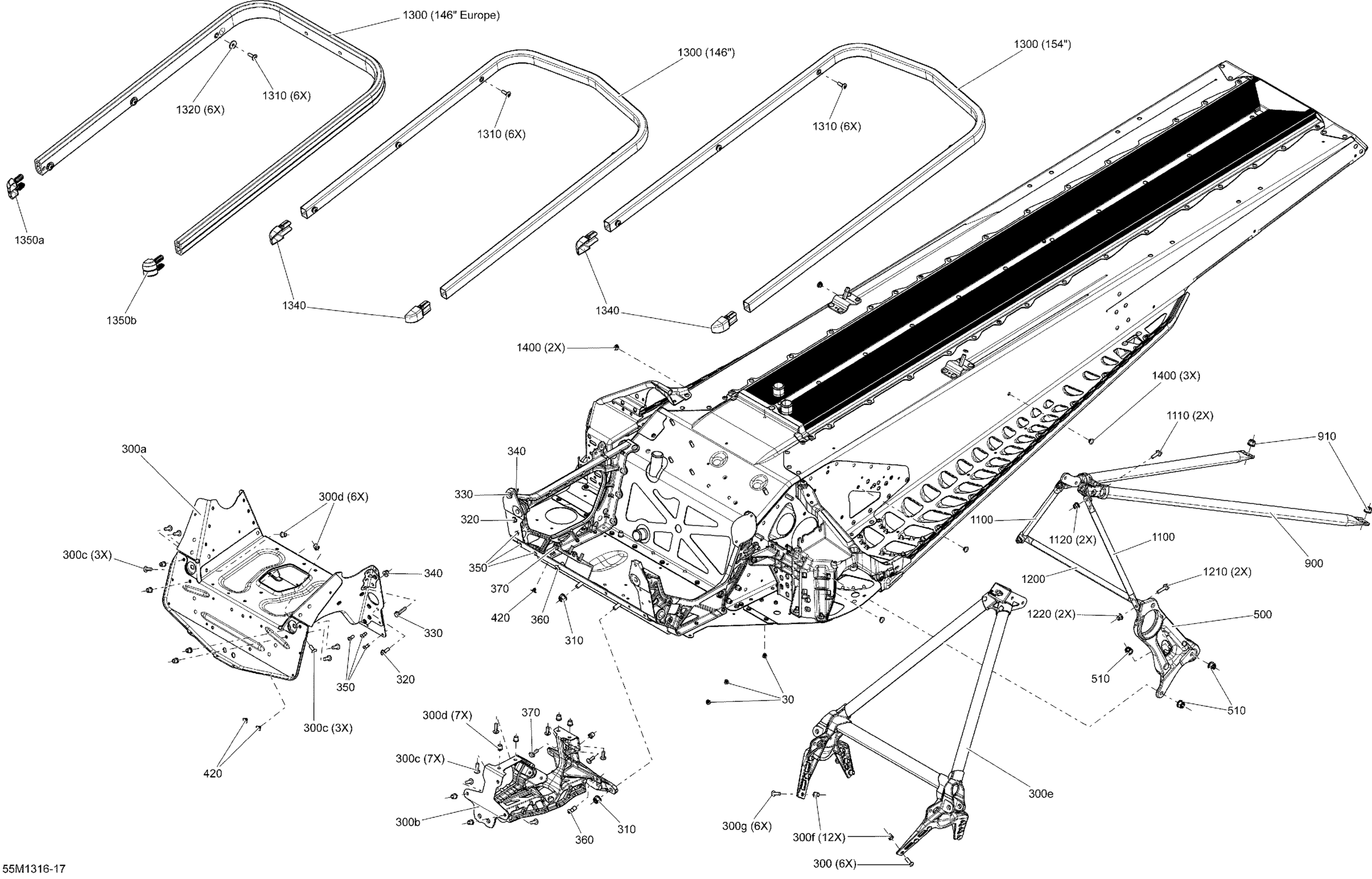

Ski-Doo SUMMIT SPORT 800R PTEK XP, 2013 Frame And Components 154 Diagram

#

Description
Price

30

Pop Rivet 3/16"

390402400

$0.35

300a

Cross Member S Module | Includes 300a to 300b

518328320

$499.99

300b

Front Suspension Support

518327487

$289.99

300c

Hex. Flange Screw M6 X 20

207662044

$2.00

300d

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

300e

Front Member

518326970

$299.99

300f

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

300g

Hex. Flange Screw M6 X 20

207662044

$2.00

310

Hex. Flange Elastic Nut M8

233281414

$1.47

320

Hex. Flange Screw M6 X 16

210261650

$1.67

330

Hex. Flange Screw M6 X 25

207662544

$0.64

340

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

350

Monobolt Rivet, 4.8 mm

293150191

$0.99

360

Monobolt Rivet 6.4

293150182

$3.09

370

Hex. Flange Screw M6 X 16

207661644

$0.74

420

Black Dart 5 mm

293730053

$4.55

500

Driven Pulley Support This part replaces 518327133.

518327460

$109.99

510

Hex. Flange Elastic Nut M8

233281414

$1.47

900

Rear Member

518326559

$264.99

910

Hex. Flange Elastic Nut M8

233281414

$1.47

1100

Upper Lateral Column Support

518325114

$22.49

1110

Hex. Flange Screw M6 X 20

207662044

$2.00

1120

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1200

Center Column Support

518325115

$22.49

1210

Hex. Flange Screw M6 X 25

207662544

$0.64

1220

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

1300

Clear Rear Bumper, 154" | 800R PTEK 154"

518324982

$111.49

1310

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

1320

Not Available As Spare Parts

XXX

Unavailable

1340

Full Moon Cap

520000567

$10.99

1350a

Not Available As Spare Parts

XXX

Unavailable

1350b

Not Available As Spare Parts

XXX

Unavailable

1400

Full Moon Dart 8 mm

293730041

$2.21
