Description

Price

1

FRAME ASS'Y - Call your local BRP dealership | 800R PTEK 154"

415130017

Unavailable

10a

E Module | Includes 10n to 10at

518327567

$469.99

10b

RH Member

518326795

$284.99

10c

LH Member

518326796

$229.99

10d

Front Member

518326198

$64.99

10e

Stavex Rivet

293150144

$0.82

10f

Hemlock Rivet 6.5 mm

293150120

$7.41

10g

Hemlock Rivet, 6.5 mm

293150119

$4.29

10h

Leg Cushion

505073317

$8.66

10i

Not Available As Spare Part - Friction Washer

Unavailable

20

MAG Engine Support | Includes 10a to 10a1

518325943

$26.49

150a

Hex. Flange Screw M6 X 20

207662044

$2.00

150b

Hex. Flange Screw M6 X 16

207661644

$0.74

160

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

170

Hex. Flange Screw M6 X 20

207662044

$2.00

300

RH Reinforcement

518324874

$27.99

310

LH Reinforcement

518324875

$27.99

320

RH Deflector, Black Polypropylene

518325782

$13.99

330

LH Deflector, Black Polypropylene

518325783

$13.99

340

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

350

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

600

RH Suspension Bracket

518324976

$43.99

610

LH Suspension Bracket

518324977

$43.99

700

RH Rear Base

518325973

$21.99

710

LH Rear Base | Includes 10v to 10x

518325974

$21.99

800

RH ROLLER - Call your local BRP dealership

518325159

Unavailable

810

LH Roller | Includes 10bd to 10be

518325160

$78.99

920

Seal

518326656

$9.19

1000

Front Radiator | Includes 10b to 10b2

518326485

$444.99

1100a

Rear Radiator Ass'y, 154" | Includes 10bm to 10bn

518326692

$720.49

1100b

Stavex Rivet

293150144

$0.82

1200

Rear Cap

518327105

$22.49

1300

RH Stirup | Includes 10aa to 10ab

518328938

$169.49

1310

LH Stirup

518326820

$37.99

1330

Panel Nut M5 X 0.8

250000958

$4.23

1340

Full Moon Dart 5 mm

293730042

$2.21

3000

U-Attach

518326961

$10.99

3010

Ornit Rivet 6,5 X 14.5

293150266

$2.40

3020

Tork Screw M6 X 16

250000534

$2.11

3030

Hex. Flange Nut M6

233061414

$1.68

3100

Support

518326960

$12.99

3110

Tork Screw M6 X 18

250000536

$2.11

3120

Flat Washer

250200039

$0.74

3200

Attach | Includes 10n to 10p

518326986

$12.99

3210

Elastic Stop Nut M6

232561414

$0.55

3240

Torx Screw M8 X 55

250000535

$3.17

A

Avex Rivet

390909200

$0.30

B

Avex Rivet

390909100

$0.30

C

Stavex Rivet

293150144

$0.82

D

Henrob Rivet

293150146

$2.09

E

Hemlock Rivet, 6.5 mm

293150119

$4.29

F

Ornit Rivet 6,5 X 14.5

293150266

$2.40

G

Hemlock Rivet, 6.4 mm

293150174

$7.86

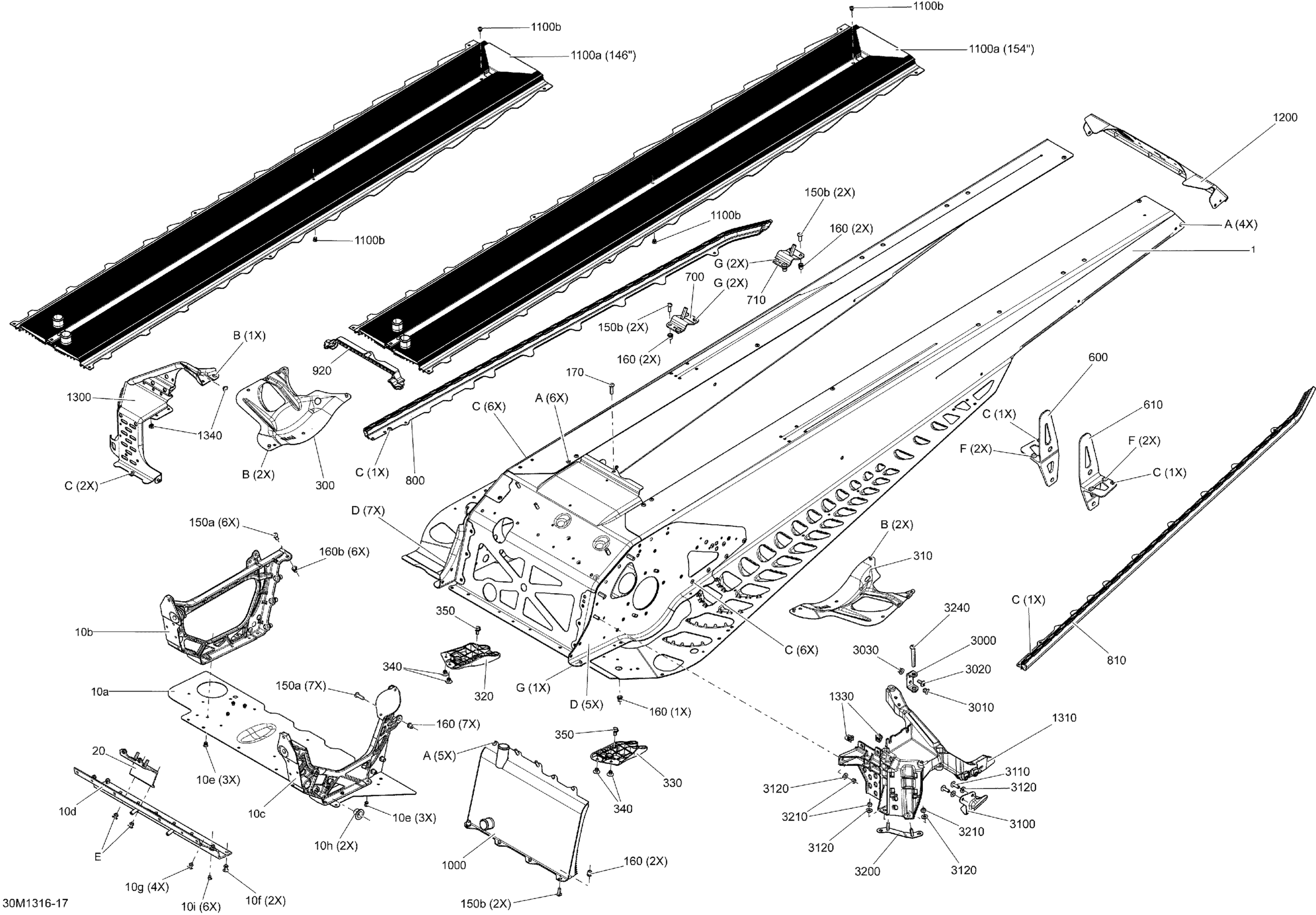

Ski-Doo SUMMIT SPORT 800R PTEK XP, 2013 Frame 154 Diagram

FRAME ASS'Y - Call your local BRP dealership | 800R PTEK 154"

E Module | Includes 10n to 10at

RH Member

LH Member

Front Member

Stavex Rivet

Hemlock Rivet 6.5 mm

Hemlock Rivet, 6.5 mm

Leg Cushion

Not Available As Spare Part - Friction Washer

MAG Engine Support | Includes 10a to 10a1

Hex. Flange Screw M6 X 20

Hex. Flange Screw M6 X 16

Hex. Flange Elastic Nut M6 x 1.0

Hex. Flange Screw M6 X 20

RH Reinforcement

LH Reinforcement

RH Deflector, Black Polypropylene

LH Deflector, Black Polypropylene

Pop Rivet 3/16" | DS 650 X

Hex. Flange Screw M6 X 12, Scotch Grip

RH Suspension Bracket

LH Suspension Bracket

RH Rear Base

LH Rear Base | Includes 10v to 10x

RH ROLLER - Call your local BRP dealership

LH Roller | Includes 10bd to 10be

Seal

Front Radiator | Includes 10b to 10b2

Rear Radiator Ass'y, 154" | Includes 10bm to 10bn

Stavex Rivet

Rear Cap

RH Stirup | Includes 10aa to 10ab

LH Stirup

Panel Nut M5 X 0.8

Full Moon Dart 5 mm

U-Attach

Ornit Rivet 6,5 X 14.5

Tork Screw M6 X 16

Hex. Flange Nut M6

Support

Tork Screw M6 X 18

Flat Washer

Attach | Includes 10n to 10p

Elastic Stop Nut M6

Torx Screw M8 X 55

Avex Rivet

Avex Rivet

Stavex Rivet

Henrob Rivet

Hemlock Rivet, 6.5 mm

Ornit Rivet 6,5 X 14.5

Hemlock Rivet, 6.4 mm
