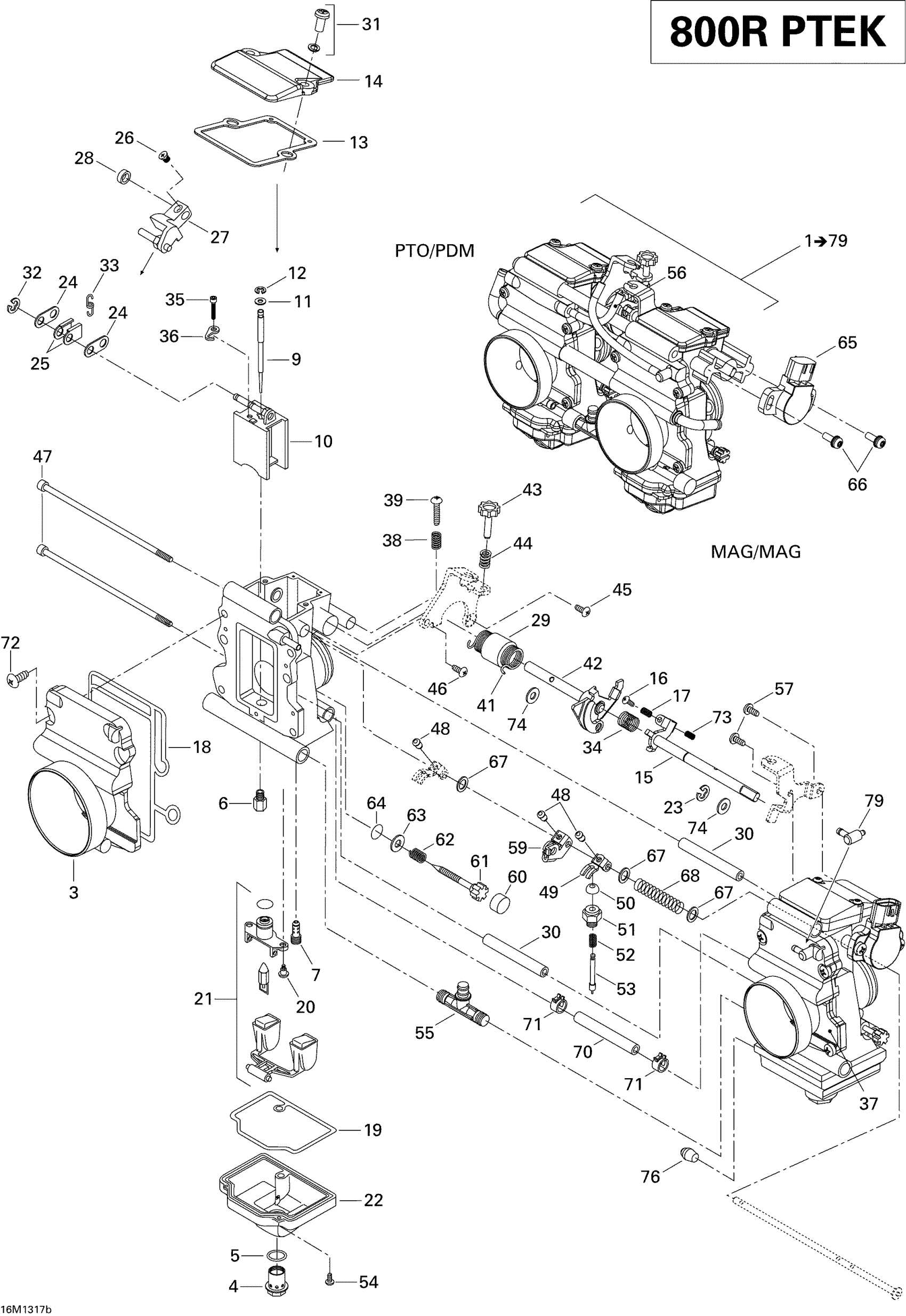

Ski-Doo SUMMIT SPORT 800R PTEK XP, 2013 02- Carburetor 800RPTEK Diagram

#

Description
Price

1

CARBURATOR KIT, TM40-B397 - Call your local BRP dealership | Engine 800R

403138805

Unavailable

3

Funnel, PTO

404162093

$234.49

4

Drain Screw

404162094

$29.99

5

O-Ring

404161945

$9.06

6

Main Jet MJ 480

404106800

$5.21

7

Pilot Jet 17.5

404161944

$5.21

9

NEEDLE J8-9EGI04-58 - Call your local BRP dealership

404162081

Unavailable

10

Valve Piston 2.0

404162020

$191.49

11

Packing

404137600

$6.38

12

E-Ring

404152200

$4.14

13

Gasket

404161940

$24.49

14

COVER - Call your local BRP dealership

404161939

$38.99

15

Throttle Shaft

404162077

Unavailable

16

Screw

404136700

$14.22

17

Adjustment Spring

404135300

$11.60

18

O-Ring

404161935

$24.49

19

O-Ring

404161961

$17.99

20

Screw

404161933

$11.18

21

Float

404161932

$122.49

22

Body Float Ass'y

404162095

$73.49

23

E-Ring

707200027

$5.21

24

Plate

404162007

$17.08

25

Holder

404162008

$17.08

26

Screw

404161928

$12.70

27

Lever

404162009

$98.99

28

Ring

404161926

$12.70

29

Ring

404161925

$12.70

30

RING - Call your local BRP dealership

404161924

Unavailable

31

Screw

404161923

$7.23

32

E-Ring

404138300

$11.18

33

Spring

404162010

$17.08

34

Spring

404162011

$12.70

35

Screw

404161920

$12.70

36

Plate

404161919

$12.70

37

Funnel, MAG

404162096

$253.99

38

Spring

404161918

$6.45

39

Screw

404161917

$12.70

41

Spring

404162014

$31.99

42

Throttle Shaft

404162015

$207.49

43

Adjustment Screw

404137500

$19.49

44

Spring

404161913

$12.70

45

Screw

404161912

$6.38

46

Screw

404136100

$6.38

47

Screw

404161911

$34.99

48

Screw

404161910

$12.70

49

Lever

404161909

$17.99

50

Cap

404140000

$11.18

51

Guide Holder

404136900

$16.49

52

Spring

404161908

$12.77

53

Plunger Ass'y

404161907

$31.99

54

Screw

404161906

$6.38

55

Nipple

404161905

$47.99

56

HOSE - Call your local BRP dealership

404161821

$11.99

57

Screw

404161903

$3.08

59

Starter Lever

404161901

$35.99

60

Cap

404161899

$12.18

61

Adjuster

404161898

$23.99

62

Spring

404161897

$5.95

63

Washer

404161896

$6.06

64

Packing

404161895

$9.06

65

Sensor Ass'y

404162079

$359.99

66

SCREW - Call your local BRP dealership

404162080

Unavailable

67

Packing

404161894

$12.70

68

Spring

404103500

$8.47

70

Hose | Grand Touring 500.

404161956

$19.49

71

Clip | Grand Touring 500.

404161957

$17.08

72

Screw

404138800

$6.06

73

Spring

404135400

$8.89

74

Packing

270500118

$8.89

76

Cap

270500095

$9.59

79

Elbow 90°

404128800

$31.99
