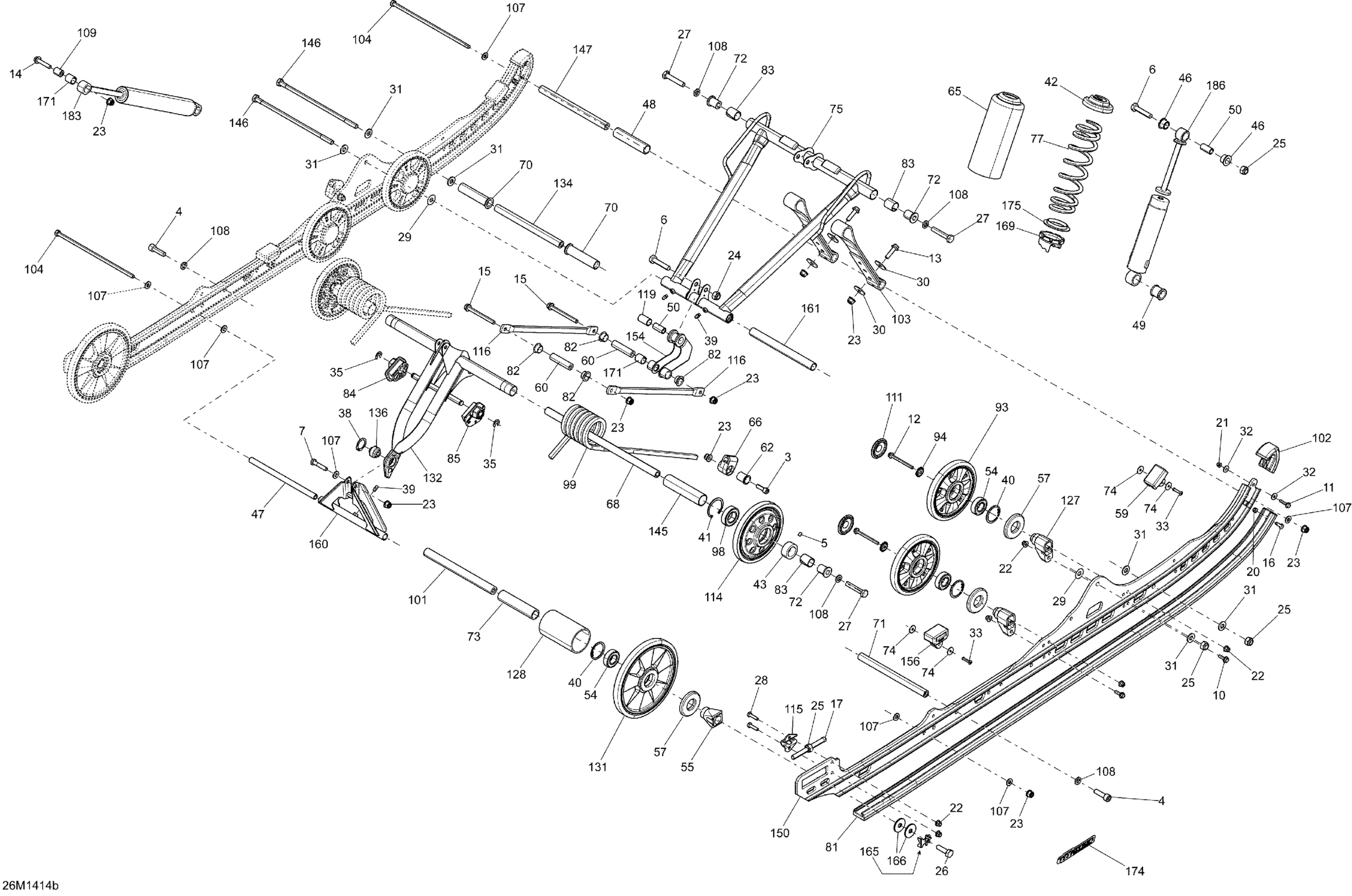

Ski-Doo SUMMIT SPORT 800R POWERTEK XP 154, 2014 Rear Suspension SPORT 800R, 154 Diagram

#

Description
Price

3

Socket Screw M8 X 25

205082554

$2.00

4

Socket Head Screw M10 X 35

205503554

$7.09

5

Socket Set Screw M6 X 8

206260844

$1.43

6

Hex. Screw M10 X 1.5 X 50

207005044

$3.57

7

Hex. Screw M8 X 1.25 X 40

207084056

$3.01

10

Hex. Flange Screw M6 X 25

207662556

$4.15

11

Hex. Flange Screw M5 X 25

207652544

$0.48

12

Hex. Flange Screw M6 X 70

207667056

$4.15

13

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.49

14

Hex. Flange Screw M8 X 40

207684044

$1.43

15

Hex. Flange Screw

207688544

$1.63

16

Phillips Screw M6 X 25

208562531

$2.00

17

Hex Screw M10 x 100

230100054

$6.07

20

Elastic Stop Nut M6

232561414

$1.78

21

Hex. Flange Elastic Nut M5

233251414

$1.91

22

Hex. Flange Elastic Nut M6

233261466

$1.91

23

Elastic Flange Nut M8

233281466

$0.96

24

Elastic Locking Nut M10 X 1.5

233601416

$1.63

25

Elastic Locking Nut M10

233601466

$2.00

26

Hex Cap Screw Nylon M10 x 35 | Not shown

250000592

$4.15

27

Hex. Screw S.Grip M10 X 55

250000605

$7.09

28

Hex Screw M6 X 25

250000619

$0.96

29

Washer

250200032

$4.84

30

Flat Washer 8 mm

250200128

$2.00

31

Washer

250200138

$2.00

32

Washer

250200140

$0.96

33

Pop Rivet 3/16"

293150013

$1.27

35

E-Circlip

293370013

$0.60

38

INNER CIRCLIP - Call your local BRP dealership

293370090

Unavailable

39

Grease Fitting

408200700

$3.21

40

Retaining Ring

415129371

$8.66

41

Retaining Ring

415129780

$13.46

42

Spring Stopper

706200881

$11.82

43

Retaining Ring

503168800

$12.27

46

Urethane Bushing

503189117

$6.67

47

Pivot Arm Axle

503189156

$20.12

48

Spacer

503189265

$4.61

49

Bushing

503189271

$10.15

50

Bushing | Includes 240d to 240d1

503189282

$4.06

54

Ball Bearing | Package-STD

503190396

$8.18

55

Rear Wheel Spacer

503190428

$5.88

57

Labyrinth Seal

503190434

$4.16

59

Rubber Stopper

503190576

$9.93

60

Axle Bar (Long)

503190643

$14.90

62

Spring Support Kit

861805547

$7.90

65

Protector

503193663

$34.30

66

Spring Support Kit

861805547

$7.90

68

Upper Shaft

503191215

$35.04

70

Center Bushing

503191259

$8.70

71

Axle Strap

503191260

$28.33

72

Bushing

503191262

$13.19

73

Rear Spacer

503191263

$14.90

74

Washer

503191273

$1.03

75

FRONT ARM ASS'Y - Call your local BRP dealership

503193803

Unavailable

77

Black, Spring

503191882

$58.18

81

Black, Slider 154

503191198

$32.06

82

Swivel Bushing

503191555

$5.54

83

Extended Bushing

503191556

$5.54

84

LH Cam Adjuster

503191565

$13.54

85

RH Cam Adjuster

503191566

$13.54

93

Black, Wheel Ass'y 152 mm | Includes 450 to 450b

503191755

$44.75

94

Wheel Cup M6

503191820

$4.52

98

Ball Bearing

503193548

$16.39

99

Black, LH Spring Square

503193003

$85.79

99

Black, RH Spring Square

503193002

$85.79

101

REAR WHEEL AXLE - Call your local BRP dealership

503192276

Unavailable

102

Runner Protector

503192299

$23.10

103

Stopper Strap

503192360

$19.37

104

Bolt M8 X 248mm

503192440

$29.07

107

Washer

503192494

$3.01

108

Washer

503192496

$0.73

109

Axle Shock Absorber

503196509

$9.69

111

Black, Wheel Cap

503192771

$2.21

114

Black Wheel Ass'y 155 mm | Included 3070 to 3070b

503192808

$44.75

115

Tensioner

503192583

$5.67

116

Acceleration Link Rod

503192900

$26.09

119

Bushing

503193037

$14.90

127

Casted Support

503193894

$12.37

128

Bushing

503193097

$14.90

131

Black, Wheel Ass'y 200 mm | Includes 670 to 670b

503193098

$48.48

132

REAR ARM - Call your local BRP dealership

503193118

Unavailable

134

Pivot Axle

503193435

$37.28

136

SPHERICAL BEARING - Call your local BRP dealership

503193148

Unavailable

145

Bushing

503193218

$9.69

146

Bolt M10 X 251MM

503193227

$15.64

147

STRAP AXLE - Call your local BRP dealership

503193332

Unavailable

150

RAIL_SUSPENSION 154 MACHINED - Call your local BRP dealership | Package-Sport

503193338

Unavailable

154

Rocker

503193464

$76.09

156

Rubber Stopper

503193504

$12.31

160

Pivot Arm

503193699

$118.63

161

Lower Axle

503193702

$67.88

165

LOCK TAB - Call your local BRP dealership

503194073

Unavailable

166

Washer 10 mm

506150000

$2.55

169

Adjustment Cam

505073625

$11.82

171

Leg Cushion

505072663

$7.18

173

Not Available As Spare Part - Friction Washer

Unavailable

174

Runner Decal

516006381

$12.42

175

Spring Guide

503191872

$2.12

183

Rear Shock

503193189

$231.31

186

Center Shock

503192209

$152.96
