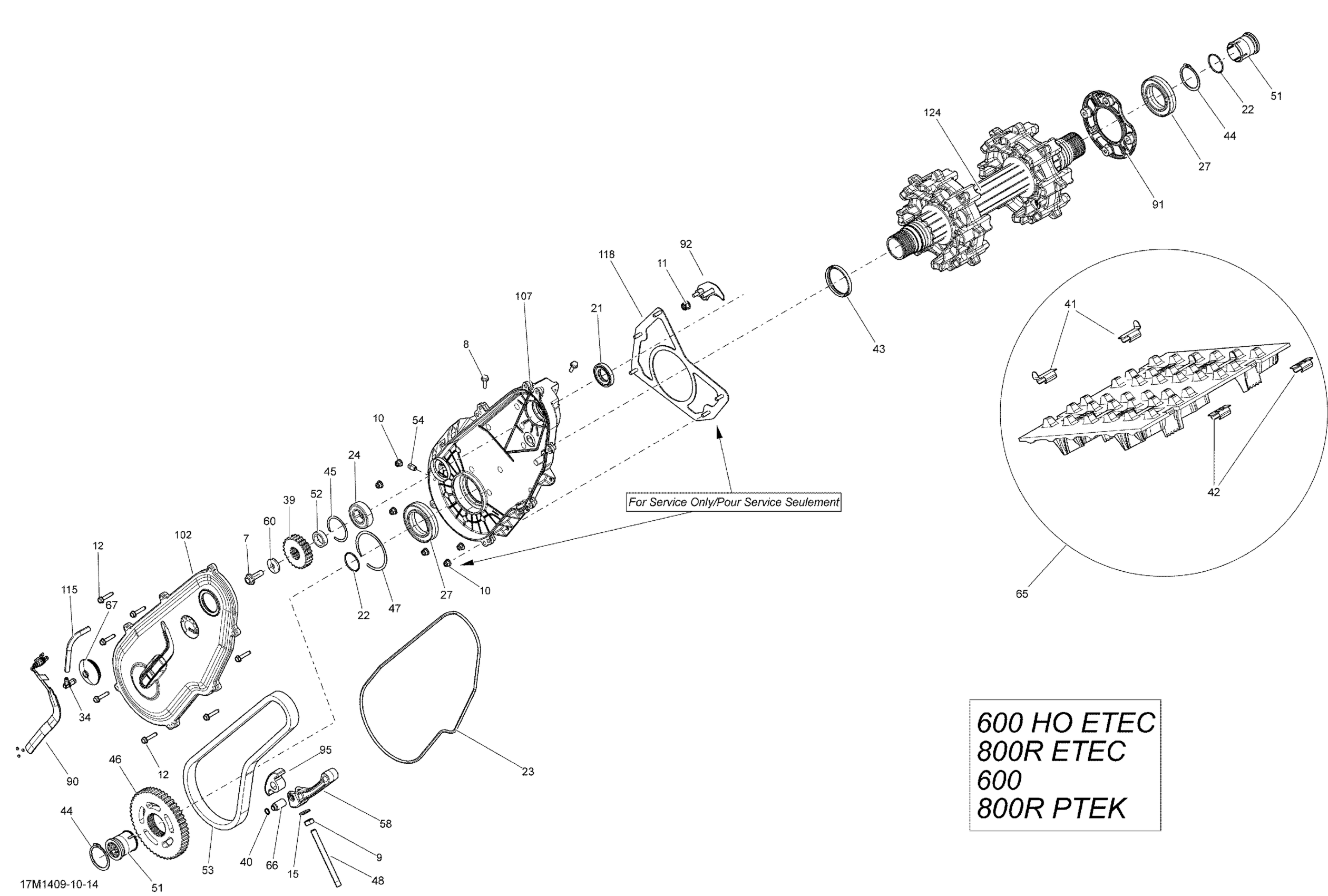

Ski-Doo SUMMIT SPORT 800R POWERTEK XP 154, 2014 05- Drive System 800R PTEK Diagram

#

Description
Price

7

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.96

8

Hex. Flange Screw M6 X 20

207662034

$2.11

9

Hex. Nut M10 X 1.5

232006414

$1.37

10

Flange Elastic Nut M6

233261434

$4.44

11

Hex. Flange Elastic Nut M8

233281414

$1.47

12

Hex. Flange Screw M6 X 30 | International

210263050

$2.09

15

Bonded Washer

250200100

$2.11

21

Oil Seal

293200158

$14.22

22

O-Ring

293300122

$2.11

23

Tight Seal

293300130

$7.51

24

Ball Bearing

293350115

$12.11

27

Ball Bearing

293350059

$30.99

34

Male Connector

414580700

$4.12

39

Sprocket, 19 Teeth

504153783

$111.49

40

Circlip

504152282

$3.17

41

Track Guide | Track Width 16''

415129528

$3.29

42

Cleat

504152651

$9.69

43

Oil Seal

293200159

$16.25

44

Circlip

504152572

$6.95

45

Circlip

504152576

$9.99

46

Kit Sprocket This part replaces 504152581.

861805539

$159.99

47

Circlip

504152582

$9.99

48

Adjustment Screw

504152602

$12.49

51

Magnetic Cap

504152619

$23.49

52

Shim

504152628

$10.99

53

Drive Chain, 104 Links

504152629

$179.99

54

Magnetic Plug 1/8 - 27 NPTF

504152636

$11.49

58

Tensioner chain

504153429

$15.99

60

Spring Washer M10

504152784

$7.65

65

Track Ass'y 16" X 154" X 2.2"P

504153015

$1.00

66

Tensioner Axle

504152841

$16.34

67

Cap

504152860

$20.49

90

Rotation Sensor

504152896

$37.99

91

Retaining Ring

504153886

$21.99

92

Bearing Housing Ass'y | Includes 2500 to 2500a

504153418

$17.53

95

Slider Chain

504152739

$65.99

102

Chaincase Cover Ass'y | Includes 1700 to 1700c

504153147

$349.99

107

Chaincase

504153181

$349.99

115

Polyurethane Hose 10000Mm Long

219704410

$56.99

118

Plate | Not Shown

518325816

$79.99

124

Drive Axle Ass'y

504154054

$529.99
