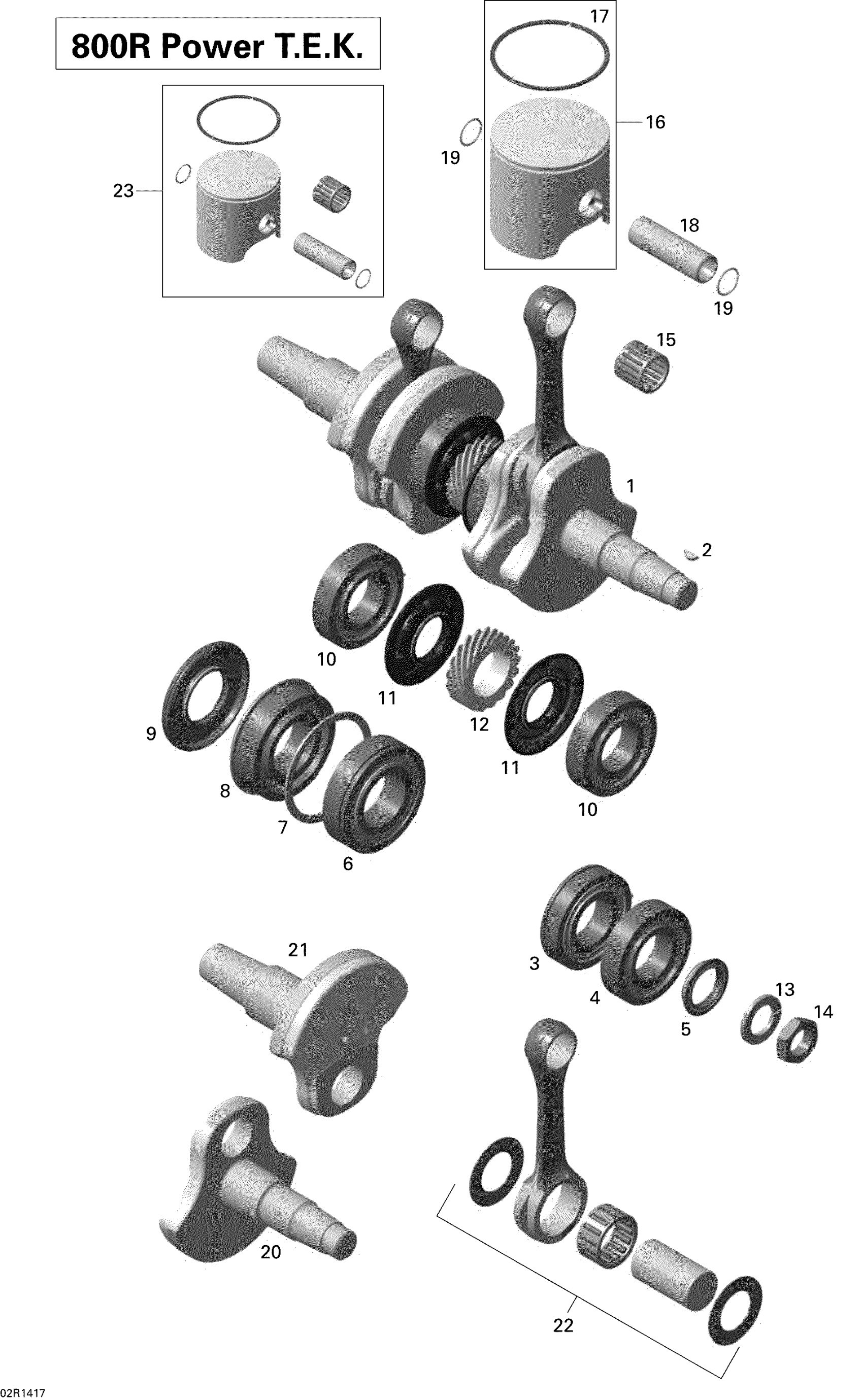

Ski-Doo SUMMIT SPORT 800R POWERTEK XP 154, 2014 Crankshaft And Pistons Diagram

#

Description
Price

1

Crankshaft Ass'y | Includes 1 to 12

420893097

$1,359.99

1

Crankshaft Ass'y | Includes 1 to 12

420893097

$1,359.99

2

Woodruff Key

420246015

$3.01

3

Ball Bearing

420832175

Unavailable

4

Ball Bearing 6207 | With drive pin

420832575

$49.22

5

Oil Seal

420931795

$16.39

6

Ball Bearing | With drive pin

420832602

$94.00

7

Washer

420926190

$10.76

8

Ball Bearing | With drive pin

420832702

$83.55

9

Oil Seal | Included in gasket kit

420931284

$22.36

10

Ball Bearing

420832175

Unavailable

11

Oil Seal

420931455

$33.55

12

CENTRAL GEAR - Call your local BRP dealership

420834565

Unavailable

13

Lock Washer, 22 mm

420945759

$1.78

14

Hex. Nut, M22 X 1.5

420842239

$16.39

15

Needle Bearing

420832030

$28.33

16

Piston Ass'y, 81.87 mm | Includes 16 to 17

420890726

$232.81

17

Semi-Trapez Ring

420815416

$76.84

18

Piston Pin

420916480

$36.54

19

Piston Circlip | Included in gasket kit

420845467

$4.30

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Rod Repair Kit, MAG Side

420892568

Unavailable

22

Rod Repair Kit, PTO Side

420892569

$319.99

23

PISTON KIT - Call your local BRP dealership

415129407

Unavailable
