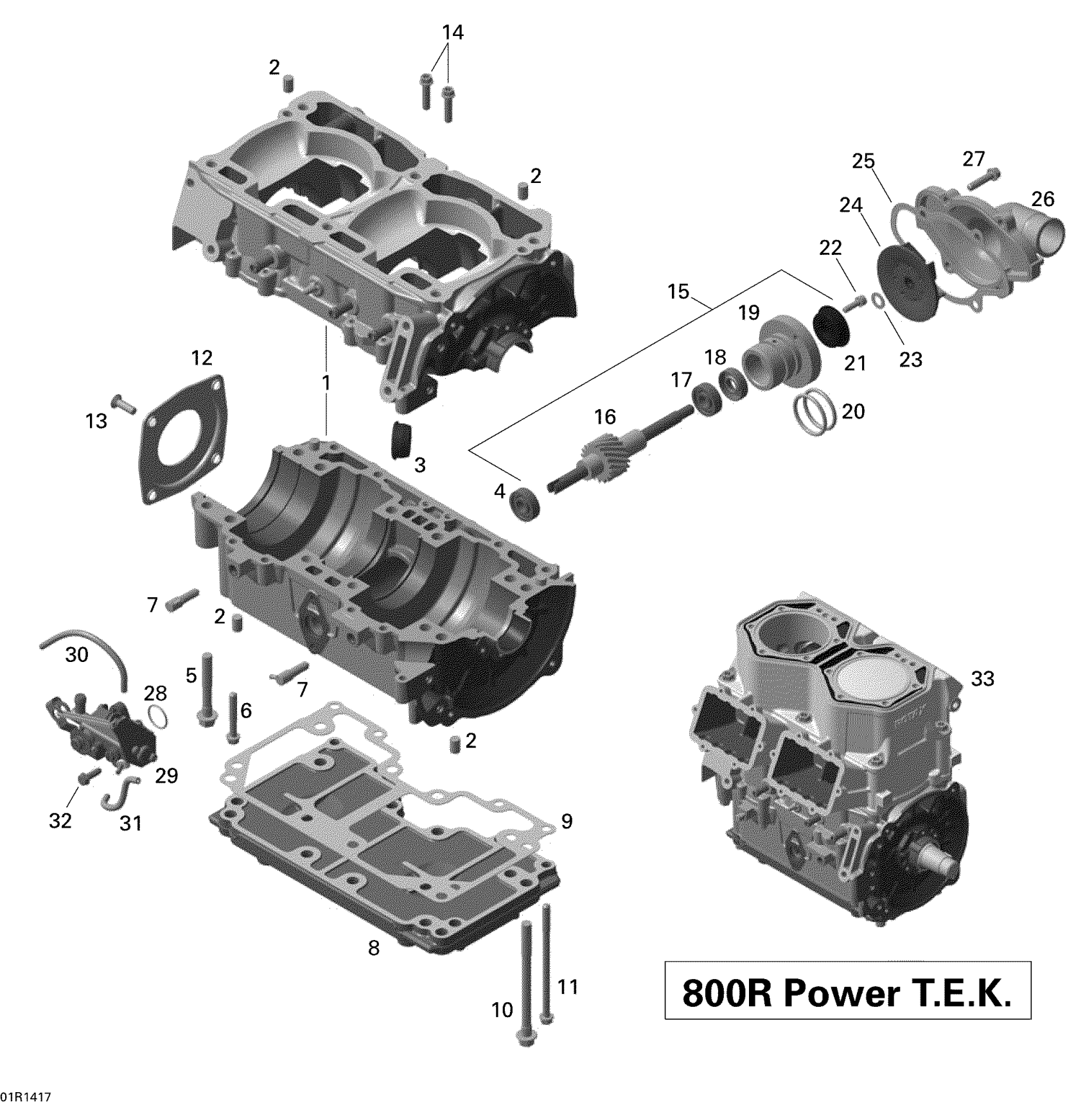

Ski-Doo SUMMIT SPORT 800R POWERTEK XP 154, 2014 01- Crankcase, Water Pump And Oil Pump Diagram

#

Description
Price

1

CRANKCASE ASS'Y - Call your local BRP dealership | Includes 1 to 7

420890748

Unavailable

2

Center Pin 8 X 12

420632010

$4.01

3

Cable Grommet

420860965

$14.28

4

Ball Bearing

420232100

$20.99

5

Hex. Screw M8 X 56.5

420941627

$8.57

6

Torx Flange Screw M6 X 40

420440282

$3.17

7

Check Valve

420956511

$35.99

8

ENGINE SUPPORT - Call your local BRP dealership

420812683

Unavailable

9

Gasket Engine Support

420430070

$23.99

10

Screw M8x105

420941518

$10.60

11

Socket Head Screw M6 X 100 This part replaces 420241601.

420241602

$3.17

12

Oil Seal Cover

420812422

$14.83

13

Screw M6 X 20

420941436

$3.17

14

Torx Flange Screw M6 X 25

420440234

$3.06

15

WATER PUMP/OIL PUMP SHAFT ASS'Y | Includes 13 to 19 This part replaces 420837676.

420837677

$232.99

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Ball Bearing

420232100

$20.99

18

Oil Seal

420230195

$15.36

19

Not Available As Spare Part - Friction Washer

Unavailable

20

O-Ring

420950890

$4.44

21

Rotary Seal

420650371

$43.49

22

Allen Screw M5 x 16

420840514

$1.90

23

Washer 8.4

420944033

$1.01

24

Water Impeller

420922805

$37.99

25

Joint Couv.Pom.*Gasket Cover Water Pump This part replaces 420430050.

420430051

$14.28

26

Water Pump Housing

420822280

$62.49

27

Torx Flange Screw M6 X 25

420440234

$3.06

28

O-Ring

293300041

$8.57

29

Oil Pump Ass’y

420888774

$459.99

30

Oil Hose 1500Mm Long

219704404

$17.26

31

Oil Hose 1500Mm Long

219704404

$17.26

32

Taptite Screw M5 X 16

420941928

Unavailable

33

Short Block 797 XP

420079709

$2.00

33

Short Block 797 Ptek This part replaces 421000676.

861805566

$2.00
