Description

Price

1

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

2

Oetiker Clamp

293650046

$2.89

3

Crimp Clamp, 15.3-706R

293650047

$3.29

4

Crimp Clamp

293650099

$4.29

5

Tridon Gear Clamp

293650170

$1.99

6

Not Available As Spare Parts

XXX

Unavailable

7

Y-Fitting

293710059

$9.69

8

Not Available As Spare Parts

XXX

Unavailable

9

Tie Wrap 368 mm

293750008

$1.04

12

Tie-Rap 180 mm

414115200

$0.11

16

Radiator Pressure Cap

509000180

$20.49

17

Coolant Tank

509000368

$92.99

19

T-Fitting

509000372

$10.33

20

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

21

Aba Gear Clamp, 26-38 MM

509000443

$12.72

25

Thermostat Housing

509000499

$42.99

26

Bleeder Hose

509000502

$23.99

28

T-Fitting

509000510

$13.16

29

BLEEDER HOSE - Call your local BRP dealership

509000516

Unavailable

30

BLEEDER HOSE - Call your local BRP dealership

509000517

Unavailable

31

Oetiker Gear Clamp, 36.5-706R

509000529

$9.95

32

ENGINE OUTLET HOSE - Call your local BRP dealership

509000669

Unavailable

33

Radiator Hose

509000670

$36.99

34

Radiator Hose This part replaces 509000671.

509001066

$20.99

35

Bypass Hose

509000672

$24.99

37

Radiator Hose

509000673

$23.49

39

Engine Inlet Hose

509000997

$19.99

41

Filling Hose

509000676

$23.99

42

Not Available As Spare Parts

XXX

Unavailable

45

Thermostat Outlet Hose

509000679

$25.99

47

Not Available As Spare Parts

XXX

Unavailable

50

Not Available As Spare Parts

XXX

Unavailable

54

Not Available As Spare Parts

XXX

Unavailable

55

Not Available As Spare Parts

XXX

Unavailable

56

Not Available As Spare Parts

XXX

Unavailable

59

Tubing 16 Mm 1000Mm Long

219704408

$7.49

60

Not Available As Spare Parts

XXX

Unavailable

62

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

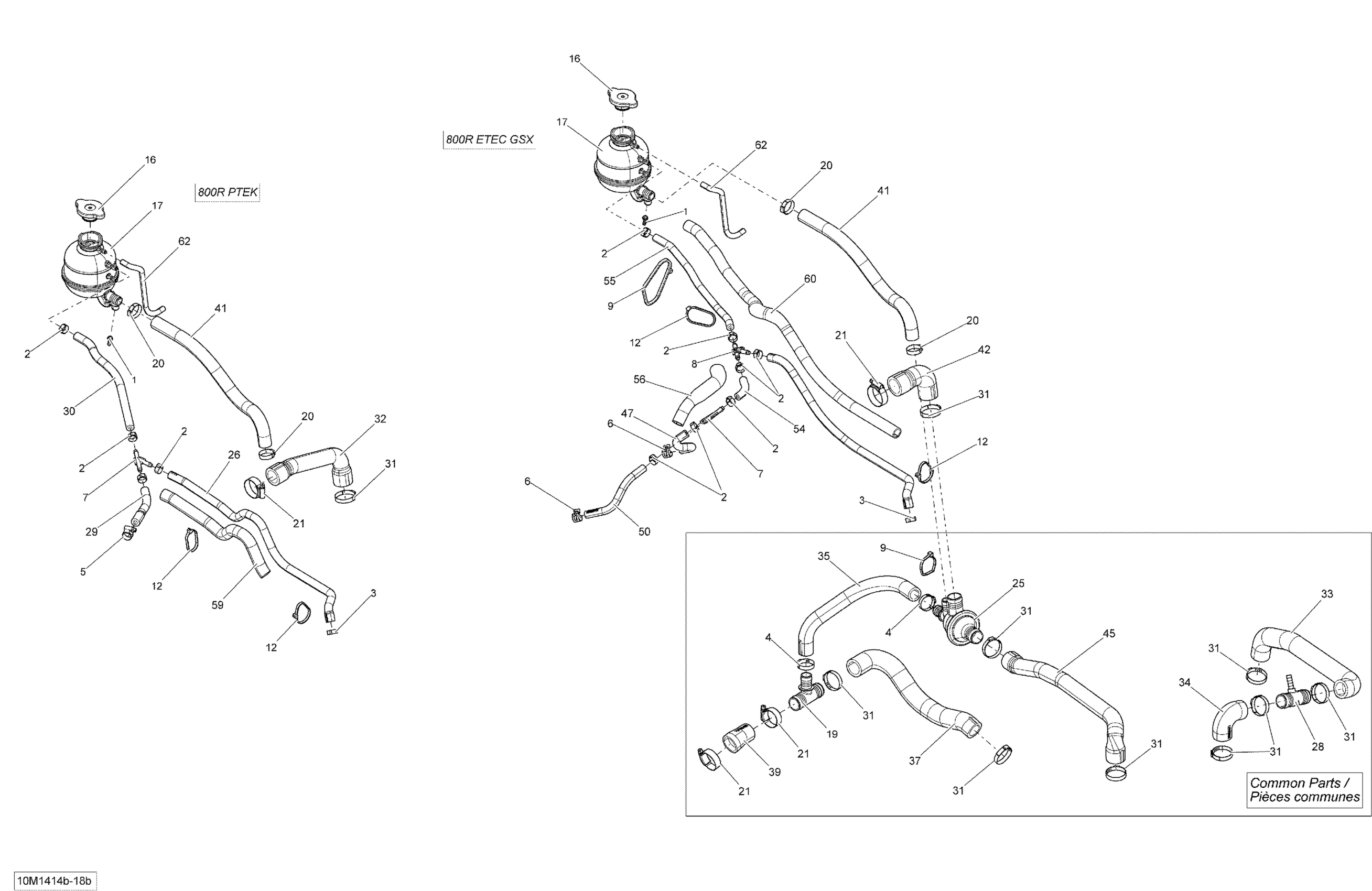

Ski-Doo SUMMIT SPORT 800R POWERTEK XP 154, 2014 01- Cooling System 800 RPTEK Diagram

Hex. Flange Screw K50 X 2.24 X 16

Oetiker Clamp

Crimp Clamp, 15.3-706R

Crimp Clamp

Tridon Gear Clamp

Not Available As Spare Parts

Y-Fitting

Not Available As Spare Parts

Tie Wrap 368 mm

Tie-Rap 180 mm

Radiator Pressure Cap

Coolant Tank

T-Fitting

Oeticker Gear Clamp, 25.6-706R

Aba Gear Clamp, 26-38 MM

Thermostat Housing

Bleeder Hose

T-Fitting

BLEEDER HOSE - Call your local BRP dealership

BLEEDER HOSE - Call your local BRP dealership

Oetiker Gear Clamp, 36.5-706R

ENGINE OUTLET HOSE - Call your local BRP dealership

Radiator Hose

Radiator Hose This part replaces 509000671.

Bypass Hose

Radiator Hose

Engine Inlet Hose

Filling Hose

Not Available As Spare Parts

Thermostat Outlet Hose

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

Tubing 16 Mm 1000Mm Long

Not Available As Spare Parts

Was 415110000 Polyurethane Hose 5.2 mm
