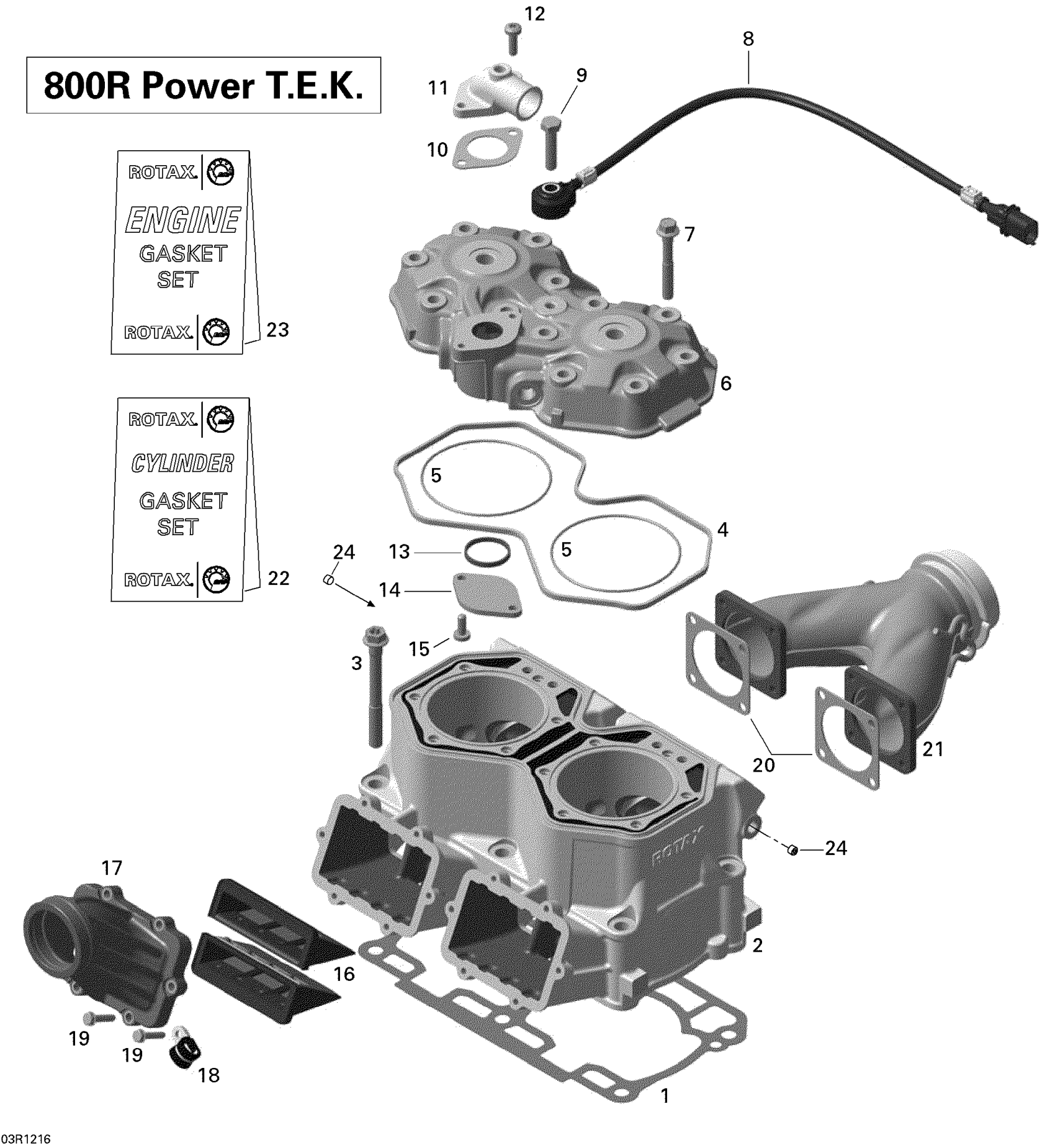

Ski-Doo Summit SPORT 800R P-TEK, 2012 01- Cylinder and Cylinder Head Diagram

#

Description
Price

1

Double Gasket 0.5 mm

420430080

$25.99

1

Double Gasket 0.6 mm

420430081

$28.49

1

Double Gasket 0.7 mm

420430082

$35.99

1

Double Gasket 0.8 mm

420430083

$35.99

1

Double Gasket 0.9 mm

420430084

$20.49

2

Cylinder

420413041

$904.99

2

Cylinder

420413041

$904.99

3

Torx Flange Screw M10 X 90 -SW 13/T50

420441187

$19.99

4

O-Ring

420430040

$6.19

5

O-Ring | Included in gasket kit

420931410

$3.39

6

Cylinder Head Cover

420613925

$265.99

7

Hex. Screw M8 X 56.5

420941627

$8.57

8

Noise Sensor

270000484

$82.99

9

Hex. Screw M8 X 35

207083544

$1.15

10

Gasket

420850338

$11.60

11

BENT OUTLET SOCKET - Call your local BRP dealership

420922062

Unavailable

12

Torx Flange Screw M6 X 20

420441386

$2.11

13

Gasket

420630780

$4.12

14

COVER - Call your local BRP dealership

420926260

$26.99

15

Torx Screw M6 X 16

420640324

$2.11

16

Reed Valve Ass'y

420924798

$42.99

17

Intake Socket

420667472

$89.99

18

Clamp

420851250

$10.33

19

Hex. Taptite Screw M5 X 25 This part replaces 420241270.

420241271

$2.11

20

Gasket

420430482

$8.89

21

Exhaust Manifold This part replaces 420673373.

420673374

$299.99

22

Gasket Set, Cylinder

420892477

$163.99

23

Gasket Set, Engine

420892472

$349.99

24

Socket Set Screw M10 x 1.25 x 10 mm

415129628

$2.11
