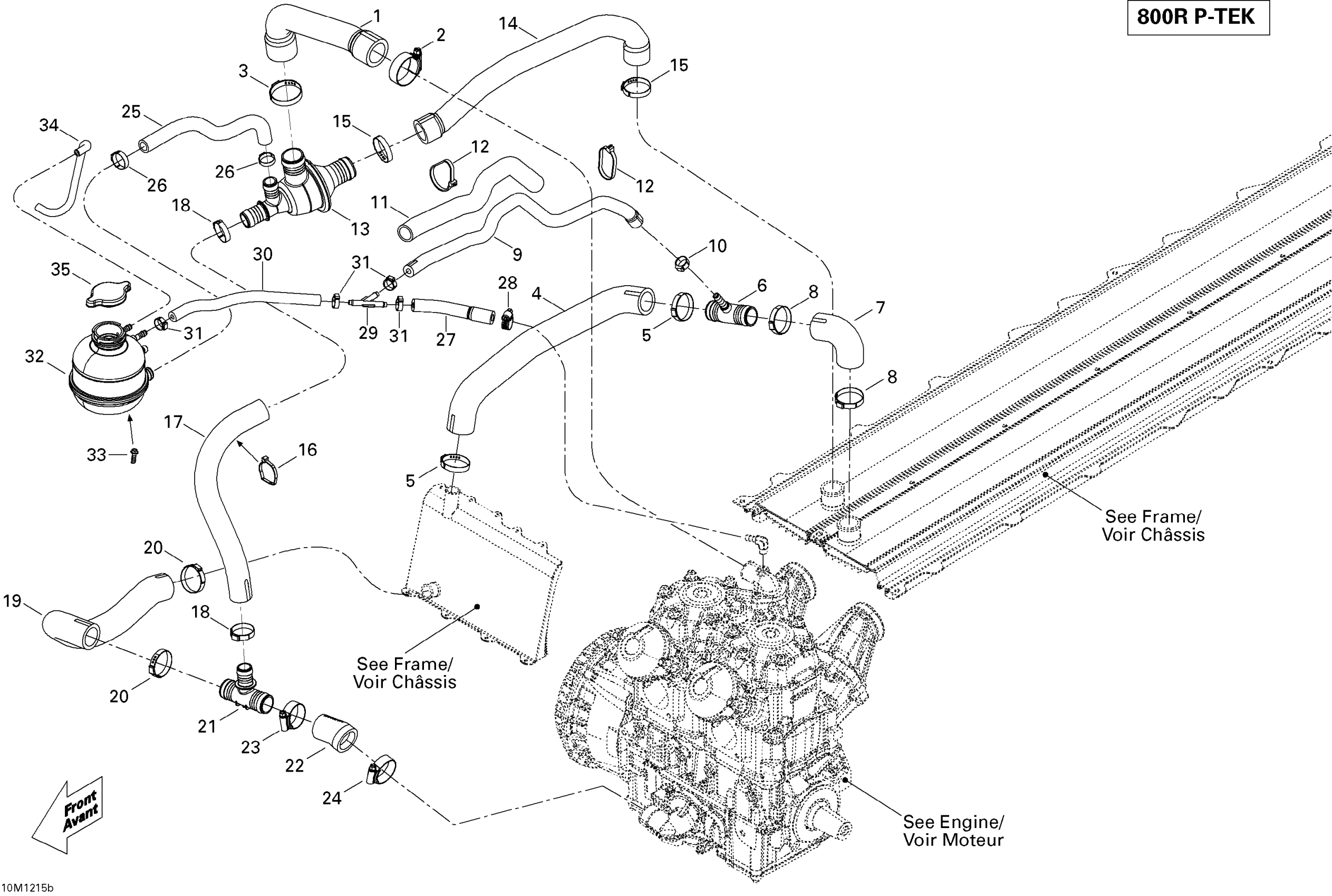

Ski-Doo Summit SPORT 800R P-TEK, 2012 01- Cooling System 800R Diagram

#

Description
Price

1

ENGINE OUTLET HOSE - Call your local BRP dealership

509000669

Unavailable

2

Aba Gear Clamp, 26-38 MM

509000443

$12.72

3

Oetiker Gear Clamp, 36.5-706R

509000529

$9.95

4

Radiator Hose

509000670

$36.99

5

Oetiker Gear Clamp, 36.5-706R

509000529

$9.95

6

T-Fitting

509000510

$13.16

7

Radiator Hose This part replaces 509000671.

509001066

$20.99

8

Oetiker Gear Clamp, 36.5-706R

509000529

$9.95

9

Bleeder Hose

509000502

$23.99

10

Crimp Clamp, 15.3-706R

293650047

$3.29

11

Tubing 16 Mm 1000Mm Long

219704408

$7.49

12

Tie-Rap 180 mm

414115200

$0.11

13

Thermostat Housing

509000499

$42.99

14

Thermostat Outlet Hose

509000679

$25.99

15

Oetiker Gear Clamp, 36.5-706R

509000529

$9.95

16

Tie Wrap 368 mm

293750008

$1.04

17

Bypass Hose

509000672

$24.99

18

Crimp Clamp

293650099

$4.29

19

Radiator Hose

509000673

$23.49

20

Oetiker Gear Clamp, 36.5-706R

509000529

$9.95

21

T-Fitting

509000372

$10.33

22

Engine Inlet Hose

509000997

$19.99

23

Aba Gear Clamp, 26-38 MM

509000443

$12.72

24

Aba Gear Clamp, 26-38 MM

509000443

$12.72

25

Filling Hose

509000676

$23.99

26

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

27

BLEEDER HOSE - Call your local BRP dealership

509000516

Unavailable

28

Tridon Gear Clamp

293650170

$1.99

29

Y-Fitting

293710059

$9.69

30

BLEEDER HOSE - Call your local BRP dealership

509000517

Unavailable

31

Oetiker Clamp

293650046

$2.89

32

Coolant Tank

509000368

$92.99

33

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

34

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

35

Radiator Pressure Cap

509000180

$20.49
