Description

Price

1

Socket Screw M8 X 25

205082554

$2.11

2

Socket Head Screw M10 X 35

205503554

$7.51

3

Socket Set Screw M6 X 8

206260844

$1.48

4

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

5

Hex. Screw M8 X 1.25 X 40

207084056

$3.17

6

Not Available As Spare Parts

XXX

Unavailable

7

Not Available As Spare Parts

XXX

Unavailable

8

Hex. Flange Screw M5 X 25

207652544

$0.50

9

Hex. Flange Screw M6 X 70

207667056

$4.44

10

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

11

Hex. Flange Screw M8 X 40

207684044

$1.48

12

Phillips Screw M6 X 25

208562531

$2.11

13

Hex Screw M10 x 100

230100054

$6.45

14

Hexagonal Nut M6

232061404

$0.34

15

Black Runner 146" | Includes 10,001 to 10,002

503193827

$309.99

16

Elastic Stop Nut M6

232561434

$1.99

17

Flange Elastic Nut M5

233251434

$2.00

18

Hex. Flange Elastic Nut M6

233261466

$2.00

19

Elastic Flange Nut M8

233281466

$1.01

20

Elastic Locking Nut M10 X 1.5

233601416

$1.69

21

Elastic Locking Nut M10

233601466

$2.11

22

Hex. Screw S.Grip M10 X 55

250000605

$8.11

23

Hex Screw M6 X 25

250000619

$1.01

24

Washer

250200032

$5.08

25

Flat Washer 8 mm

250200128

$4.44

26

Washer

250200140

$1.01

27

Washer-Spring Conical M8

250200159

$2.11

28

Pop Rivet 3/16"

293150013

$1.37

29

Runner Decal

516006381

$14.99

30

E-Circlip

293370013

$0.65

33

Grease Fitting

408200700

$3.49

34

Retaining Ring

415129371

$12.01

35

Retaining Ring

415129780

$15.79

36

Retaining Ring

503168800

$14.99

37

Urethane Bushing

503189117

$8.19

38

Pivot Arm Axle

503189156

$21.99

39

Spacer

503189265

$4.99

40

Bushing

503189271

$13.99

41

Bushing | Includes 240d to 240d1

503189282

$4.34

42

Ball Bearing | Package-STD

503190396

$14.30

43

Rear Wheel Spacer

503190428

$8.14

44

Labyrinth Seal

503190434

$6.09

45

Rubber Stopper

503190576

$12.99

46

Axle Bar (Long)

503190643

$17.39

47

Spring Support Kit

861805547

$10.49

48

Spring Support Kit

861805547

$10.49

49

Not Available As Spare Parts

XXX

Unavailable

50

Upper Shaft

503191215

$38.99

51

Center Bushing

503191259

$11.49

52

Axle Strap

503191260

$30.99

53

Bushing

503191262

$15.79

54

Rear Spacer

503191263

$18.49

55

Washer

503191273

$1.35

56

Black, Slider 146

503191499

$34.99

57

Not Available As Spare Parts

XXX

Unavailable

58

Swivel Bushing

503191555

$7.83

59

Extended Bushing

503191556

$7.83

60

LH Cam Adjuster

503191565

$16.49

61

RH Cam Adjuster

503191566

$16.49

62

Black, Wheel Ass'y 152 mm | Includes 450 to 450b

503191755

$48.49

63

Wheel Cup M6

503191820

$4.99

64

Ball Bearing

503193548

$17.99

65

Runner Protector

503192299

$24.99

66

Stopper Strap

503192360

$20.99

67

Bolt M8 X 248mm

503192440

$30.49

68

Washer

503192494

$3.17

70

Axle Shock Absorber

503196509

$12.58

71

Not Available As Spare Parts

XXX

Unavailable

72

Black, Wheel Cap

503192771

$2.39

73

Black Wheel Ass'y 155 mm | Included 3070 to 3070b

503192808

$48.49

74

Acceleration Link Rod

503192900

$28.49

75

Not Available As Spare Parts

XXX

Unavailable

76

Not Available As Spare Parts

XXX

Unavailable

77

Bushing

503193037

$16.18

78

Bushing

503193097

$18.49

79

Black, Wheel Ass'y 200 mm | Includes 670 to 670b

503193098

$51.99

80

REAR ARM - Call your local BRP dealership

503193118

Unavailable

81

SPHERICAL BEARING - Call your local BRP dealership

503193148

$68.99

82

Bushing

503193218

$12.58

83

Bolt M10 X 251MM

503193227

$17.29

84

STRAP AXLE - Call your local BRP dealership

503193332

Unavailable

87

Rocker

503193464

$83.99

88

Rubber Stopper

503193504

$14.99

89

Not Available As Spare Parts

XXX

Unavailable

90

Pivot Arm

503193699

$129.99

91

Lower Axle

503193702

$65.99

92

FRONT ARM ASS'Y - Call your local BRP dealership

503193803

Unavailable

93

Tensioner

503192583

$8.29

94

Casted Support

503193894

$16.49

95

REAR WHEEL AXLE - Call your local BRP dealership

503194066

Unavailable

96

Axle Slider

503194412

$14.49

97

Bolt M8

503194069

$30.49

98

Leg Cushion

505072663

$9.23

99

Hex. Flange Screw M6 X 25

207662556

$4.44

100

Pivot Axle

503193435

$39.99

101

Flat Washer

250200143

$3.17

102

Flange Elastic Nut M10

233201466

$3.17

103

Flat Washer

250200143

$3.17

104

INNER CIRCLIP - Call your local BRP dealership

293370090

Unavailable

105

Black, LH Spring Square

503193003

$90.99

106

Black, RH Spring Square

503193002

$90.99

107

Screw M8 X 90

503193372

$4.44

108

Center Shock

503192209

$164.49

109

Adjustment Cam

505073625

$12.99

110

Spring Guide

503191872

$2.29

111

Black, Spring

503191882

$62.49

112

Spring Stopper

706200881

$12.99

113

Protector

503193663

$37.99

114

Not Available As Spare Parts

XXX

Unavailable

115

Not Available As Spare Parts

XXX

Unavailable

116

Not Available As Spare Parts

XXX

Unavailable

117

Not Available As Spare Parts

XXX

Unavailable

118

Not Available As Spare Parts

XXX

Unavailable

118a

Not Available As Spare Parts

XXX

Unavailable

118b

Not Available As Spare Parts

XXX

Unavailable

118c

Not Available As Spare Parts

XXX

Unavailable

118d

Not Available As Spare Parts

XXX

Unavailable

118e

Not Available As Spare Parts

XXX

Unavailable

118f

Not Available As Spare Parts

XXX

Unavailable

119

Not Available As Spare Parts

XXX

Unavailable

120

Not Available As Spare Parts

XXX

Unavailable

121

Not Available As Spare Parts

XXX

Unavailable

122

Not Available As Spare Parts

XXX

Unavailable

123

Not Available As Spare Parts

XXX

Unavailable

123a

Not Available As Spare Parts

XXX

Unavailable

123b

Not Available As Spare Parts

XXX

Unavailable

123c

Not Available As Spare Parts

XXX

Unavailable

123d

Not Available As Spare Parts

XXX

Unavailable

123e

Not Available As Spare Parts

XXX

Unavailable

123f

Not Available As Spare Parts

XXX

Unavailable

124

Rear Shock

503193189

$248.99

125

Not Available As Spare Parts

XXX

Unavailable

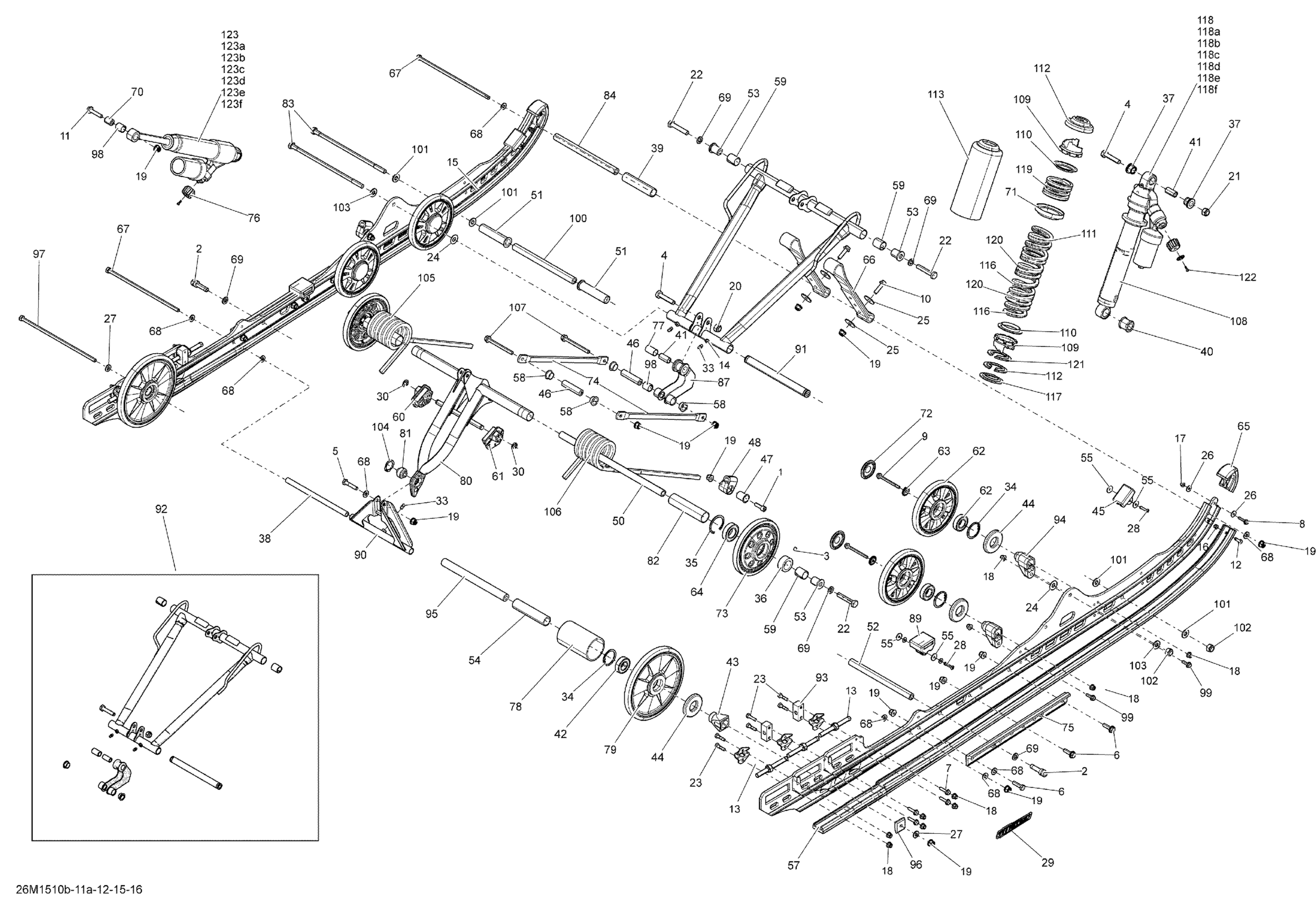

Ski-Doo Summit Sport 600 XP146, 2015 08- Rear Suspension _26M1515 Diagram
