Description

Price

1

Hex. Screw M10 X 1.5 X 65

207006544

$2.89

2

Hex. Flange Elastic Nut M8

233281414

$1.47

3

Screw Hex. M10 X 50

250001022

$1.69

4

Screw Hex. M10 X 60

250001023

$2.11

5

Screw Hex. M10 X 70

250001024

$2.11

6

Circlip

293370035

$2.64

7

Circlip

293370070

$8.99

9

Spring Guide

503187500

$10.49

10

Washer

503189564

$0.74

11

Spacer

503193651

$9.69

12

Ski Bushing

505071781

$16.18

13

Retainer 17mm long

505071812

$5.95

14

Spacer

506133300

$23.99

15

Retainer 23mm Long

505072133

$6.78

16

Sleeve

505072143

$9.00

17

Bushing

505072208

$3.28

18

Sleeve

505072209

$17.84

19

Bushing

505072250

$3.28

20

Washer

505072392

$4.76

21

O-Ring

505072448

$2.32

22

Wear Plate

505072634

$6.29

23

Leg Bushing

505072690

$12.49

24

Bushing

505072786

$9.23

25

Black, Handle

505072976

$35.99

26

Black, LH Lower Arm

505073039

$204.99

26

Black, Lower Arm RH

505073040

$204.99

28

Stabilisator Lever

505073176

$18.73

29

Black, Ski

505073227

$179.99

30

Clear, LH Ski Leg

505073557

$249.99

30

Clear, RH Ski Leg

505073558

$249.99

31

Black Upper Arm LH 36"

505073466

$154.99

31

Black Upper Arm RH 36"

505073467

$154.99

33

Cap

706200785

$4.69

34

Spring Stopper

706200881

$12.99

35

Hex. Screw M10 X 130 | Model-RT STD

250000703

$9.91

36

Hex. Flange Elastic Nut M10

250100165

$0.85

37

Stabilisator

505073609

$63.99

38

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.44

39

Hex. Flange Elastic Nut M6

233261466

$2.00

40

Double Ball Joint Link

505073172

$56.99

41

Black, Spring

505072763

$67.99

42

Adjustment Cam

505073625

$12.99

43

Front Shock

505073122

$164.49

44

Not Available As Spare Parts

XXX

Unavailable

45

Not Available As Spare Parts

XXX

Unavailable

46

Not Available As Spare Parts

XXX

Unavailable

47

Not Available As Spare Parts

XXX

Unavailable

48

Shock Decal "Mc"

516005535

$12.99

49

Not Available As Spare Parts

XXX

Unavailable

50

Not Available As Spare Parts

XXX

Unavailable

51

Not Available As Spare Parts

XXX

Unavailable

52

Hex Screw M10 X 1.5 X 55

207005554

$7.51

53

Ball Joint

505073636

$51.99

54

Upper Ball Joint

505072913

$72.99

55

Washer

503192491

$4.54

56

Hex Elastic Nut M12 X 1.25

232521464

$2.11

57

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$92.99

58

Hex. Flange Elastic Nut M10

233201414

$1.58

59

Washer

732900049

$0.58

60

Ski Stopper

505071779

$18.78

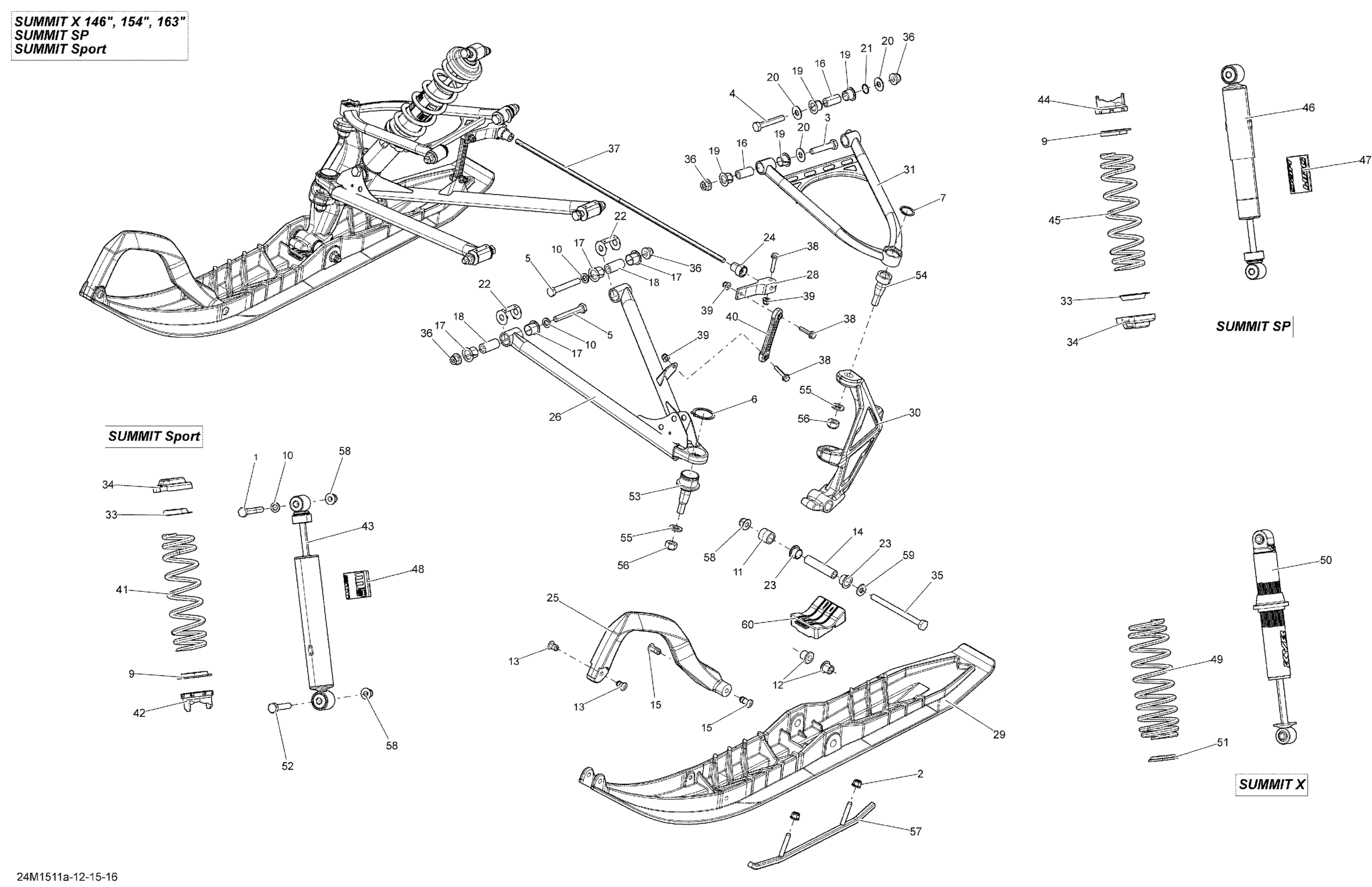

Ski-Doo Summit Sport 600 XP146, 2015 07- Front Suspension And Ski _24M1515 Diagram

Hex. Screw M10 X 1.5 X 65

Hex. Flange Elastic Nut M8

Screw Hex. M10 X 50

Screw Hex. M10 X 60

Screw Hex. M10 X 70

Circlip

Circlip

Spring Guide

Washer

Spacer

Ski Bushing

Retainer 17mm long

Spacer

Retainer 23mm Long

Sleeve

Bushing

Sleeve

Bushing

Washer

O-Ring

Wear Plate

Leg Bushing

Bushing

Black, Handle

Black, LH Lower Arm

Black, Lower Arm RH

Stabilisator Lever

Black, Ski

Clear, LH Ski Leg

Clear, RH Ski Leg

Black Upper Arm LH 36"

Black Upper Arm RH 36"

Cap

Spring Stopper

Hex. Screw M10 X 130 | Model-RT STD

Hex. Flange Elastic Nut M10

Stabilisator

Hex. Flange Screw M6 X 1.0 X 30

Hex. Flange Elastic Nut M6

Double Ball Joint Link

Black, Spring

Adjustment Cam

Front Shock

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

Shock Decal "Mc"

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

Hex Screw M10 X 1.5 X 55

Ball Joint

Upper Ball Joint

Washer

Hex Elastic Nut M12 X 1.25

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

Hex. Flange Elastic Nut M10

Washer

Ski Stopper
