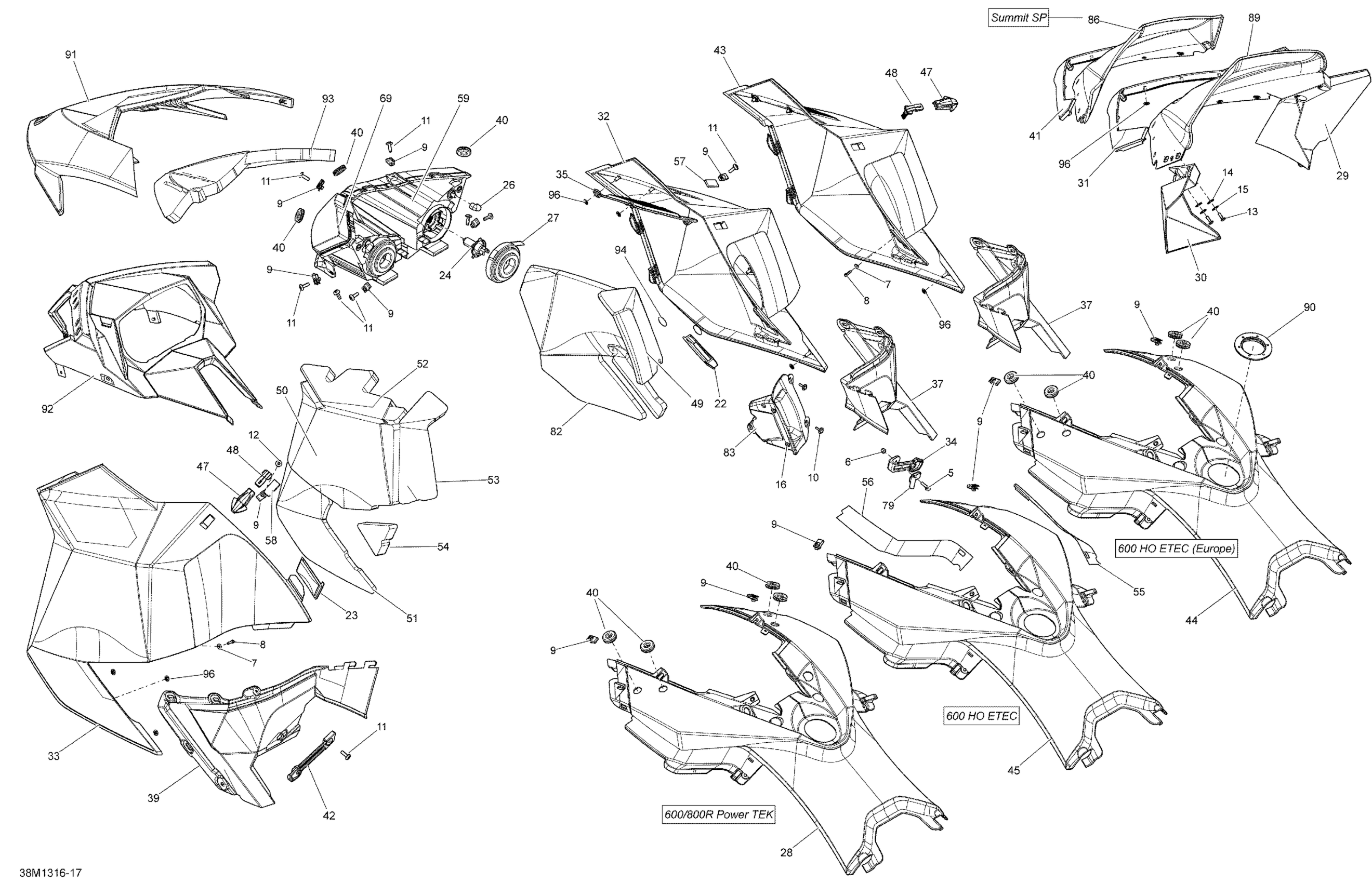

Ski-Doo SUMMIT SPORT 600, 2013 09- Hood, Windshield And Console Diagram

#

Description
Price

5

Torx Screw M5 X 20

250000792

$2.11

6

Hex. Flange Elastic Nut M5

233251414

$1.04

7

Flat Washer 4 mm, Stainless

234042600

$1.15

8

Hex. Flange Screw K40 X 16

241141660

$1.48

9

Panel Nut M6 X 1.0

250100198

$2.11

10

Screw M4 X 16

250000725

$3.49

11

Torx Screw M6 X 20

250000722

$1.68

12

Torx Truss Screw M6 X 16

250000721

$1.69

13

Torx Screw K50 X 16

250000720

$1.69

14

Rubber Washer 5 mm

250200024

$2.19

15

Washer M5

250200025

$0.74

16

Black, Cap

275500241

$3.49

22

LH Panel Clip

513033472

$5.99

23

RH Panel Clip

513033471

$7.19

24

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

26

Cap

515176498

$12.99

27

Rubber Cap Protector

219800280

$19.49

28

Deep Black Console

517303923

$229.99

29

RH Air Deflector

517303604

$43.99

30

LH Air Deflector

517303605

$43.99

31

Windshield Support

517303607

$34.99

32

Deep Black, RH Panel

517304029

$211.99

33

Deep Black, LH Panel

517304030

$211.99

34

RH Panel Latch

517303612

$9.99

35

Grille

517303622

$31.99

37

Deep Black RH Moulding Panel

517303671

$28.99

39

Deep Black, LH Moulding Panel

517303673

$28.99

40

Grommet

517303756

$4.09

41

Windshield Support Kit

860200089

$22.99

42

LH Panel Latch

517303808

$11.49

43

PANEL_BODY RH B-160 - Call your local BRP dealership | Electric Start Models

517304210

Unavailable

44

CONSOLE B-160 - Call your local BRP dealership

517303924

Unavailable

45

CONSOLE B-160 - Call your local BRP dealership | 600HO

517303922

Unavailable

47

Black Latch Kit | Includes 390 to 400

860200239

$16.88

48

Panel Latch

517303981

$12.99

49

RH Panel Rear Foam

517304884

$19.99

50

LH Panel Center Foam

517304887

$27.99

51

LH Panel Lower Foam

517304888

$22.49

52

LH Panel Upper Foam

517304889

$21.99

53

LH Panel Rear Foam

517304890

$17.99

54

Foam

517304891

$21.99

59

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

$149.99

69

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

$149.99

79

Latch Support

517304221

$9.19

82

RH Center Foam

517304883

$43.99

83

Black, RH Console | Includes 400 to 400b

517304322

$35.99

86

Windshield 285 Ass'y | Includes 800 to 800b

517304390

$127.49

89

Windsheld Kit 375

860200478

$169.99

89

Windsheld 375mm | Deep Black

517304395

$148.99

90

Console Nut

517304518

$15.29

91

Deep Black Hood | Deep Black

517304530

$214.99

92

INDICATOR SUPPORT - Call your local BRP dealership

517305213

Unavailable

93

Hood Foam

517304913

$22.49

94

Adhesive Patch

518325560

$4.69

96

Push Nut

732610072

$2.19
