Description

Price

6

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.96

7

Hex. Flange Screw M6 X 20

207662034

$2.11

8

Hex. Nut M10 X 1.5

232006414

$1.37

9

Flange Elastic Nut M6

233261434

$4.44

10

Hex. Flange Elastic Nut M8

233281414

$1.47

11

Hex. Flange Screw M6 X 30 | International

210263050

$2.09

14

Bonded Washer

250200100

$2.11

20

Not Available As Spare Parts

XXX

Unavailable

21

O-Ring

293300122

$2.11

22

Tight Seal

293300130

$7.51

23

Ball Bearing

293350115

$12.11

26

Ball Bearing

293350059

$30.99

27

Ball Bearing

293350074

$38.49

33

Male Connector

414580700

$4.12

34

Oil Seal

293200158

$14.22

38

Sprocket, 19 Teeth

504153783

$111.49

38

Sprocket, 21 Teeth

504096200

$93.99

39

Circlip

504152282

$3.17

42

Oil Seal

293200159

$16.25

43

Circlip

504152572

$6.95

44

Circlip

504152576

$9.99

45

Kit Sprocket This part replaces 504152581.

861805539

$159.99

45

Kit Sprocket This part replaces 504152593.

861805538

$164.99

46

Circlip

504152582

$9.99

47

Adjustment Screw

504152602

$12.49

50

Magnetic Cap

504152619

$23.49

51

Shim

504152628

$10.99

52

Drive Chain, 102 Links

504152579

$153.49

52

Drive Chain, 104 Links

504152629

$179.99

53

Magnetic Plug 1/8 - 27 NPTF

504152636

$11.49

57

Tensioner chain

504153429

$15.99

58

Spring Washer M10

504152784

$7.65

63

Chenille 16X146*Track 16X146X2.25 This part replaces 504153014.

C9064M

$1.00

63

Track Ass'y 16" X 154" X 2.2"P

504153015

$1.00

64

Tensioner Axle

504152841

$16.34

65

Cap

504152860

$20.49

88

Rotation Sensor

504152896

$37.99

89

Retaining Ring

504153886

$21.99

90

Bearing Housing Ass'y | Includes 2500 to 2500a

504153418

$17.53

92

Not Available As Spare Parts

XXX

Unavailable

93

Slider Chain

504152739

$65.99

100

Chaincase Cover Ass'y | Includes 1700 to 1700c

504153147

$349.99

105

Chaincase

504153181

$349.99

106

Not Available As Spare Parts

XXX

Unavailable

113

Polyurethane Hose 10000Mm Long

219704410

$56.99

116

Plate | Not Shown

518325816

$79.99

122

Drive Axle Ass'y

504154054

$529.99

40a

Track Guide | Track Width 16''

415129528

$3.29

40a

Track Guide | Track Width 16''

415129528

$3.29

40b

Cleat

504152651

$9.69

40b

Cleat

504152651

$9.69

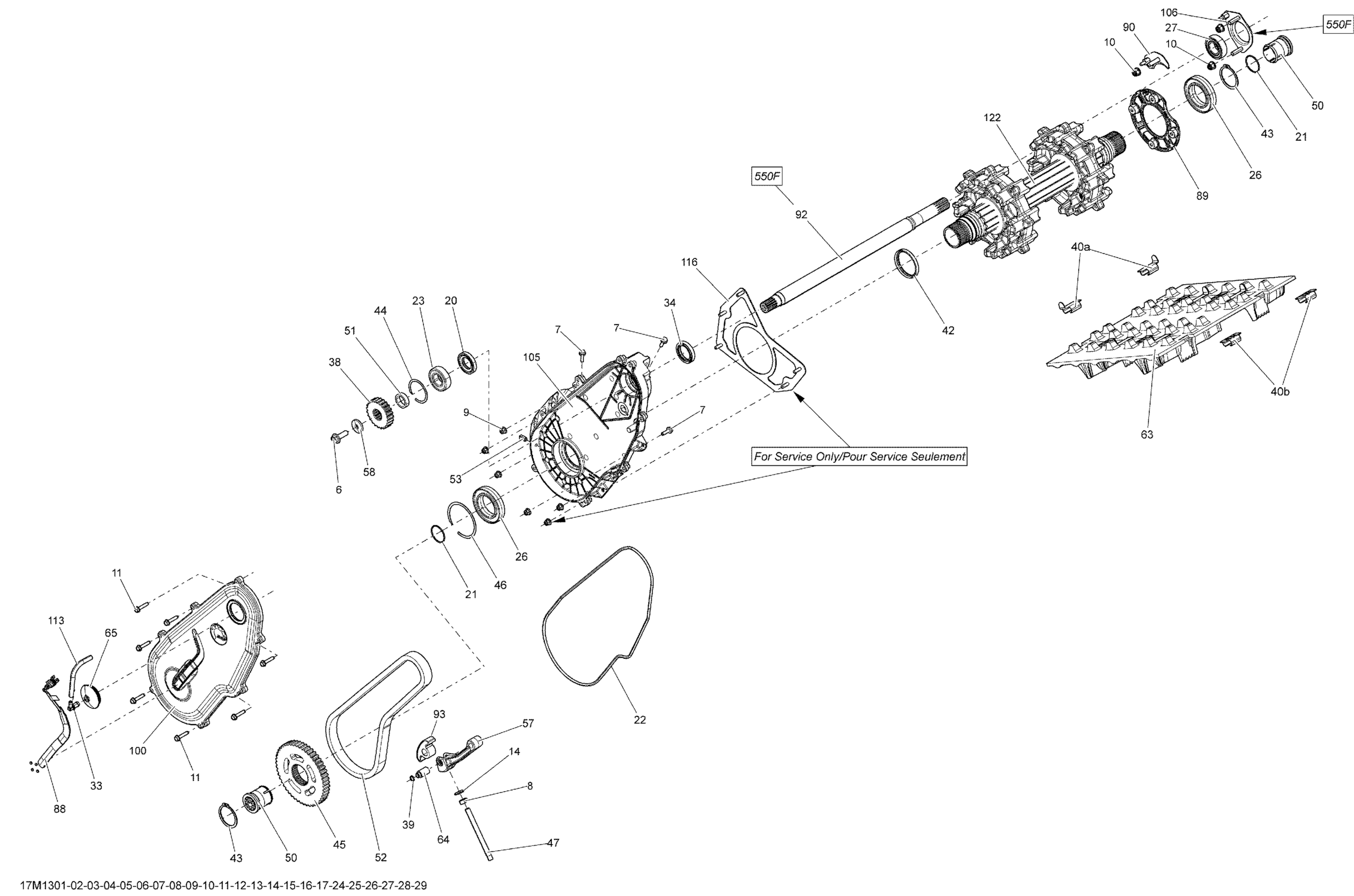

Ski-Doo SUMMIT SPORT 600, 2013 Drive System Diagram

Hex. Flange Screw M10 X 30, Scotch Grip

Hex. Flange Screw M6 X 20

Hex. Nut M10 X 1.5

Flange Elastic Nut M6

Hex. Flange Elastic Nut M8

Hex. Flange Screw M6 X 30 | International

Bonded Washer

Not Available As Spare Parts

O-Ring

Tight Seal

Ball Bearing

Ball Bearing

Ball Bearing

Male Connector

Oil Seal

Sprocket, 19 Teeth

Sprocket, 21 Teeth

Circlip

Oil Seal

Circlip

Circlip

Kit Sprocket This part replaces 504152581.

Kit Sprocket This part replaces 504152593.

Circlip

Adjustment Screw

Magnetic Cap

Shim

Drive Chain, 102 Links

Drive Chain, 104 Links

Magnetic Plug 1/8 - 27 NPTF

Tensioner chain

Spring Washer M10

Chenille 16X146*Track 16X146X2.25 This part replaces 504153014.

Track Ass'y 16" X 154" X 2.2"P

Tensioner Axle

Cap

Rotation Sensor

Retaining Ring

Bearing Housing Ass'y | Includes 2500 to 2500a

Not Available As Spare Parts

Slider Chain

Chaincase Cover Ass'y | Includes 1700 to 1700c

Chaincase

Not Available As Spare Parts

Polyurethane Hose 10000Mm Long

Plate | Not Shown

Drive Axle Ass'y

Track Guide | Track Width 16''

Track Guide | Track Width 16''

Cleat

Cleat
